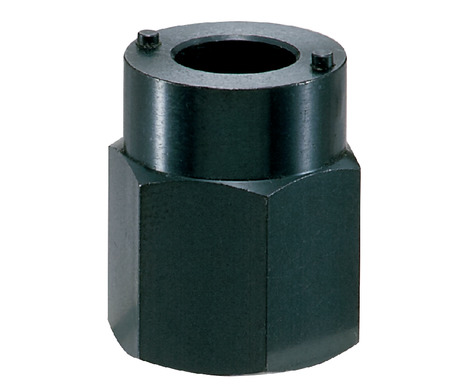

Specialty Wrenches for Ball Rollers

Name: BRW
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

BRW

Safety Precautions

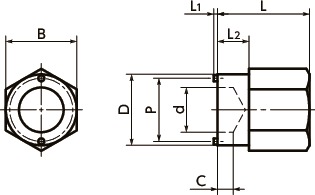

Dimension Drawing

Specs/CAD

Unit : mm

Part Number	L	L₁	L₂	B	C	D	d	P	Mass (g)	CAD Download	Cart
BRW-10	25	1.4	8	19	3	18.5	10	15.4	55	CAD	RFQ
BRW-12	30	1.4	10	24	4	22	12	18.5	102	CAD	RFQ
BRW-16	35	1.4	12	27	6	27	17	24	153	CAD	RFQ
BRW-20	40	1.4	14	30	7	33	20	29.6	220	CAD	RFQ

Characteristics

Install and remove by using BRW Specialty Wrench.

Product List

BRW

BRW-10
BRW-12
BRW-16
BRW-20
