  • Clamp Levers

LECM-6-C

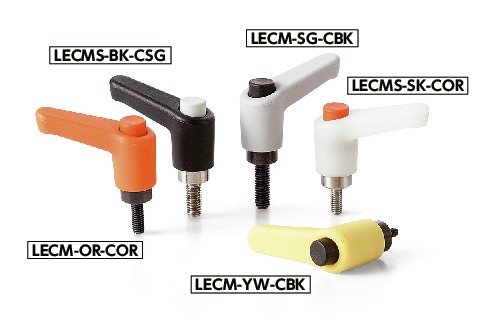

Clamp Lever - Miniature Type, Male Screw - with Push Button

Safety PrecautionsUsage

RoHS Compliant

LECM-CClamp Lever - Miniature Type, Male Screw - with Push Button

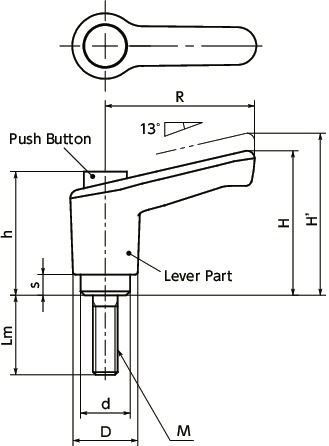

Dimension Drawing

LECM-CClamp Lever - Miniature Type, Male Screw - with Push Button寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M6
Lm
All
12
16
20
25
32
40
50
Lever Part
Color
All
SG
BK
OR
YW
SK

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch Lm R H H' h s D d Tooth No. Max. load
(N)		 Max. tightening force
(kN)		 Lever Part
Color		 Mass
(g)		 CAD
Download		 Cart
LECM-6-12-SG-CSG M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-16-SG-CSG M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-20-SG-CSG M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 17 CAD RFQ
LECM-6-25-SG-CSG M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 18 CAD RFQ
LECM-6-32-SG-CSG M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 19 CAD RFQ
LECM-6-40-SG-CSG M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 21 CAD RFQ
LECM-6-50-SG-CSG M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 22 CAD RFQ
LECM-6-12-SG-CBK M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-16-SG-CBK M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-20-SG-CBK M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 17 CAD RFQ
LECM-6-25-SG-CBK M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 18 CAD RFQ
LECM-6-32-SG-CBK M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 19 CAD RFQ
LECM-6-40-SG-CBK M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 21 CAD RFQ
LECM-6-50-SG-CBK M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 22 CAD RFQ
LECM-6-12-SG-COR M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-16-SG-COR M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-20-SG-COR M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 17 CAD RFQ
LECM-6-25-SG-COR M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 18 CAD RFQ
LECM-6-32-SG-COR M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 19 CAD RFQ
LECM-6-40-SG-COR M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 21 CAD RFQ
LECM-6-50-SG-COR M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 22 CAD RFQ
LECM-6-12-BK-CSG M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-16-BK-CSG M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-20-BK-CSG M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 17 CAD RFQ
LECM-6-25-BK-CSG M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 18 CAD RFQ
LECM-6-32-BK-CSG M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 19 CAD RFQ
LECM-6-40-BK-CSG M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 21 CAD RFQ
LECM-6-50-BK-CSG M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 22 CAD RFQ
LECM-6-12-BK-CBK M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-16-BK-CBK M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-20-BK-CBK M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 17 CAD RFQ
LECM-6-25-BK-CBK M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 18 CAD RFQ
LECM-6-32-BK-CBK M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 19 CAD RFQ
LECM-6-40-BK-CBK M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 21 CAD RFQ
LECM-6-50-BK-CBK M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 22 CAD RFQ
LECM-6-12-BK-COR M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-16-BK-COR M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-20-BK-COR M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 17 CAD RFQ
LECM-6-25-BK-COR M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 18 CAD RFQ
LECM-6-32-BK-COR M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 19 CAD RFQ
LECM-6-40-BK-COR M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 21 CAD RFQ
LECM-6-50-BK-COR M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 22 CAD RFQ
LECM-6-12-OR-CSG M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-16-OR-CSG M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-20-OR-CSG M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 17 CAD RFQ
LECM-6-25-OR-CSG M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 18 CAD RFQ
LECM-6-32-OR-CSG M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 19 CAD RFQ
LECM-6-40-OR-CSG M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 21 CAD RFQ
LECM-6-50-OR-CSG M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 22 CAD RFQ
LECM-6-12-OR-CBK M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-16-OR-CBK M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-20-OR-CBK M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 17 CAD RFQ
LECM-6-25-OR-CBK M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 18 CAD RFQ
LECM-6-32-OR-CBK M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 19 CAD RFQ
LECM-6-40-OR-CBK M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 21 CAD RFQ
LECM-6-50-OR-CBK M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 22 CAD RFQ
LECM-6-12-OR-COR M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-16-OR-COR M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-20-OR-COR M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 17 CAD RFQ
LECM-6-25-OR-COR M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 18 CAD RFQ
LECM-6-32-OR-COR M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 19 CAD RFQ
LECM-6-40-OR-COR M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 21 CAD RFQ
LECM-6-50-OR-COR M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 22 CAD RFQ
LECM-6-12-YW-CSG M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-16-YW-CSG M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-20-YW-CSG M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 17 CAD RFQ
LECM-6-25-YW-CSG M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 18 CAD RFQ
LECM-6-32-YW-CSG M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 19 CAD RFQ
LECM-6-40-YW-CSG M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 21 CAD RFQ
LECM-6-50-YW-CSG M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 22 CAD RFQ
LECM-6-12-YW-CBK M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-16-YW-CBK M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-20-YW-CBK M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 17 CAD RFQ
LECM-6-25-YW-CBK M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 18 CAD RFQ
LECM-6-32-YW-CBK M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 19 CAD RFQ
LECM-6-40-YW-CBK M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 21 CAD RFQ
LECM-6-50-YW-CBK M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 22 CAD RFQ
LECM-6-12-YW-COR M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-16-YW-COR M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-20-YW-COR M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 17 CAD RFQ
LECM-6-25-YW-COR M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 18 CAD RFQ
LECM-6-32-YW-COR M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 19 CAD RFQ
LECM-6-40-YW-COR M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 21 CAD RFQ
LECM-6-50-YW-COR M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 22 CAD RFQ
LECM-6-12-SK-CSG M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-16-SK-CSG M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-20-SK-CSG M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 17 CAD RFQ
LECM-6-25-SK-CSG M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 18 CAD RFQ
LECM-6-32-SK-CSG M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 19 CAD RFQ
LECM-6-40-SK-CSG M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 21 CAD RFQ
LECM-6-50-SK-CSG M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 22 CAD RFQ
LECM-6-12-SK-CBK M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-16-SK-CBK M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-20-SK-CBK M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 17 CAD RFQ
LECM-6-25-SK-CBK M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 18 CAD RFQ
LECM-6-32-SK-CBK M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 19 CAD RFQ
LECM-6-40-SK-CBK M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 21 CAD RFQ
LECM-6-50-SK-CBK M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 22 CAD RFQ
LECM-6-12-SK-COR M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-16-SK-COR M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-20-SK-COR M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 17 CAD RFQ
LECM-6-25-SK-COR M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 18 CAD RFQ
LECM-6-32-SK-COR M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 19 CAD RFQ
LECM-6-40-SK-COR M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 21 CAD RFQ
LECM-6-50-SK-COR M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 22 CAD RFQ
Part Number M (Coarse)
Nominal of Thread		 Pitch Lm R H H' h s D d Tooth No. Max. load
(N)		 Max. tightening force
(kN)		 Lever Part
Color		 Mass
(g)		 CAD
Download		 Cart
LECM-6-12-SG-CSG M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-16-SG-CSG M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-20-SG-CSG M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 17 CAD RFQ
LECM-6-25-SG-CSG M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 18 CAD RFQ
LECM-6-32-SG-CSG M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 19 CAD RFQ
LECM-6-40-SG-CSG M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 21 CAD RFQ
LECM-6-50-SG-CSG M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 22 CAD RFQ
LECM-6-12-SG-CBK M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-16-SG-CBK M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-20-SG-CBK M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 17 CAD RFQ
LECM-6-25-SG-CBK M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 18 CAD RFQ
LECM-6-32-SG-CBK M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 19 CAD RFQ
LECM-6-40-SG-CBK M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 21 CAD RFQ
LECM-6-50-SG-CBK M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 22 CAD RFQ
LECM-6-12-SG-COR M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-16-SG-COR M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-20-SG-COR M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 17 CAD RFQ
LECM-6-25-SG-COR M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 18 CAD RFQ
LECM-6-32-SG-COR M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 19 CAD RFQ
LECM-6-40-SG-COR M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 21 CAD RFQ
LECM-6-50-SG-COR M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 22 CAD RFQ
LECM-6-12-BK-CSG M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-16-BK-CSG M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-20-BK-CSG M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 17 CAD RFQ
LECM-6-25-BK-CSG M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 18 CAD RFQ
LECM-6-32-BK-CSG M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 19 CAD RFQ
LECM-6-40-BK-CSG M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 21 CAD RFQ
LECM-6-50-BK-CSG M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 22 CAD RFQ
LECM-6-12-BK-CBK M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-16-BK-CBK M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-20-BK-CBK M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 17 CAD RFQ
LECM-6-25-BK-CBK M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 18 CAD RFQ
LECM-6-32-BK-CBK M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 19 CAD RFQ
LECM-6-40-BK-CBK M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 21 CAD RFQ
LECM-6-50-BK-CBK M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 22 CAD RFQ
LECM-6-12-BK-COR M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-16-BK-COR M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-20-BK-COR M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 17 CAD RFQ
LECM-6-25-BK-COR M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 18 CAD RFQ
LECM-6-32-BK-COR M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 19 CAD RFQ
LECM-6-40-BK-COR M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 21 CAD RFQ
LECM-6-50-BK-COR M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 22 CAD RFQ
LECM-6-12-OR-CSG M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-16-OR-CSG M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-20-OR-CSG M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 17 CAD RFQ
LECM-6-25-OR-CSG M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 18 CAD RFQ
LECM-6-32-OR-CSG M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 19 CAD RFQ
LECM-6-40-OR-CSG M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 21 CAD RFQ
LECM-6-50-OR-CSG M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 22 CAD RFQ
LECM-6-12-OR-CBK M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-16-OR-CBK M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-20-OR-CBK M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 17 CAD RFQ
LECM-6-25-OR-CBK M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 18 CAD RFQ
LECM-6-32-OR-CBK M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 19 CAD RFQ
LECM-6-40-OR-CBK M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 21 CAD RFQ
LECM-6-50-OR-CBK M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 22 CAD RFQ
LECM-6-12-OR-COR M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-16-OR-COR M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-20-OR-COR M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 17 CAD RFQ
LECM-6-25-OR-COR M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 18 CAD RFQ
LECM-6-32-OR-COR M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 19 CAD RFQ
LECM-6-40-OR-COR M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 21 CAD RFQ
LECM-6-50-OR-COR M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 22 CAD RFQ
LECM-6-12-YW-CSG M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-16-YW-CSG M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-20-YW-CSG M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 17 CAD RFQ
LECM-6-25-YW-CSG M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 18 CAD RFQ
LECM-6-32-YW-CSG M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 19 CAD RFQ
LECM-6-40-YW-CSG M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 21 CAD RFQ
LECM-6-50-YW-CSG M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 22 CAD RFQ
LECM-6-12-YW-CBK M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-16-YW-CBK M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-20-YW-CBK M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 17 CAD RFQ
LECM-6-25-YW-CBK M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 18 CAD RFQ
LECM-6-32-YW-CBK M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 19 CAD RFQ
LECM-6-40-YW-CBK M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 21 CAD RFQ
LECM-6-50-YW-CBK M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 22 CAD RFQ
LECM-6-12-YW-COR M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-16-YW-COR M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-20-YW-COR M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 17 CAD RFQ
LECM-6-25-YW-COR M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 18 CAD RFQ
LECM-6-32-YW-COR M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 19 CAD RFQ
LECM-6-40-YW-COR M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 21 CAD RFQ
LECM-6-50-YW-COR M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 22 CAD RFQ
LECM-6-12-SK-CSG M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-16-SK-CSG M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-20-SK-CSG M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 17 CAD RFQ
LECM-6-25-SK-CSG M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 18 CAD RFQ
LECM-6-32-SK-CSG M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 19 CAD RFQ
LECM-6-40-SK-CSG M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 21 CAD RFQ
LECM-6-50-SK-CSG M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 22 CAD RFQ
LECM-6-12-SK-CBK M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-16-SK-CBK M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-20-SK-CBK M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 17 CAD RFQ
LECM-6-25-SK-CBK M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 18 CAD RFQ
LECM-6-32-SK-CBK M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 19 CAD RFQ
LECM-6-40-SK-CBK M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 21 CAD RFQ
LECM-6-50-SK-CBK M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 22 CAD RFQ
LECM-6-12-SK-COR M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-16-SK-COR M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-20-SK-COR M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 17 CAD RFQ
LECM-6-25-SK-COR M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 18 CAD RFQ
LECM-6-32-SK-COR M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 19 CAD RFQ
LECM-6-40-SK-COR M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 21 CAD RFQ
LECM-6-50-SK-COR M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 22 CAD RFQ
Part Number M (Coarse)
Nominal of Thread		 Pitch Lm R H H' h s D d Tooth No. Max. load
(N)		 Max. tightening force
(kN)		 Lever Part
Color		 Mass
(g)		 CAD
Download		 Cart
LECM-6-12-SG-CSG M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-16-SG-CSG M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-20-SG-CSG M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 17 CAD RFQ
LECM-6-25-SG-CSG M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 18 CAD RFQ
LECM-6-32-SG-CSG M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 19 CAD RFQ
LECM-6-40-SG-CSG M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 21 CAD RFQ
LECM-6-50-SG-CSG M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 22 CAD RFQ
LECM-6-12-SG-CBK M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-16-SG-CBK M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-20-SG-CBK M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 17 CAD RFQ
LECM-6-25-SG-CBK M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 18 CAD RFQ
LECM-6-32-SG-CBK M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 19 CAD RFQ
LECM-6-40-SG-CBK M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 21 CAD RFQ
LECM-6-50-SG-CBK M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 22 CAD RFQ
LECM-6-12-SG-COR M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-16-SG-COR M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-20-SG-COR M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 17 CAD RFQ
LECM-6-25-SG-COR M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 18 CAD RFQ
LECM-6-32-SG-COR M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 19 CAD RFQ
LECM-6-40-SG-COR M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 21 CAD RFQ
LECM-6-50-SG-COR M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 22 CAD RFQ
LECM-6-12-BK-CSG M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-16-BK-CSG M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-20-BK-CSG M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 17 CAD RFQ
LECM-6-25-BK-CSG M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 18 CAD RFQ
LECM-6-32-BK-CSG M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 19 CAD RFQ
LECM-6-40-BK-CSG M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 21 CAD RFQ
LECM-6-50-BK-CSG M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 22 CAD RFQ
LECM-6-12-BK-CBK M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-16-BK-CBK M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-20-BK-CBK M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 17 CAD RFQ
LECM-6-25-BK-CBK M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 18 CAD RFQ
LECM-6-32-BK-CBK M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 19 CAD RFQ
LECM-6-40-BK-CBK M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 21 CAD RFQ
LECM-6-50-BK-CBK M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 22 CAD RFQ
LECM-6-12-BK-COR M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-16-BK-COR M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-20-BK-COR M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 17 CAD RFQ
LECM-6-25-BK-COR M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 18 CAD RFQ
LECM-6-32-BK-COR M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 19 CAD RFQ
LECM-6-40-BK-COR M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 21 CAD RFQ
LECM-6-50-BK-COR M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 22 CAD RFQ
LECM-6-12-OR-CSG M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-16-OR-CSG M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-20-OR-CSG M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 17 CAD RFQ
LECM-6-25-OR-CSG M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 18 CAD RFQ
LECM-6-32-OR-CSG M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 19 CAD RFQ
LECM-6-40-OR-CSG M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 21 CAD RFQ
LECM-6-50-OR-CSG M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 22 CAD RFQ
LECM-6-12-OR-CBK M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-16-OR-CBK M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-20-OR-CBK M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 17 CAD RFQ
LECM-6-25-OR-CBK M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 18 CAD RFQ
LECM-6-32-OR-CBK M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 19 CAD RFQ
LECM-6-40-OR-CBK M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 21 CAD RFQ
LECM-6-50-OR-CBK M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 22 CAD RFQ
LECM-6-12-OR-COR M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-16-OR-COR M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-20-OR-COR M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 17 CAD RFQ
LECM-6-25-OR-COR M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 18 CAD RFQ
LECM-6-32-OR-COR M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 19 CAD RFQ
LECM-6-40-OR-COR M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 21 CAD RFQ
LECM-6-50-OR-COR M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 22 CAD RFQ
LECM-6-12-YW-CSG M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-16-YW-CSG M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-20-YW-CSG M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 17 CAD RFQ
LECM-6-25-YW-CSG M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 18 CAD RFQ
LECM-6-32-YW-CSG M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 19 CAD RFQ
LECM-6-40-YW-CSG M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 21 CAD RFQ
LECM-6-50-YW-CSG M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 22 CAD RFQ
LECM-6-12-YW-CBK M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-16-YW-CBK M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-20-YW-CBK M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 17 CAD RFQ
LECM-6-25-YW-CBK M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 18 CAD RFQ
LECM-6-32-YW-CBK M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 19 CAD RFQ
LECM-6-40-YW-CBK M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 21 CAD RFQ
LECM-6-50-YW-CBK M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 22 CAD RFQ
LECM-6-12-YW-COR M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-16-YW-COR M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-20-YW-COR M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 17 CAD RFQ
LECM-6-25-YW-COR M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 18 CAD RFQ
LECM-6-32-YW-COR M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 19 CAD RFQ
LECM-6-40-YW-COR M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 21 CAD RFQ
LECM-6-50-YW-COR M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 22 CAD RFQ
LECM-6-12-SK-CSG M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-16-SK-CSG M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-20-SK-CSG M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 17 CAD RFQ
LECM-6-25-SK-CSG M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 18 CAD RFQ
LECM-6-32-SK-CSG M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 19 CAD RFQ
LECM-6-40-SK-CSG M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 21 CAD RFQ
LECM-6-50-SK-CSG M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 22 CAD RFQ
LECM-6-12-SK-CBK M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-16-SK-CBK M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-20-SK-CBK M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 17 CAD RFQ
LECM-6-25-SK-CBK M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 18 CAD RFQ
LECM-6-32-SK-CBK M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 19 CAD RFQ
LECM-6-40-SK-CBK M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 21 CAD RFQ
LECM-6-50-SK-CBK M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 22 CAD RFQ
LECM-6-12-SK-COR M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-16-SK-COR M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-20-SK-COR M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 17 CAD RFQ
LECM-6-25-SK-COR M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 18 CAD RFQ
LECM-6-32-SK-COR M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 19 CAD RFQ
LECM-6-40-SK-COR M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 21 CAD RFQ
LECM-6-50-SK-COR M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 22 CAD RFQ
Part Number M (Coarse)
Nominal of Thread		 Pitch Lm R H H' h s D d Tooth No. Max. load
(N)		 Max. tightening force
(kN)		 Lever Part
Color		 Mass
(g)		 CAD
Download		 Cart
LECM-6-12-SG-CSG M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-16-SG-CSG M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-20-SG-CSG M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 17 CAD RFQ
LECM-6-25-SG-CSG M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 18 CAD RFQ
LECM-6-32-SG-CSG M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 19 CAD RFQ
LECM-6-40-SG-CSG M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 21 CAD RFQ
LECM-6-50-SG-CSG M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 22 CAD RFQ
LECM-6-12-SG-CBK M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-16-SG-CBK M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-20-SG-CBK M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 17 CAD RFQ
LECM-6-25-SG-CBK M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 18 CAD RFQ
LECM-6-32-SG-CBK M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 19 CAD RFQ
LECM-6-40-SG-CBK M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 21 CAD RFQ
LECM-6-50-SG-CBK M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 22 CAD RFQ
LECM-6-12-SG-COR M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-16-SG-COR M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 16 CAD RFQ
LECM-6-20-SG-COR M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 17 CAD RFQ
LECM-6-25-SG-COR M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 18 CAD RFQ
LECM-6-32-SG-COR M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 19 CAD RFQ
LECM-6-40-SG-COR M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 21 CAD RFQ
LECM-6-50-SG-COR M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SG 22 CAD RFQ
LECM-6-12-BK-CSG M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-16-BK-CSG M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-20-BK-CSG M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 17 CAD RFQ
LECM-6-25-BK-CSG M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 18 CAD RFQ
LECM-6-32-BK-CSG M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 19 CAD RFQ
LECM-6-40-BK-CSG M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 21 CAD RFQ
LECM-6-50-BK-CSG M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 22 CAD RFQ
LECM-6-12-BK-CBK M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-16-BK-CBK M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-20-BK-CBK M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 17 CAD RFQ
LECM-6-25-BK-CBK M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 18 CAD RFQ
LECM-6-32-BK-CBK M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 19 CAD RFQ
LECM-6-40-BK-CBK M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 21 CAD RFQ
LECM-6-50-BK-CBK M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 22 CAD RFQ
LECM-6-12-BK-COR M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-16-BK-COR M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 16 CAD RFQ
LECM-6-20-BK-COR M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 17 CAD RFQ
LECM-6-25-BK-COR M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 18 CAD RFQ
LECM-6-32-BK-COR M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 19 CAD RFQ
LECM-6-40-BK-COR M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 21 CAD RFQ
LECM-6-50-BK-COR M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 BK 22 CAD RFQ
LECM-6-12-OR-CSG M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-16-OR-CSG M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-20-OR-CSG M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 17 CAD RFQ
LECM-6-25-OR-CSG M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 18 CAD RFQ
LECM-6-32-OR-CSG M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 19 CAD RFQ
LECM-6-40-OR-CSG M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 21 CAD RFQ
LECM-6-50-OR-CSG M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 22 CAD RFQ
LECM-6-12-OR-CBK M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-16-OR-CBK M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-20-OR-CBK M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 17 CAD RFQ
LECM-6-25-OR-CBK M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 18 CAD RFQ
LECM-6-32-OR-CBK M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 19 CAD RFQ
LECM-6-40-OR-CBK M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 21 CAD RFQ
LECM-6-50-OR-CBK M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 22 CAD RFQ
LECM-6-12-OR-COR M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-16-OR-COR M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 16 CAD RFQ
LECM-6-20-OR-COR M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 17 CAD RFQ
LECM-6-25-OR-COR M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 18 CAD RFQ
LECM-6-32-OR-COR M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 19 CAD RFQ
LECM-6-40-OR-COR M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 21 CAD RFQ
LECM-6-50-OR-COR M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 OR 22 CAD RFQ
LECM-6-12-YW-CSG M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-16-YW-CSG M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-20-YW-CSG M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 17 CAD RFQ
LECM-6-25-YW-CSG M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 18 CAD RFQ
LECM-6-32-YW-CSG M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 19 CAD RFQ
LECM-6-40-YW-CSG M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 21 CAD RFQ
LECM-6-50-YW-CSG M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 22 CAD RFQ
LECM-6-12-YW-CBK M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-16-YW-CBK M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-20-YW-CBK M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 17 CAD RFQ
LECM-6-25-YW-CBK M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 18 CAD RFQ
LECM-6-32-YW-CBK M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 19 CAD RFQ
LECM-6-40-YW-CBK M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 21 CAD RFQ
LECM-6-50-YW-CBK M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 22 CAD RFQ
LECM-6-12-YW-COR M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-16-YW-COR M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 16 CAD RFQ
LECM-6-20-YW-COR M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 17 CAD RFQ
LECM-6-25-YW-COR M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 18 CAD RFQ
LECM-6-32-YW-COR M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 19 CAD RFQ
LECM-6-40-YW-COR M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 21 CAD RFQ
LECM-6-50-YW-COR M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 YW 22 CAD RFQ
LECM-6-12-SK-CSG M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-16-SK-CSG M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-20-SK-CSG M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 17 CAD RFQ
LECM-6-25-SK-CSG M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 18 CAD RFQ
LECM-6-32-SK-CSG M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 19 CAD RFQ
LECM-6-40-SK-CSG M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 21 CAD RFQ
LECM-6-50-SK-CSG M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 22 CAD RFQ
LECM-6-12-SK-CBK M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-16-SK-CBK M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-20-SK-CBK M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 17 CAD RFQ
LECM-6-25-SK-CBK M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 18 CAD RFQ
LECM-6-32-SK-CBK M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 19 CAD RFQ
LECM-6-40-SK-CBK M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 21 CAD RFQ
LECM-6-50-SK-CBK M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 22 CAD RFQ
LECM-6-12-SK-COR M6 1 12 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-16-SK-COR M6 1 16 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 16 CAD RFQ
LECM-6-20-SK-COR M6 1 20 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 17 CAD RFQ
LECM-6-25-SK-COR M6 1 25 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 18 CAD RFQ
LECM-6-32-SK-COR M6 1 32 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 19 CAD RFQ
LECM-6-40-SK-COR M6 1 40 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 21 CAD RFQ
LECM-6-50-SK-COR M6 1 50 30 29 32.5 24 4.2 13 10 18 110 3.8 SK 22 CAD RFQ

Material/Finish

LECM-C
Lever Part Nylon 6 (Various Color)
Thread Part SUM22L
Ferrosoferric Oxide Film (Black)
Push Button Nylon 6 (Various Color)
Serration Ring (Insert) Zinc Die Cast
Spring Stainless Steel Wire or SWPB

Characteristics

  • A clamp lever - miniature type with push button. Male screw type.
  • When the lever part is pulled up for position adjustment, the force is easily transmitted to help the operation if a push button is available.
  • The product development was conducted with LCA, Life Cycle Assessment, in consideration for environmental load, especially for global warming.
  • Greenhouse effect gas emission is reduced by 6.5 % compared to conventional products.
  • A serration ring made of zinc die cast is inserted into the lever body made of plastic. They also realize sufficient strength for fitting with metal thread serration.
  • There are two types of thread part materials:
    LECM-C----Made of steel
    LECMS-C----Made of stainless steel
  • Five color variations for the lever part and three for the push button are available. They can be selected by the symbol of the part number.
  • Color variations of the lever part
Symbol Lever Part Color
BK Matte black
SG Matte silver
OR Matte orange
YW Matte yellow
SK Matte Transparent
  • Operation Button Color Variations
Symbol Operation Button Color
CBK Matte black
CSG Matte silver
COR Matte orange

Only takes a minute to understand! How to Use Clamp Levers.

Related Products

SWAS-PPK washers suitable for positioning and fixing slide mechanisms using slotted holes are available. SWAS-PPK

LECM-CClamp Levers - Miniature Type, Male Screw - with Push Button


Related Services

Product List

LECM-3-C

LECM-4-C

LECM-5-C

LECM-6-C

Click here to see LECM-C

LECM-3-C

Part Name

Clamp Lever - Miniature Type, Male Screw - with Push Button

Part Number

LECM-3-C

Feature

Mini
Lightweight
Easy Operation with Button
Giving Care to Global Warming

LECM-4-C

Part Name

Clamp Lever - Miniature Type, Male Screw - with Push Button

Part Number

LECM-4-C

Feature

Mini
Lightweight
Easy Operation with Button
Giving Care to Global Warming

LECM-5-C

Part Name

Clamp Lever - Miniature Type, Male Screw - with Push Button

Part Number

LECM-5-C

Feature

Mini
Lightweight
Easy Operation with Button
Giving Care to Global Warming

Click here to see Clamp Levers

LEFE

Part Name

Plastic Clamp Lever, Female Screw

Part Number

LEFE

Feature

Lightweight
Electroless Nickel Plating
Good Design Award

LECM-LW

Part Name

Miniature Plastic Clamp Levers - Plain Washer Integrated Type

Part Number

LECM-LW

Feature

Integrated Plain Washers
Miniature
Lightweight
With Consideration for Global Warming

LECM-W

Part Name

Miniature Plastic Clamp Levers - Spring Washer Integrated Type

Part Number

LECM-W

Feature

Integrated Spring Washers
Miniature
Lightweight
With Consideration for Global Warming

LECMS

Part Name

Plastic Clamp Lever - Miniature Type, Male Screw

Part Number

LECMS

Feature

Mini
Lightweight
Giving care to Global Warming
