Plastic Clamp Lever, Male Screw

LEM

Safety PrecautionsUsage

RoHS Compliant

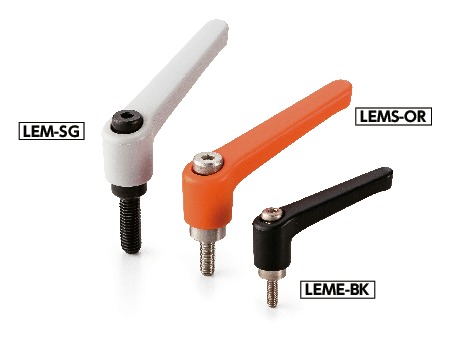

LEMPlastic Clamp Levers, Male Screw

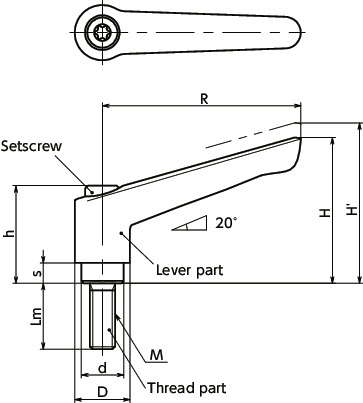

Dimension Drawing

LEMPlastic Clamp Levers, Male Screw寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M3
M4
M5
M6
M8
M10
M12
M16
Lm
All
6
8
10
12
16
20
25
32
40
50
63
80
Body
Color
All
BK
OR
SG

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch Lm R H H' h s D d Tooth No. Max. Load＊1
(N)		 Max. Clamping Force＊1
(kN)		 Mass
(g)		 Body
Color		 CAD
Download		 Cart
LEM-3-6-BK M3 0.5 6 45 35.5 39 24.5 4.2 13 10 18 9 0.95 15 BK CAD RFQ
LEM-3-6-OR M3 0.5 6 45 35.5 39 24.5 4.2 13 10 18 9 0.95 15 OR CAD RFQ
LEM-3-6-SG M3 0.5 6 45 35.5 39 24.5 4.2 13 10 18 9 0.95 15 SG CAD RFQ
LEM-3-8-BK M3 0.5 8 45 35.5 39 24.5 4.2 13 10 18 9 0.95 15 BK CAD RFQ
LEM-3-8-OR M3 0.5 8 45 35.5 39 24.5 4.2 13 10 18 9 0.95 15 OR CAD RFQ
LEM-3-8-SG M3 0.5 8 45 35.5 39 24.5 4.2 13 10 18 9 0.95 15 SG CAD RFQ
LEM-3-10-BK M3 0.5 10 45 35.5 39 24.5 4.2 13 10 18 9 0.95 15 BK CAD RFQ
LEM-3-10-OR M3 0.5 10 45 35.5 39 24.5 4.2 13 10 18 9 0.95 15 OR CAD RFQ
LEM-3-10-SG M3 0.5 10 45 35.5 39 24.5 4.2 13 10 18 9 0.95 15 SG CAD RFQ
LEM-3-12-BK M3 0.5 12 45 35.5 39 24.5 4.2 13 10 18 9 0.95 15 BK CAD RFQ
LEM-3-12-OR M3 0.5 12 45 35.5 39 24.5 4.2 13 10 18 9 0.95 15 OR CAD RFQ
LEM-3-12-SG M3 0.5 12 45 35.5 39 24.5 4.2 13 10 18 9 0.95 15 SG CAD RFQ
LEM-3-16-BK M3 0.5 16 45 35.5 39 24.5 4.2 13 10 18 9 0.95 15 BK CAD RFQ
LEM-3-16-OR M3 0.5 16 45 35.5 39 24.5 4.2 13 10 18 9 0.95 15 OR CAD RFQ
LEM-3-16-SG M3 0.5 16 45 35.5 39 24.5 4.2 13 10 18 9 0.95 15 SG CAD RFQ
LEM-4-10-BK M4 0.7 10 45 35.5 39 24.5 4.2 13 10 18 21 1.7 15 BK CAD RFQ
LEM-4-10-OR M4 0.7 10 45 35.5 39 24.5 4.2 13 10 18 21 1.7 15 OR CAD RFQ
LEM-4-10-SG M4 0.7 10 45 35.5 39 24.5 4.2 13 10 18 21 1.7 15 SG CAD RFQ
LEM-4-12-BK M4 0.7 12 45 35.5 39 24.5 4.2 13 10 18 21 1.7 15 BK CAD RFQ
LEM-4-12-OR M4 0.7 12 45 35.5 39 24.5 4.2 13 10 18 21 1.7 15 OR CAD RFQ
LEM-4-12-SG M4 0.7 12 45 35.5 39 24.5 4.2 13 10 18 21 1.7 15 SG CAD RFQ
LEM-4-16-BK M4 0.7 16 45 35.5 39 24.5 4.2 13 10 18 21 1.7 15 BK CAD RFQ
LEM-4-16-OR M4 0.7 16 45 35.5 39 24.5 4.2 13 10 18 21 1.7 15 OR CAD RFQ
LEM-4-16-SG M4 0.7 16 45 35.5 39 24.5 4.2 13 10 18 21 1.7 15 SG CAD RFQ
LEM-4-20-BK M4 0.7 20 45 35.5 39 24.5 4.2 13 10 18 21 1.7 15 BK CAD RFQ
LEM-4-20-OR M4 0.7 20 45 35.5 39 24.5 4.2 13 10 18 21 1.7 15 OR CAD RFQ
LEM-4-20-SG M4 0.7 20 45 35.5 39 24.5 4.2 13 10 18 21 1.7 15 SG CAD RFQ
LEM-4-25-BK M4 0.7 25 45 35.5 39 24.5 4.2 13 10 18 21 1.7 16 BK CAD RFQ
LEM-4-25-OR M4 0.7 25 45 35.5 39 24.5 4.2 13 10 18 21 1.7 16 OR CAD RFQ
LEM-4-25-SG M4 0.7 25 45 35.5 39 24.5 4.2 13 10 18 21 1.7 16 SG CAD RFQ
LEM-4-32-BK M4 0.7 32 45 35.5 39 24.5 4.2 13 10 18 21 1.7 16 BK CAD RFQ
LEM-4-32-OR M4 0.7 32 45 35.5 39 24.5 4.2 13 10 18 21 1.7 16 OR CAD RFQ
LEM-4-32-SG M4 0.7 32 45 35.5 39 24.5 4.2 13 10 18 21 1.7 16 SG CAD RFQ
LEM-5-12-BK M5 0.8 12 45 35.5 39 24.5 4.2 13 10 18 42 2.7 16 BK CAD RFQ
LEM-5-12-OR M5 0.8 12 45 35.5 39 24.5 4.2 13 10 18 42 2.7 16 OR CAD RFQ
LEM-5-12-SG M5 0.8 12 45 35.5 39 24.5 4.2 13 10 18 42 2.7 16 SG CAD RFQ
LEM-5-16-BK M5 0.8 16 45 35.5 39 24.5 4.2 13 10 18 42 2.7 16 BK CAD RFQ
LEM-5-16-OR M5 0.8 16 45 35.5 39 24.5 4.2 13 10 18 42 2.7 16 OR CAD RFQ
LEM-5-16-SG M5 0.8 16 45 35.5 39 24.5 4.2 13 10 18 42 2.7 16 SG CAD RFQ
LEM-5-20-BK M5 0.8 20 45 35.5 39 24.5 4.2 13 10 18 42 2.7 16 BK CAD RFQ
LEM-5-20-OR M5 0.8 20 45 35.5 39 24.5 4.2 13 10 18 42 2.7 16 OR CAD RFQ
LEM-5-20-SG M5 0.8 20 45 35.5 39 24.5 4.2 13 10 18 42 2.7 16 SG CAD RFQ
LEM-5-25-BK M5 0.8 25 45 35.5 39 24.5 4.2 13 10 18 42 2.7 17 BK CAD RFQ
LEM-5-25-OR M5 0.8 25 45 35.5 39 24.5 4.2 13 10 18 42 2.7 17 OR CAD RFQ
LEM-5-25-SG M5 0.8 25 45 35.5 39 24.5 4.2 13 10 18 42 2.7 17 SG CAD RFQ
LEM-5-32-BK M5 0.8 32 45 35.5 39 24.5 4.2 13 10 18 42 2.7 18 BK CAD RFQ
LEM-5-32-OR M5 0.8 32 45 35.5 39 24.5 4.2 13 10 18 42 2.7 18 OR CAD RFQ
LEM-5-32-SG M5 0.8 32 45 35.5 39 24.5 4.2 13 10 18 42 2.7 18 SG CAD RFQ
LEM-5-40-BK M5 0.8 40 45 35.5 39 24.5 4.2 13 10 18 42 2.7 19 BK CAD RFQ
LEM-5-40-OR M5 0.8 40 45 35.5 39 24.5 4.2 13 10 18 42 2.7 19 OR CAD RFQ
LEM-5-40-SG M5 0.8 40 45 35.5 39 24.5 4.2 13 10 18 42 2.7 19 SG CAD RFQ
LEM-5-50-BK M5 0.8 50 45 35.5 39 24.5 4.2 13 10 18 42 2.7 20 BK CAD RFQ
LEM-5-50-OR M5 0.8 50 45 35.5 39 24.5 4.2 13 10 18 42 2.7 20 OR CAD RFQ
LEM-5-50-SG M5 0.8 50 45 35.5 39 24.5 4.2 13 10 18 42 2.7 20 SG CAD RFQ
LEM-6-12-BK M6 1 12 45 35.5 39 24.5 4.2 13 10 18 70 3.8 16 BK CAD RFQ
LEM-6-12-OR M6 1 12 45 35.5 39 24.5 4.2 13 10 18 70 3.8 16 OR CAD RFQ
LEM-6-12-SG M6 1 12 45 35.5 39 24.5 4.2 13 10 18 70 3.8 16 SG CAD RFQ
LEM-6-16-BK M6 1 16 45 35.5 39 24.5 4.2 13 10 18 70 3.8 16 BK CAD RFQ
LEM-6-16-OR M6 1 16 45 35.5 39 24.5 4.2 13 10 18 70 3.8 16 OR CAD RFQ
LEM-6-16-SG M6 1 16 45 35.5 39 24.5 4.2 13 10 18 70 3.8 16 SG CAD RFQ
LEM-6-20-BK M6 1 20 45 35.5 39 24.5 4.2 13 10 18 70 3.8 17 BK CAD RFQ
LEM-6-20-OR M6 1 20 45 35.5 39 24.5 4.2 13 10 18 70 3.8 17 OR CAD RFQ
LEM-6-20-SG M6 1 20 45 35.5 39 24.5 4.2 13 10 18 70 3.8 17 SG CAD RFQ
LEM-6-25-BK M6 1 25 45 35.5 39 24.5 4.2 13 10 18 70 3.8 18 BK CAD RFQ
LEM-6-25-OR M6 1 25 45 35.5 39 24.5 4.2 13 10 18 70 3.8 18 OR CAD RFQ
LEM-6-25-SG M6 1 25 45 35.5 39 24.5 4.2 13 10 18 70 3.8 18 SG CAD RFQ
LEM-6-32-BK M6 1 32 45 35.5 39 24.5 4.2 13 10 18 70 3.8 19 BK CAD RFQ
LEM-6-32-OR M6 1 32 45 35.5 39 24.5 4.2 13 10 18 70 3.8 19 OR CAD RFQ
LEM-6-32-SG M6 1 32 45 35.5 39 24.5 4.2 13 10 18 70 3.8 19 SG CAD RFQ
LEM-6-40-BK M6 1 40 45 35.5 39 24.5 4.2 13 10 18 70 3.8 21 BK CAD RFQ
LEM-6-40-OR M6 1 40 45 35.5 39 24.5 4.2 13 10 18 70 3.8 21 OR CAD RFQ
LEM-6-40-SG M6 1 40 45 35.5 39 24.5 4.2 13 10 18 70 3.8 21 SG CAD RFQ
LEM-6-50-BK M6 1 50 45 35.5 39 24.5 4.2 13 10 18 70 3.8 22 BK CAD RFQ
LEM-6-50-OR M6 1 50 45 35.5 39 24.5 4.2 13 10 18 70 3.8 22 OR CAD RFQ
LEM-6-50-SG M6 1 50 45 35.5 39 24.5 4.2 13 10 18 70 3.8 22 SG CAD RFQ
LEM-6B-12-BK M6 1 12 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 35 BK CAD RFQ
LEM-6B-12-OR M6 1 12 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 35 OR CAD RFQ
LEM-6B-12-SG M6 1 12 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 35 SG CAD RFQ
LEM-6B-16-BK M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 36 BK CAD RFQ
LEM-6B-16-OR M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 36 OR CAD RFQ
LEM-6B-16-SG M6 1 16 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 36 SG CAD RFQ
LEM-6B-20-BK M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 37 BK CAD RFQ
LEM-6B-20-OR M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 37 OR CAD RFQ
LEM-6B-20-SG M6 1 20 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 37 SG CAD RFQ
LEM-6B-25-BK M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 38 BK CAD RFQ
LEM-6B-25-OR M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 38 OR CAD RFQ
LEM-6B-25-SG M6 1 25 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 38 SG CAD RFQ
LEM-6B-32-BK M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 39 BK CAD RFQ
LEM-6B-32-OR M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 39 OR CAD RFQ
LEM-6B-32-SG M6 1 32 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 39 SG CAD RFQ
LEM-6B-40-BK M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 41 BK CAD RFQ
LEM-6B-40-OR M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 41 OR CAD RFQ
LEM-6B-40-SG M6 1 40 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 41 SG CAD RFQ
LEM-6B-50-BK M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 42 BK CAD RFQ
LEM-6B-50-OR M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 42 OR CAD RFQ
LEM-6B-50-SG M6 1 50 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 42 SG CAD RFQ
LEM-6B-63-BK M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 44 BK CAD RFQ
LEM-6B-63-OR M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 44 OR CAD RFQ
LEM-6B-63-SG M6 1 63 63 46.3 50.3 31 6.5 17.5 13.5 24 50 3.8 44 SG CAD RFQ
LEM-8-12-BK M8 1.25 12 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 38 BK CAD RFQ
LEM-8-12-OR M8 1.25 12 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 38 OR CAD RFQ
LEM-8-12-SG M8 1.25 12 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 38 SG CAD RFQ
LEM-8-16-BK M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 39 BK CAD RFQ
LEM-8-16-OR M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 39 OR CAD RFQ
LEM-8-16-SG M8 1.25 16 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 39 SG CAD RFQ
LEM-8-20-BK M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 40 BK CAD RFQ
LEM-8-20-OR M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 40 OR CAD RFQ
LEM-8-20-SG M8 1.25 20 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 40 SG CAD RFQ
LEM-8-25-BK M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 42 BK CAD RFQ
LEM-8-25-OR M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 42 OR CAD RFQ
LEM-8-25-SG M8 1.25 25 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 42 SG CAD RFQ
LEM-8-32-BK M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 43 BK CAD RFQ
LEM-8-32-OR M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 43 OR CAD RFQ
LEM-8-32-SG M8 1.25 32 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 43 SG CAD RFQ
LEM-8-40-BK M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 46 BK CAD RFQ
LEM-8-40-OR M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 46 OR CAD RFQ
LEM-8-40-SG M8 1.25 40 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 46 SG CAD RFQ
LEM-8-50-BK M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 49 BK CAD RFQ
LEM-8-50-OR M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 49 OR CAD RFQ
LEM-8-50-SG M8 1.25 50 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 49 SG CAD RFQ
LEM-8-63-BK M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 53 BK CAD RFQ
LEM-8-63-OR M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 53 OR CAD RFQ
LEM-8-63-SG M8 1.25 63 63 46.3 50.3 31 6.5 17.5 13.5 24 120 7 53 SG CAD RFQ
LEM-8B-16-BK M8 1.25 16 78 55.4 59.4 36 8 21 16 26 100 7 61 BK CAD RFQ
LEM-8B-16-OR M8 1.25 16 78 55.4 59.4 36 8 21 16 26 100 7 61 OR CAD RFQ
LEM-8B-16-SG M8 1.25 16 78 55.4 59.4 36 8 21 16 26 100 7 61 SG CAD RFQ
LEM-8B-20-BK M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 62 BK CAD RFQ
LEM-8B-20-OR M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 62 OR CAD RFQ
LEM-8B-20-SG M8 1.25 20 78 55.4 59.4 36 8 21 16 26 100 7 62 SG CAD RFQ
LEM-8B-25-BK M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 63 BK CAD RFQ
LEM-8B-25-OR M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 63 OR CAD RFQ
LEM-8B-25-SG M8 1.25 25 78 55.4 59.4 36 8 21 16 26 100 7 63 SG CAD RFQ
LEM-8B-32-BK M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 66 BK CAD RFQ
LEM-8B-32-OR M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 66 OR CAD RFQ
LEM-8B-32-SG M8 1.25 32 78 55.4 59.4 36 8 21 16 26 100 7 66 SG CAD RFQ
LEM-8B-40-BK M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 70 BK CAD RFQ
LEM-8B-40-OR M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 70 OR CAD RFQ
LEM-8B-40-SG M8 1.25 40 78 55.4 59.4 36 8 21 16 26 100 7 70 SG CAD RFQ
LEM-8B-50-BK M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 73 BK CAD RFQ
LEM-8B-50-OR M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 73 OR CAD RFQ
LEM-8B-50-SG M8 1.25 50 78 55.4 59.4 36 8 21 16 26 100 7 73 SG CAD RFQ
LEM-8B-63-BK M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 77 BK CAD RFQ
LEM-8B-63-OR M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 77 OR CAD RFQ
LEM-8B-63-SG M8 1.25 63 78 55.4 59.4 36 8 21 16 26 100 7 77 SG CAD RFQ
LEM-8B-80-BK M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 82 BK CAD RFQ
LEM-8B-80-OR M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 82 OR CAD RFQ
LEM-8B-80-SG M8 1.25 80 78 55.4 59.4 36 8 21 16 26 100 7 82 SG CAD RFQ
LEM-10A-20-BK M10 1.5 20 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 43 BK CAD RFQ
LEM-10A-20-OR M10 1.5 20 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 43 OR CAD RFQ
LEM-10A-20-SG M10 1.5 20 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 43 SG CAD RFQ
LEM-10A-25-BK M10 1.5 25 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 46 BK CAD RFQ
LEM-10A-25-OR M10 1.5 25 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 46 OR CAD RFQ
LEM-10A-25-SG M10 1.5 25 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 46 SG CAD RFQ
LEM-10A-32-BK M10 1.5 32 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 50 BK CAD RFQ
LEM-10A-32-OR M10 1.5 32 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 50 OR CAD RFQ
LEM-10A-32-SG M10 1.5 32 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 50 SG CAD RFQ
LEM-10A-40-BK M10 1.5 40 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 52 BK CAD RFQ
LEM-10A-40-OR M10 1.5 40 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 52 OR CAD RFQ
LEM-10A-40-SG M10 1.5 40 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 52 SG CAD RFQ
LEM-10A-50-BK M10 1.5 50 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 57 BK CAD RFQ
LEM-10A-50-OR M10 1.5 50 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 57 OR CAD RFQ
LEM-10A-50-SG M10 1.5 50 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 57 SG CAD RFQ
LEM-10A-63-BK M10 1.5 63 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 64 BK CAD RFQ
LEM-10A-63-OR M10 1.5 63 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 64 OR CAD RFQ
LEM-10A-63-SG M10 1.5 63 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 64 SG CAD RFQ
LEM-10A-80-BK M10 1.5 80 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 84 BK CAD RFQ
LEM-10A-80-OR M10 1.5 80 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 84 OR CAD RFQ
LEM-10A-80-SG M10 1.5 80 63 46.3 50.3 31 6.5 17.5 13.5 24 240 11 84 SG CAD RFQ
LEM-10-16-BK M10 1.5 16 78 55.4 59.4 36 8 21 16 26 200 11 65 BK CAD RFQ
LEM-10-16-OR M10 1.5 16 78 55.4 59.4 36 8 21 16 26 200 11 65 OR CAD RFQ
LEM-10-16-SG M10 1.5 16 78 55.4 59.4 36 8 21 16 26 200 11 65 SG CAD RFQ
LEM-10-20-BK M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 66 BK CAD RFQ
LEM-10-20-OR M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 66 OR CAD RFQ
LEM-10-20-SG M10 1.5 20 78 55.4 59.4 36 8 21 16 26 200 11 66 SG CAD RFQ
LEM-10-25-BK M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 69 BK CAD RFQ
LEM-10-25-OR M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 69 OR CAD RFQ
LEM-10-25-SG M10 1.5 25 78 55.4 59.4 36 8 21 16 26 200 11 69 SG CAD RFQ
LEM-10-32-BK M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 72 BK CAD RFQ
LEM-10-32-OR M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 72 OR CAD RFQ
LEM-10-32-SG M10 1.5 32 78 55.4 59.4 36 8 21 16 26 200 11 72 SG CAD RFQ
LEM-10-40-BK M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 76 BK CAD RFQ
LEM-10-40-OR M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 76 OR CAD RFQ
LEM-10-40-SG M10 1.5 40 78 55.4 59.4 36 8 21 16 26 200 11 76 SG CAD RFQ
LEM-10-50-BK M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 81 BK CAD RFQ
LEM-10-50-OR M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 81 OR CAD RFQ
LEM-10-50-SG M10 1.5 50 78 55.4 59.4 36 8 21 16 26 200 11 81 SG CAD RFQ
LEM-10-63-BK M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 88 BK CAD RFQ
LEM-10-63-OR M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 88 OR CAD RFQ
LEM-10-63-SG M10 1.5 63 78 55.4 59.4 36 8 21 16 26 200 11 88 SG CAD RFQ
LEM-10-80-BK M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 96 BK CAD RFQ
LEM-10-80-OR M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 96 OR CAD RFQ
LEM-10-80-SG M10 1.5 80 78 55.4 59.4 36 8 21 16 26 200 11 96 SG CAD RFQ
LEM-10B-16-BK M10 1.5 16 92 66 70 43 11 25 19 28 170 11 77 BK CAD RFQ
LEM-10B-16-OR M10 1.5 16 92 66 70 43 11 25 19 28 170 11 77 OR CAD RFQ
LEM-10B-16-SG M10 1.5 16 92 66 70 43 11 25 19 28 170 11 77 SG CAD RFQ
LEM-10B-20-BK M10 1.5 20 92 66 70 43 11 25 19 28 170 11 78 BK CAD RFQ
LEM-10B-20-OR M10 1.5 20 92 66 70 43 11 25 19 28 170 11 78 OR CAD RFQ
LEM-10B-20-SG M10 1.5 20 92 66 70 43 11 25 19 28 170 11 78 SG CAD RFQ
LEM-10B-25-BK M10 1.5 25 92 66 70 43 11 25 19 28 170 11 81 BK CAD RFQ
LEM-10B-25-OR M10 1.5 25 92 66 70 43 11 25 19 28 170 11 81 OR CAD RFQ
LEM-10B-25-SG M10 1.5 25 92 66 70 43 11 25 19 28 170 11 81 SG CAD RFQ
LEM-10B-32-BK M10 1.5 32 92 66 70 43 11 25 19 28 170 11 84 BK CAD RFQ
LEM-10B-32-OR M10 1.5 32 92 66 70 43 11 25 19 28 170 11 84 OR CAD RFQ
LEM-10B-32-SG M10 1.5 32 92 66 70 43 11 25 19 28 170 11 84 SG CAD RFQ
LEM-10B-40-BK M10 1.5 40 92 66 70 43 11 25 19 28 170 11 88 BK CAD RFQ
LEM-10B-40-OR M10 1.5 40 92 66 70 43 11 25 19 28 170 11 88 OR CAD RFQ
LEM-10B-40-SG M10 1.5 40 92 66 70 43 11 25 19 28 170 11 88 SG CAD RFQ
LEM-10B-50-BK M10 1.5 50 92 66 70 43 11 25 19 28 170 11 93 BK CAD RFQ
LEM-10B-50-OR M10 1.5 50 92 66 70 43 11 25 19 28 170 11 93 OR CAD RFQ
LEM-10B-50-SG M10 1.5 50 92 66 70 43 11 25 19 28 170 11 93 SG CAD RFQ
LEM-10B-63-BK M10 1.5 63 92 66 70 43 11 25 19 28 170 11 100 BK CAD RFQ
LEM-10B-63-OR M10 1.5 63 92 66 70 43 11 25 19 28 170 11 100 OR CAD RFQ
LEM-10B-63-SG M10 1.5 63 92 66 70 43 11 25 19 28 170 11 100 SG CAD RFQ
LEM-10B-80-BK M10 1.5 80 92 66 70 43 11 25 19 28 170 11 108 BK CAD RFQ
LEM-10B-80-OR M10 1.5 80 92 66 70 43 11 25 19 28 170 11 108 OR CAD RFQ
LEM-10B-80-SG M10 1.5 80 92 66 70 43 11 25 19 28 170 11 108 SG CAD RFQ
LEM-12A-20-BK M12 1.75 20 78 55.4 59.4 36 8 21 16 26 350 16 71 BK CAD RFQ
LEM-12A-20-OR M12 1.75 20 78 55.4 59.4 36 8 21 16 26 350 16 71 OR CAD RFQ
LEM-12A-20-SG M12 1.75 20 78 55.4 59.4 36 8 21 16 26 350 16 71 SG CAD RFQ
LEM-12A-25-BK M12 1.75 25 78 55.4 59.4 36 8 21 16 26 350 16 75 BK CAD RFQ
LEM-12A-25-OR M12 1.75 25 78 55.4 59.4 36 8 21 16 26 350 16 75 OR CAD RFQ
LEM-12A-25-SG M12 1.75 25 78 55.4 59.4 36 8 21 16 26 350 16 75 SG CAD RFQ
LEM-12A-32-BK M12 1.75 32 78 55.4 59.4 36 8 21 16 26 350 16 80 BK CAD RFQ
LEM-12A-32-OR M12 1.75 32 78 55.4 59.4 36 8 21 16 26 350 16 80 OR CAD RFQ
LEM-12A-32-SG M12 1.75 32 78 55.4 59.4 36 8 21 16 26 350 16 80 SG CAD RFQ
LEM-12A-40-BK M12 1.75 40 78 55.4 59.4 36 8 21 16 26 350 16 86 BK CAD RFQ
LEM-12A-40-OR M12 1.75 40 78 55.4 59.4 36 8 21 16 26 350 16 86 OR CAD RFQ
LEM-12A-40-SG M12 1.75 40 78 55.4 59.4 36 8 21 16 26 350 16 86 SG CAD RFQ
LEM-12A-50-BK M12 1.75 50 78 55.4 59.4 36 8 21 16 26 350 16 93 BK CAD RFQ
LEM-12A-50-OR M12 1.75 50 78 55.4 59.4 36 8 21 16 26 350 16 93 OR CAD RFQ
LEM-12A-50-SG M12 1.75 50 78 55.4 59.4 36 8 21 16 26 350 16 93 SG CAD RFQ
LEM-12A-63-BK M12 1.75 63 78 55.4 59.4 36 8 21 16 26 350 16 101 BK CAD RFQ
LEM-12A-63-OR M12 1.75 63 78 55.4 59.4 36 8 21 16 26 350 16 101 OR CAD RFQ
LEM-12A-63-SG M12 1.75 63 78 55.4 59.4 36 8 21 16 26 350 16 101 SG CAD RFQ
LEM-12A-80-BK M12 1.75 80 78 55.4 59.4 36 8 21 16 26 350 16 113 BK CAD RFQ
LEM-12A-80-OR M12 1.75 80 78 55.4 59.4 36 8 21 16 26 350 16 113 OR CAD RFQ
LEM-12A-80-SG M12 1.75 80 78 55.4 59.4 36 8 21 16 26 350 16 113 SG CAD RFQ
LEM-12-16-BK M12 1.75 16 92 66 70 43 11 25 19 28 290 16 104 BK CAD RFQ
LEM-12-16-OR M12 1.75 16 92 66 70 43 11 25 19 28 290 16 104 OR CAD RFQ
LEM-12-16-SG M12 1.75 16 92 66 70 43 11 25 19 28 290 16 104 SG CAD RFQ
LEM-12-20-BK M12 1.75 20 92 66 70 43 11 25 19 28 290 16 108 BK CAD RFQ
LEM-12-20-OR M12 1.75 20 92 66 70 43 11 25 19 28 290 16 108 OR CAD RFQ
LEM-12-20-SG M12 1.75 20 92 66 70 43 11 25 19 28 290 16 108 SG CAD RFQ
LEM-12-25-BK M12 1.75 25 92 66 70 43 11 25 19 28 290 16 112 BK CAD RFQ
LEM-12-25-OR M12 1.75 25 92 66 70 43 11 25 19 28 290 16 112 OR CAD RFQ
LEM-12-25-SG M12 1.75 25 92 66 70 43 11 25 19 28 290 16 112 SG CAD RFQ
LEM-12-32-BK M12 1.75 32 92 66 70 43 11 25 19 28 290 16 116 BK CAD RFQ
LEM-12-32-OR M12 1.75 32 92 66 70 43 11 25 19 28 290 16 116 OR CAD RFQ
LEM-12-32-SG M12 1.75 32 92 66 70 43 11 25 19 28 290 16 116 SG CAD RFQ
LEM-12-40-BK M12 1.75 40 92 66 70 43 11 25 19 28 290 16 121 BK CAD RFQ
LEM-12-40-OR M12 1.75 40 92 66 70 43 11 25 19 28 290 16 121 OR CAD RFQ
LEM-12-40-SG M12 1.75 40 92 66 70 43 11 25 19 28 290 16 121 SG CAD RFQ
LEM-12-50-BK M12 1.75 50 92 66 70 43 11 25 19 28 290 16 128 BK CAD RFQ
LEM-12-50-OR M12 1.75 50 92 66 70 43 11 25 19 28 290 16 128 OR CAD RFQ
LEM-12-50-SG M12 1.75 50 92 66 70 43 11 25 19 28 290 16 128 SG CAD RFQ
LEM-12-63-BK M12 1.75 63 92 66 70 43 11 25 19 28 290 16 138 BK CAD RFQ
LEM-12-63-OR M12 1.75 63 92 66 70 43 11 25 19 28 290 16 138 OR CAD RFQ
LEM-12-63-SG M12 1.75 63 92 66 70 43 11 25 19 28 290 16 138 SG CAD RFQ
LEM-12-80-BK M12 1.75 80 92 66 70 43 11 25 19 28 290 16 149 BK CAD RFQ
LEM-12-80-OR M12 1.75 80 92 66 70 43 11 25 19 28 290 16 149 OR CAD RFQ
LEM-12-80-SG M12 1.75 80 92 66 70 43 11 25 19 28 290 16 149 SG CAD RFQ
LEM-16A-25-BK M16 2 25 92 66 70 43 11 25 19 28 290 16 126 BK CAD RFQ
LEM-16A-25-OR M16 2 25 92 66 70 43 11 25 19 28 290 16 126 OR CAD RFQ
LEM-16A-25-SG M16 2 25 92 66 70 43 11 25 19 28 290 16 126 SG CAD RFQ
LEM-16A-32-BK M16 2 32 92 66 70 43 11 25 19 28 290 16 134 BK CAD RFQ
LEM-16A-32-OR M16 2 32 92 66 70 43 11 25 19 28 290 16 134 OR CAD RFQ
LEM-16A-32-SG M16 2 32 92 66 70 43 11 25 19 28 290 16 134 SG CAD RFQ
LEM-16A-40-BK M16 2 40 92 66 70 43 11 25 19 28 290 16 145 BK CAD RFQ
LEM-16A-40-OR M16 2 40 92 66 70 43 11 25 19 28 290 16 145 OR CAD RFQ
LEM-16A-40-SG M16 2 40 92 66 70 43 11 25 19 28 290 16 145 SG CAD RFQ
LEM-16A-50-BK M16 2 50 92 66 70 43 11 25 19 28 290 16 153 BK CAD RFQ
LEM-16A-50-OR M16 2 50 92 66 70 43 11 25 19 28 290 16 153 OR CAD RFQ
LEM-16A-50-SG M16 2 50 92 66 70 43 11 25 19 28 290 16 153 SG CAD RFQ
LEM-16A-63-BK M16 2 63 92 66 70 43 11 25 19 28 290 16 172 BK CAD RFQ
LEM-16A-63-OR M16 2 63 92 66 70 43 11 25 19 28 290 16 172 OR CAD RFQ
LEM-16A-63-SG M16 2 63 92 66 70 43 11 25 19 28 290 16 172 SG CAD RFQ
LEM-16A-80-BK M16 2 80 92 66 70 43 11 25 19 28 290 16 194 BK CAD RFQ
LEM-16A-80-OR M16 2 80 92 66 70 43 11 25 19 28 290 16 194 OR CAD RFQ
LEM-16A-80-SG M16 2 80 92 66 70 43 11 25 19 28 290 16 194 SG CAD RFQ

＊1：　For the definitions of maximum load and maximum clamping force, see "Using the Clamp Lever / Tension Lever."⇒Using the Clamp Lever / Tension Lever

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Material/Finish

LEM
Lever Part Nylon 6 (Various Colors)
Thread Part SUM22L
Ferrosoferric Oxide Film (Black)
Setscrew Steel
Ferrosoferric Oxide Film (Black)
Serration Ring (Insert) Zinc Die Cast
Spring Stainless Steel Wire or SWPB

Characteristics

  • The zinc die cast serration ring is inserted into the plastic lever main unit. It achieves sufficient fitting strength with the metal screw serrations.
  • A wide variety of screw sizes from M3 to M16.
  • The thread part is available in three combinations of materials and surface treatment.
    LEM----Steel/ferrosoferric oxide film (black)
    LEME----Steel/electroless nickel plating
    LEMS----Stainless steel
  • LEME has a steel thread part with electroless nickel plating for increased corrosion resistance.
  • The lever is available in 3 color variations. They can be selected by the end symbol of the part number.
End Symbol Lever Part Color
BK Matte Black
SG Matte Silver
OR Matte Orange

Only takes a minute to understand! How to Use Clamp Levers.

Related Products

SWAS-PPK washers suitable for positioning and fixing slide mechanisms using slotted holes are available.
SWAS-PPK

LEMPlastic Clamp Levers, Male Screw


Related Services

Product List

LEM-10

LEM-10A

LEM-10B

LEM-12

LEM-12A

LEM-16A

LEM-3

LEM-4

LEM-5

LEM-6

LEM-6B

LEM-8

LEM-8B

Click here to see Clamp Levers

LEME

Part Name

Plastic Clamp Lever, Male Screw

Part Number

LEME

Feature

Lightweight
Electroless Nickel Plating
Good Design Award

LEMS

Part Name

Plastic Clamp Lever, Male Screw

Part Number

LEMS

Feature

Lightweight
Screw is made from Stainless Steel
Good Design Award

LEMS-MD

Part Name

Metal Detectable Plastic Clamp Levers (Male Screws)

Part Number

LEMS-MD

Feature

Lightweight
Thread Part: Stainless Steel
Metal Detection Supported

LEF

Part Name

Plastic Clamp Lever, Female Screw

Part Number

LEF

Feature

Lightweight
Good Design Award

Click here to see Machine Elements

Set Collars

Set Collars

Hexagonpost

Hexagonpost

Cross Clampers・Shaft Clamping Units

Cross Clampers・Shaft Clamping Units

Positioning Brackets

Positioning Brackets
