  • Clamp Levers

LFF-16

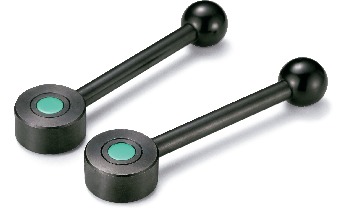

Flat Tension Lever, Female Screw

Safety PrecautionsUsage

RoHS Compliant

LFFFlat Tension Lever, Female Screw

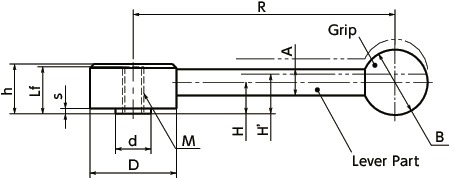

Dimension Drawing

LFFFlat Tension Lever, Female Screw寸法図

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch Lf R H H' h s A B D d Tooth No. Max. load
(N)		 Max. tightening force
(kN)		 Mass
(g)		 CAD
Download		 Cart
LFF-16 M16 2 27 150 17 22 28 2 14 35 45 23 36 660 43 450 CAD RFQ
Part Number M (Coarse)
Nominal of Thread		 Pitch Lf R H H' h s A B D d Tooth No. Max. load
(N)		 Max. tightening force
(kN)		 Mass
(g)		 CAD
Download		 Cart
LFF-16 M16 2 27 150 17 22 28 2 14 35 45 23 36 660 43 450 CAD RFQ
Part Number M (Coarse)
Nominal of Thread		 Pitch Lf R H H' h s A B D d Tooth No. Max. load
(N)		 Max. tightening force
(kN)		 Mass
(g)		 CAD
Download		 Cart
LFF-16 M16 2 27 150 17 22 28 2 14 35 45 23 36 660 43 450 CAD RFQ
Part Number M (Coarse)
Nominal of Thread		 Pitch Lf R H H' h s A B D d Tooth No. Max. load
(N)		 Max. tightening force
(kN)		 Mass
(g)		 CAD
Download		 Cart
LFF-16 M16 2 27 150 17 22 28 2 14 35 45 23 36 660 43 450 CAD RFQ

Material/Finish

LFF
Lever Part S45C
Ferrosoferric Oxide Film (Black)
Thread Part S45C
Ferrosoferric Oxide Film (Black)
Grip Phenol Resin (Black)

Characteristics

  • A flat-shaped tension lever. For applications with narrow top or bottom space.
  • Since the rotating radius is large, a large clamping force can be achieved by small force.
  • The phase angle of the lever in regards to the screw can be freely adjusted.

Only takes a minute to understand! How to Use Clamp Levers.
