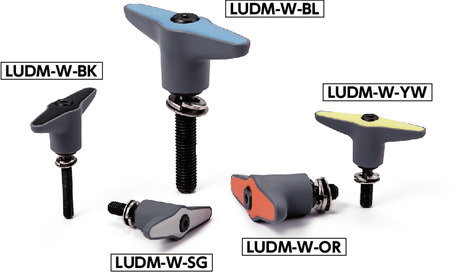

Plastic Clamp Levers - Spring Washer Integrated Type

Name: LUDM-W
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

LUDM-W

Safety Precautions Usage

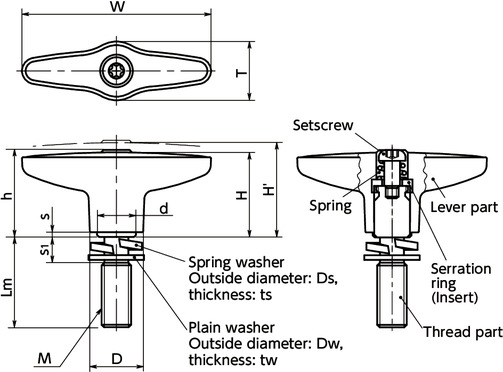

Dimension Drawing

Specs/CAD

Select

M (Coarse) Nominal of Thread: All; M5; M6; M8; M10

Lm: All; 12; 16; 20; 25; 32; 40; 50; 63; 80

Body Color: All; BK; BL; OR; SG; YW

Unit : mm

Part Number	M (Coarse) Nominal of Thread	Pitch	Lm	W	H	H'	h	s	T	D	d	Ds	ts	Dw	tw	s1	Tooth No.	Max. Load^＊1 (N)	Max. Clamping Force^＊1 (kN)	Mass (g)	Body Color	CAD Download	Cart
LUDM-52-5-12-W-BK	M5	0.8	12	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	20	BK	CAD	RFQ
LUDM-52-5-12-W-BL	M5	0.8	12	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	20	BL	CAD	RFQ
LUDM-52-5-12-W-OR	M5	0.8	12	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	20	OR	CAD	RFQ
LUDM-52-5-12-W-SG	M5	0.8	12	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	20	SG	CAD	RFQ
LUDM-52-5-12-W-YW	M5	0.8	12	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	20	YW	CAD	RFQ
LUDM-52-5-16-W-BK	M5	0.8	16	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	21	BK	CAD	RFQ
LUDM-52-5-16-W-BL	M5	0.8	16	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	21	BL	CAD	RFQ
LUDM-52-5-16-W-OR	M5	0.8	16	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	21	OR	CAD	RFQ
LUDM-52-5-16-W-SG	M5	0.8	16	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	21	SG	CAD	RFQ
LUDM-52-5-16-W-YW	M5	0.8	16	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	21	YW	CAD	RFQ
LUDM-52-5-20-W-BK	M5	0.8	20	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	21	BK	CAD	RFQ
LUDM-52-5-20-W-BL	M5	0.8	20	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	21	BL	CAD	RFQ
LUDM-52-5-20-W-OR	M5	0.8	20	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	21	OR	CAD	RFQ
LUDM-52-5-20-W-SG	M5	0.8	20	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	21	SG	CAD	RFQ
LUDM-52-5-20-W-YW	M5	0.8	20	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	21	YW	CAD	RFQ
LUDM-52-5-25-W-BK	M5	0.8	25	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	22	BK	CAD	RFQ
LUDM-52-5-25-W-BL	M5	0.8	25	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	22	BL	CAD	RFQ
LUDM-52-5-25-W-OR	M5	0.8	25	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	22	OR	CAD	RFQ
LUDM-52-5-25-W-SG	M5	0.8	25	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	22	SG	CAD	RFQ
LUDM-52-5-25-W-YW	M5	0.8	25	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	22	YW	CAD	RFQ
LUDM-52-5-32-W-BK	M5	0.8	32	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	22	BK	CAD	RFQ
LUDM-52-5-32-W-BL	M5	0.8	32	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	22	BL	CAD	RFQ
LUDM-52-5-32-W-OR	M5	0.8	32	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	22	OR	CAD	RFQ
LUDM-52-5-32-W-SG	M5	0.8	32	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	22	SG	CAD	RFQ
LUDM-52-5-32-W-YW	M5	0.8	32	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	22	YW	CAD	RFQ
LUDM-52-5-40-W-BK	M5	0.8	40	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	23	BK	CAD	RFQ
LUDM-52-5-40-W-BL	M5	0.8	40	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	23	BL	CAD	RFQ
LUDM-52-5-40-W-OR	M5	0.8	40	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	23	OR	CAD	RFQ
LUDM-52-5-40-W-SG	M5	0.8	40	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	23	SG	CAD	RFQ
LUDM-52-5-40-W-YW	M5	0.8	40	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	23	YW	CAD	RFQ
LUDM-52-5-50-W-BK	M5	0.8	50	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	25	BK	CAD	RFQ
LUDM-52-5-50-W-BL	M5	0.8	50	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	25	BL	CAD	RFQ
LUDM-52-5-50-W-OR	M5	0.8	50	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	25	OR	CAD	RFQ
LUDM-52-5-50-W-SG	M5	0.8	50	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	25	SG	CAD	RFQ
LUDM-52-5-50-W-YW	M5	0.8	50	52	23.5	27	24.5	1.5	15.4	14	10	9.2	1.3	10	0.5	4	18	72	2.7	25	YW	CAD	RFQ
LUDM-52-6-12-W-BK	M6	1	12	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	21	BK	CAD	RFQ
LUDM-52-6-12-W-BL	M6	1	12	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	21	BL	CAD	RFQ
LUDM-52-6-12-W-OR	M6	1	12	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	21	OR	CAD	RFQ
LUDM-52-6-12-W-SG	M6	1	12	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	21	SG	CAD	RFQ
LUDM-52-6-12-W-YW	M6	1	12	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	21	YW	CAD	RFQ
LUDM-52-6-16-W-BK	M6	1	16	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	21	BK	CAD	RFQ
LUDM-52-6-16-W-BL	M6	1	16	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	21	BL	CAD	RFQ
LUDM-52-6-16-W-OR	M6	1	16	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	21	OR	CAD	RFQ
LUDM-52-6-16-W-SG	M6	1	16	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	21	SG	CAD	RFQ
LUDM-52-6-16-W-YW	M6	1	16	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	21	YW	CAD	RFQ
LUDM-52-6-20-W-BK	M6	1	20	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	22	BK	CAD	RFQ
LUDM-52-6-20-W-BL	M6	1	20	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	22	BL	CAD	RFQ
LUDM-52-6-20-W-OR	M6	1	20	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	22	OR	CAD	RFQ
LUDM-52-6-20-W-SG	M6	1	20	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	22	SG	CAD	RFQ
LUDM-52-6-20-W-YW	M6	1	20	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	22	YW	CAD	RFQ
LUDM-52-6-25-W-BK	M6	1	25	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	23	BK	CAD	RFQ
LUDM-52-6-25-W-BL	M6	1	25	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	23	BL	CAD	RFQ
LUDM-52-6-25-W-OR	M6	1	25	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	23	OR	CAD	RFQ
LUDM-52-6-25-W-SG	M6	1	25	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	23	SG	CAD	RFQ
LUDM-52-6-25-W-YW	M6	1	25	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	23	YW	CAD	RFQ
LUDM-52-6-32-W-BK	M6	1	32	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	24	BK	CAD	RFQ
LUDM-52-6-32-W-BL	M6	1	32	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	24	BL	CAD	RFQ
LUDM-52-6-32-W-OR	M6	1	32	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	24	OR	CAD	RFQ
LUDM-52-6-32-W-SG	M6	1	32	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	24	SG	CAD	RFQ
LUDM-52-6-32-W-YW	M6	1	32	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	24	YW	CAD	RFQ
LUDM-52-6-40-W-BK	M6	1	40	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	25	BK	CAD	RFQ
LUDM-52-6-40-W-BL	M6	1	40	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	25	BL	CAD	RFQ
LUDM-52-6-40-W-OR	M6	1	40	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	25	OR	CAD	RFQ
LUDM-52-6-40-W-SG	M6	1	40	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	25	SG	CAD	RFQ
LUDM-52-6-40-W-YW	M6	1	40	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	25	YW	CAD	RFQ
LUDM-52-6-50-W-BK	M6	1	50	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	27	BK	CAD	RFQ
LUDM-52-6-50-W-BL	M6	1	50	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	27	BL	CAD	RFQ
LUDM-52-6-50-W-OR	M6	1	50	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	27	OR	CAD	RFQ
LUDM-52-6-50-W-SG	M6	1	50	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	27	SG	CAD	RFQ
LUDM-52-6-50-W-YW	M6	1	50	52	23.5	27	24.5	1.5	15.4	14	10	12.2	1.5	12	0.6	5	18	120	3.8	27	YW	CAD	RFQ
LUDM-67-8-12-W-BK	M8	1.25	12	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	42	BK	CAD	RFQ
LUDM-67-8-12-W-BL	M8	1.25	12	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	42	BL	CAD	RFQ
LUDM-67-8-12-W-OR	M8	1.25	12	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	42	OR	CAD	RFQ
LUDM-67-8-12-W-SG	M8	1.25	12	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	42	SG	CAD	RFQ
LUDM-67-8-12-W-YW	M8	1.25	12	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	42	YW	CAD	RFQ
LUDM-67-8-16-W-BK	M8	1.25	16	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	44	BK	CAD	RFQ
LUDM-67-8-16-W-BL	M8	1.25	16	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	44	BL	CAD	RFQ
LUDM-67-8-16-W-OR	M8	1.25	16	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	44	OR	CAD	RFQ
LUDM-67-8-16-W-SG	M8	1.25	16	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	44	SG	CAD	RFQ
LUDM-67-8-16-W-YW	M8	1.25	16	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	44	YW	CAD	RFQ
LUDM-67-8-20-W-BK	M8	1.25	20	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	45	BK	CAD	RFQ
LUDM-67-8-20-W-BL	M8	1.25	20	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	45	BL	CAD	RFQ
LUDM-67-8-20-W-OR	M8	1.25	20	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	45	OR	CAD	RFQ
LUDM-67-8-20-W-SG	M8	1.25	20	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	45	SG	CAD	RFQ
LUDM-67-8-20-W-YW	M8	1.25	20	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	45	YW	CAD	RFQ
LUDM-67-8-25-W-BK	M8	1.25	25	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	47	BK	CAD	RFQ
LUDM-67-8-25-W-BL	M8	1.25	25	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	47	BL	CAD	RFQ
LUDM-67-8-25-W-OR	M8	1.25	25	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	47	OR	CAD	RFQ
LUDM-67-8-25-W-SG	M8	1.25	25	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	47	SG	CAD	RFQ
LUDM-67-8-25-W-YW	M8	1.25	25	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	47	YW	CAD	RFQ
LUDM-67-8-32-W-BK	M8	1.25	32	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	49	BK	CAD	RFQ
LUDM-67-8-32-W-BL	M8	1.25	32	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	49	BL	CAD	RFQ
LUDM-67-8-32-W-OR	M8	1.25	32	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	49	OR	CAD	RFQ
LUDM-67-8-32-W-SG	M8	1.25	32	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	49	SG	CAD	RFQ
LUDM-67-8-32-W-YW	M8	1.25	32	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	49	YW	CAD	RFQ
LUDM-67-8-40-W-BK	M8	1.25	40	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	51	BK	CAD	RFQ
LUDM-67-8-40-W-BL	M8	1.25	40	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	51	BL	CAD	RFQ
LUDM-67-8-40-W-OR	M8	1.25	40	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	51	OR	CAD	RFQ
LUDM-67-8-40-W-SG	M8	1.25	40	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	51	SG	CAD	RFQ
LUDM-67-8-40-W-YW	M8	1.25	40	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	51	YW	CAD	RFQ
LUDM-67-8-50-W-BK	M8	1.25	50	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	54	BK	CAD	RFQ
LUDM-67-8-50-W-BL	M8	1.25	50	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	54	BL	CAD	RFQ
LUDM-67-8-50-W-OR	M8	1.25	50	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	54	OR	CAD	RFQ
LUDM-67-8-50-W-SG	M8	1.25	50	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	54	SG	CAD	RFQ
LUDM-67-8-50-W-YW	M8	1.25	50	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	54	YW	CAD	RFQ
LUDM-67-8-63-W-BK	M8	1.25	63	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	58	BK	CAD	RFQ
LUDM-67-8-63-W-BL	M8	1.25	63	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	58	BL	CAD	RFQ
LUDM-67-8-63-W-OR	M8	1.25	63	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	58	OR	CAD	RFQ
LUDM-67-8-63-W-SG	M8	1.25	63	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	58	SG	CAD	RFQ
LUDM-67-8-63-W-YW	M8	1.25	63	67	30	34	31	2	20.8	19	13.5	15.4	2	16	0.8	6	24	230	7	58	YW	CAD	RFQ
LUDM-78-10-16-W-BK	M10	1.5	16	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	71	BK	CAD	RFQ
LUDM-78-10-16-W-BL	M10	1.5	16	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	71	BL	CAD	RFQ
LUDM-78-10-16-W-OR	M10	1.5	16	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	71	OR	CAD	RFQ
LUDM-78-10-16-W-SG	M10	1.5	16	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	71	SG	CAD	RFQ
LUDM-78-10-16-W-YW	M10	1.5	16	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	71	YW	CAD	RFQ
LUDM-78-10-20-W-BK	M10	1.5	20	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	73	BK	CAD	RFQ
LUDM-78-10-20-W-BL	M10	1.5	20	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	73	BL	CAD	RFQ
LUDM-78-10-20-W-OR	M10	1.5	20	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	73	OR	CAD	RFQ
LUDM-78-10-20-W-SG	M10	1.5	20	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	73	SG	CAD	RFQ
LUDM-78-10-20-W-YW	M10	1.5	20	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	73	YW	CAD	RFQ
LUDM-78-10-25-W-BK	M10	1.5	25	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	76	BK	CAD	RFQ
LUDM-78-10-25-W-BL	M10	1.5	25	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	76	BL	CAD	RFQ
LUDM-78-10-25-W-OR	M10	1.5	25	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	76	OR	CAD	RFQ
LUDM-78-10-25-W-SG	M10	1.5	25	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	76	SG	CAD	RFQ
LUDM-78-10-25-W-YW	M10	1.5	25	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	76	YW	CAD	RFQ
LUDM-78-10-32-W-BK	M10	1.5	32	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	79	BK	CAD	RFQ
LUDM-78-10-32-W-BL	M10	1.5	32	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	79	BL	CAD	RFQ
LUDM-78-10-32-W-OR	M10	1.5	32	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	79	OR	CAD	RFQ
LUDM-78-10-32-W-SG	M10	1.5	32	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	79	SG	CAD	RFQ
LUDM-78-10-32-W-YW	M10	1.5	32	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	79	YW	CAD	RFQ
LUDM-78-10-40-W-BK	M10	1.5	40	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	83	BK	CAD	RFQ
LUDM-78-10-40-W-BL	M10	1.5	40	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	83	BL	CAD	RFQ
LUDM-78-10-40-W-OR	M10	1.5	40	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	83	OR	CAD	RFQ
LUDM-78-10-40-W-SG	M10	1.5	40	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	83	SG	CAD	RFQ
LUDM-78-10-40-W-YW	M10	1.5	40	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	83	YW	CAD	RFQ
LUDM-78-10-50-W-BK	M10	1.5	50	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	88	BK	CAD	RFQ
LUDM-78-10-50-W-BL	M10	1.5	50	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	88	BL	CAD	RFQ
LUDM-78-10-50-W-OR	M10	1.5	50	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	88	OR	CAD	RFQ
LUDM-78-10-50-W-SG	M10	1.5	50	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	88	SG	CAD	RFQ
LUDM-78-10-50-W-YW	M10	1.5	50	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	88	YW	CAD	RFQ
LUDM-78-10-63-W-BK	M10	1.5	63	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	94	BK	CAD	RFQ
LUDM-78-10-63-W-BL	M10	1.5	63	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	94	BL	CAD	RFQ
LUDM-78-10-63-W-OR	M10	1.5	63	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	94	OR	CAD	RFQ
LUDM-78-10-63-W-SG	M10	1.5	63	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	94	SG	CAD	RFQ
LUDM-78-10-63-W-YW	M10	1.5	63	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	94	YW	CAD	RFQ
LUDM-78-10-80-W-BK	M10	1.5	80	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	103	BK	CAD	RFQ
LUDM-78-10-80-W-BL	M10	1.5	80	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	103	BL	CAD	RFQ
LUDM-78-10-80-W-OR	M10	1.5	80	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	103	OR	CAD	RFQ
LUDM-78-10-80-W-SG	M10	1.5	80	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	103	SG	CAD	RFQ
LUDM-78-10-80-W-YW	M10	1.5	80	78	35	39	36	2	24.3	22	16	18.4	2.5	20	1	7	26	390	11	103	YW	CAD	RFQ

＊1：　About the definition of max. load / max. clamping force ⇒Using the Clamp Lever / Tension Lever

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Material/Finish

	LUDM-W
Lever Part	Nylon 6 (Various Color)
Thread Part	SUM22L Ferrosoferric Oxide Film (Black)
Spring Washer	SUS304
Plain Washer	SUS304
Setscrew	Steel Ferrosoferric Oxide Film (Black)
Serration Ring	Zinc Die Cast
Spring	Stainless Steel Wire

Characteristics

Double arm type plastic clamp lever with spring washer.
This eliminates the need to mount spring washers.
The special shape of the plain washer holds the spring washer captive.

The plain washer can be rotated along the thread ridges and removed. The spring washer can be replaced with a different washer component.

LUDM-WPlastic Clamp Levers - Spring Washer Integrated Type

Designed to incorporate the 7 principles of Universal Design. The shape allows easy operation and application of force.
Universal Design ⇒Universal design UDEX® series
Rotating radius is about half that of conventional plastic clamp levers. Space-saving.
The zinc die cast serration ring is inserted into the plastic lever main unit. It achieves sufficient fitting strength with the metal screw serrations.
Five color variations support the color universal design of machines and devices. Two-tone color: dark gray and various colors.

Lever part colors can be selected by the end symbol of the part number.

End Symbol	Lever Part Color
BK	Matte Black
SG	Matte Silver
OR	Matte Orange
BL	Matte Blue
YW	Matte Yellow

Only takes a minute to understand! How to Use Clamp Levers.

Precautions for Use

Before tightening the lever, make sure that the plain washers are located at the relief cut section as shown in Fig. 1. Tightening the plain washer while hooked on the screw thread as shown in Fig. 2 may cause the plain washer to be deformed.

LUDM-WPlastic Clamp Levers - Spring Washer Integrated Type

Usage Example

Can be used for tightening slotted holes.

LUDM-WPlastic Clamp Levers - Spring Washer Integrated Type

Nominal of thread for slotted hole widths should be +0.5 mm or less.

Related Services

Click here to see Clamp Levers

Part Name

Plastic Clamp Levers, Female Screw

Part Number

LUDF

Feature

Universal Design

Part Name

Plastic Clamp Lever, Female Screw

Part Number

LUDFS

Feature

Universal Design
Screw is made from Stainless Steel

Part Name
