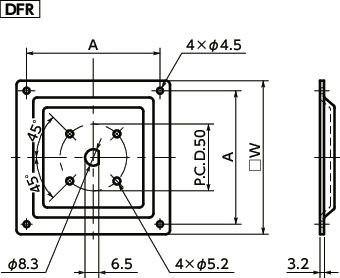

Dimension Drawing
Specs/CAD
Unit : mm

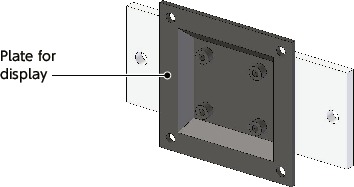

Structure
Material/Finish
| DFR-AF | DFR-AA/DFR-PB | |
|---|---|---|
| Plate for display | SPHC Cation Painting |
|
| Fixing Plate | SS400 Electrostatic Coating |
- |
| Bracket | - | A6063 Anodized |
Characteristics
- A type to fix the display completely.
-

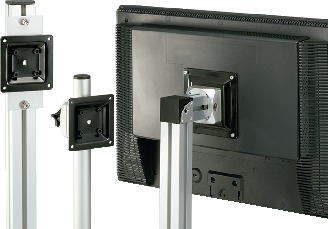

For counterpart, three types of Mounting System for Display are available.
For aluminum frame / For wall panel and sheet metal ----DFR-AF
For aluminum frame end mounting ----DFR-AA
For round pipe ----DFR-PB - The plate for display alone can be purchased separately.
