  • Display Mounting Systems

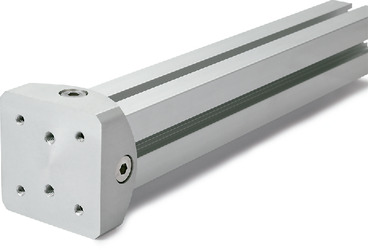

For Aluminum Frame End Surface Mounting Bracket

DAA

Safety Precautions

RoHS Compliant

DAAFor Aluminum Frame End Surface Mounting Bracket

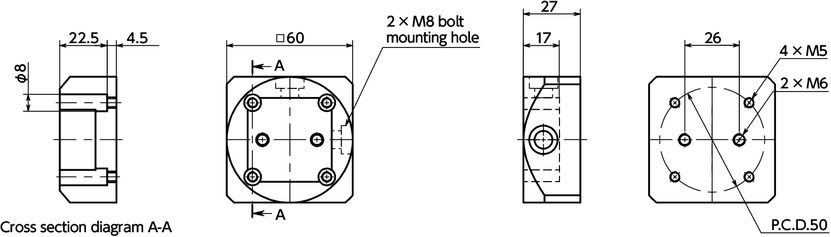

Dimension Drawing

DAAFor Aluminum Frame End Surface Mounting Bracket寸法図

Specs/CAD

Unit : mm

Part Number Max. Load Weight
(kg) 		Mass
(g)		 CAD
Download		 Cart
DAA-60-40 10 190 CAD RFQ

● Hex socket head cap low profile cap screws (M8 × 16 mm) × 2 pcs for fixing to the aluminum plate end surface are supplied.

Material/Finish

DAA
Main Body A6063
Anodized

Characteristics

  • This part is for fixing the workpiece to □40 aluminum frame end surface.

DAAFor Aluminum Frame End Surface Mounting Bracket

  • Angle hinge DFS-H (DFS-H) DFSN-H (DFSN-H) DKBR-H (DKBR-H) have compatible mounting dimensions. You can freely combine them for use.

Application

Machine tool / Medical equipment / FPD production device / Semiconductor manufacturing device / Packing machine / Food machinery

Related Products

Angle hinge that can be used in assembly is available.
Clamp Lever Retention Type DFS-HDFS-H
Hex Nut Retention Type DFSN-HDFSN-H
Rotation Restriction Type DKBR-HDKBR-H

DAAFor Aluminum Frame End Surface Mounting Bracket
