Discontinued Products

This product has been discontinued. Please contact us for alternative products.

Clamping Unit for Tablet PC

DTC

Safety Precautions

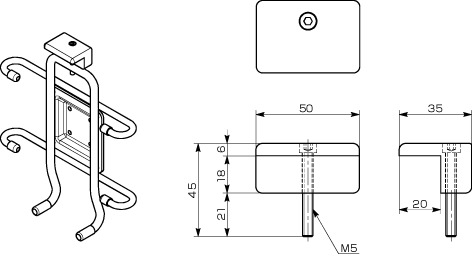

Dimension Drawing

Unit : mm

Part Number	Mass (g)	CAD Download
DTC	70	-

Material/Finish

	DTC
Clamp	AC4C-F Electrostatic Coating
Clamping Screw	SUSXM7

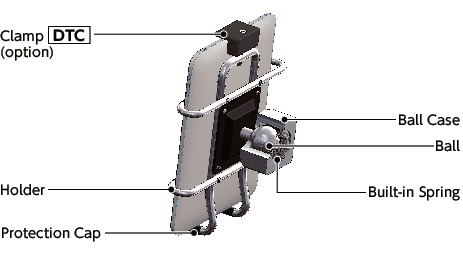

Structure

DTCClamping Unit for Tablet PC

Product List

DTC

Click here to see Display Mounting Systems

Part Name

Ball Joint (Male Screw) - Bolt Mounting

Part Number

DFKM-AF

Feature

360° Rotation/±15° in All Directions, Ball Side Male Screw, Front or Rear-Surface Mounting, Adjustable Retention Torque

Part Name

Ball Joint (Male Screw) - Aluminum Frame End Surface Mounting

Part Number

DFKM-AA

Feature

360° Rotation/±15° in All Directions, Ball Side Male Screw, Aluminum Frame End Surface Mounting, Adjustable Retention Torque

Part Name

Ball Joint (Male Screw) - Round Pipe Mounting

Part Number

DFKM-PB

Feature

360° Rotation/±15° in All Directions, Ball Side Male Screw, Round Pipe Mounting, Adjustable Retention Torque

Part Name

Ball Joint (Female Screw 1-Hole) - Bolt Mounting

Part Number

DFKF-AF

Feature

360° Rotation/±15° in All Directions, Ball Side Male Screw, Front or Rear-Surface Mounting, Adjustable Retention Torque
