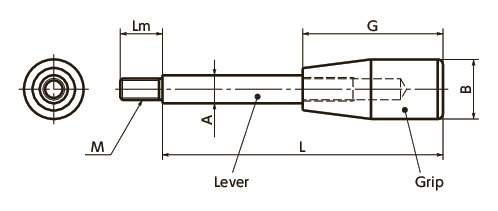

Dimension Drawing
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | Lm | L | A | B | G | Mass (g) |
CAD Download |
Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| LRGS-6-100 | M6 | 1 | 12 | 100 | 8 | 17 | 38 | 40 | CAD | RFQ |
Material/Finish
| LRGS | |
|---|---|
| Lever Part | SUS303 |
| Grip | Phenol Resin (Black) |
Characteristics
- The grip is made of phenol resin. It is highly durable.
-

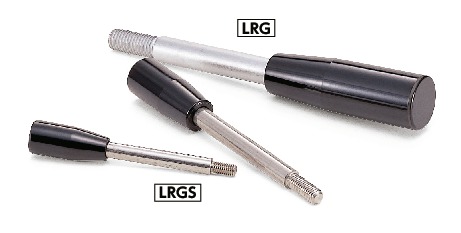

There are two types of the lever part material.
LRG----Made of steel
LRGS----Made of stainless steel
