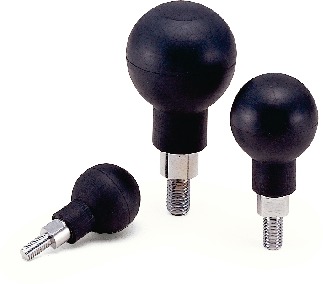

Rubber Ball Revolving Grip

Name: GGB
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

GGB

Safety Precautions

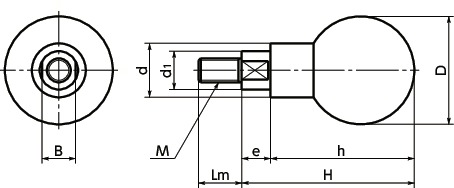

Dimension Drawing

Specs/CAD

Unit : mm

Part Number	D	M (Coarse) Nominal of Thread	Pitch	Lm	d	d₁	H	h	e	B	Mass (g)	CAD Download	Cart
GGB-6	28	M6	1	13	14	10	45.5	37.5	8	8	25	CAD	RFQ
GGB-8	35.5	M8	1.25	15	17.8	13	56.5	47.5	9	10	40	CAD	RFQ
GGB-10	45	M10	1.5	18	22.5	16	72	60	12	14	85	CAD	RFQ

Part Number	D	M (Coarse) Nominal of Thread	Pitch	Lm	d	d₁	H	h	e	B	Mass (g)	CAD Download	Cart
GGB-6	28	M6	1	13	14	10	45.5	37.5	8	8	25	CAD	RFQ
GGB-8	35.5	M8	1.25	15	17.8	13	56.5	47.5	9	10	40	CAD	RFQ
GGB-10	45	M10	1.5	18	22.5	16	72	60	12	14	85	CAD	RFQ

Part Number	D	M (Coarse) Nominal of Thread	Pitch	Lm	d	d₁	H	h	e	B	Mass (g)	CAD Download	Cart
GGB-6	28	M6	1	13	14	10	45.5	37.5	8	8	25	CAD	RFQ
GGB-8	35.5	M8	1.25	15	17.8	13	56.5	47.5	9	10	40	CAD	RFQ
GGB-10	45	M10	1.5	18	22.5	16	72	60	12	14	85	CAD	RFQ

Part Number	D	M (Coarse) Nominal of Thread	Pitch	Lm	d	d₁	H	h	e	B	Mass (g)	CAD Download	Cart
GGB-6	28	M6	1	13	14	10	45.5	37.5	8	8	25	CAD	RFQ
GGB-8	35.5	M8	1.25	15	17.8	13	56.5	47.5	9	10	40	CAD	RFQ
GGB-10	45	M10	1.5	18	22.5	16	72	60	12	14	85	CAD	RFQ

Material/Finish

	GGB
Grip Part	EPDM (Matte Black)
Thread Part	SUM22 Chrome Plating
