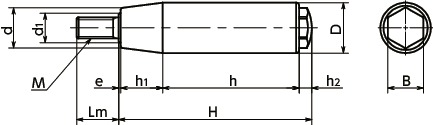

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | D | M (Coarse) Nominal of Thread |
Pitch | Lm | d | d1 | e | H | h | h1 | h2 | B | Mass (g) | CAD Download |
Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GIRS-18-M6-SS | 18 | M6 | 1 | 13 | 13 | 9 | 1 | 71 | 45 | 20 | 5 | 11 | 122 | CAD | RFQ |
| GIRS-20-M8-SS | 20 | M8 | 1.25 | 16 | 15 | 12 | 1 | 76 | 50 | 20 | 5 | 13 | 165 | CAD | RFQ |
| GIRS-24-M10-SS | 24 | M10 | 1.5 | 20 | 19 | 14 | 1 | 92 | 65 | 20 | 6 | 17 | 302 | CAD | RFQ |
Material/Finish
| GIRS-SS | |
|---|---|
| Grip Part | SUS304 |
| Thread Part | SUS304 |
Characteristics
- The revolving grip made of all stainless steel.
- It is superior in corrosion resistance and strength.
- The grip and thread parts can be disassembled so the cleaning work is easy.
- For food machinery and chemical manufacturing devices that require hygiene control.
