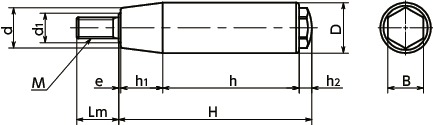

Dimension Drawing
Unit : mm
| Part Number | D | M (Coarse) Nominal of Thread |
Pitch | Lm | d | d1 | e | H | h | h1 | h2 | B | Mass (g) | CAD Download |
Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GIRS-20-M8-SS | 20 | M8 | 1.25 | 16 | 15 | 12 | 1 | 76 | 50 | 20 | 5 | 13 | 165 | CAD | RFQ |
Material/Finish
| GIRS-SS | |
|---|---|
| Grip Part | SUS304 |
| Thread Part | SUS304 |
Characteristics

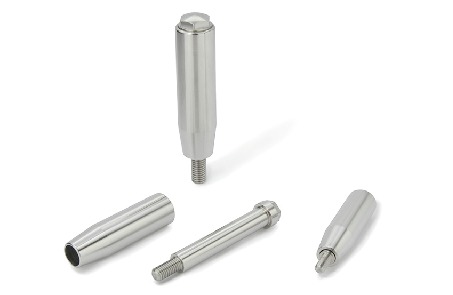

- The revolving grip made of all stainless steel.
- It is superior in corrosion resistance and strength.
- The grip and thread parts can be disassembled so the cleaning work is easy.
- For food machinery and chemical manufacturing devices that require hygiene control.
