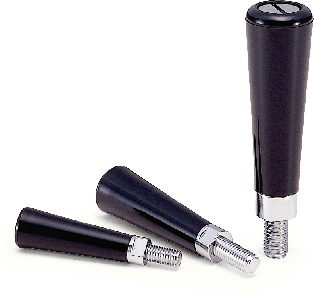

Tapered Revolving Grip

Name: NP
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

Safety Precautions

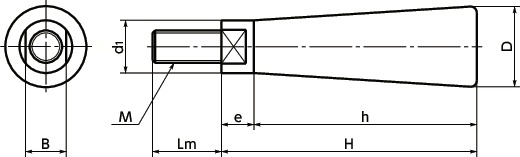

Dimension Drawing

Specs/CAD

Unit : mm

Part Number	D	M (Coarse) Nominal of Thread	Pitch	Lm	d₁	H	h	e	B	Mass (g)	CAD Download	Cart
NP-6	16	M6	1	13	10	50	43	7	8	30	CAD	RFQ
NP-8	20	M8	1.25	16.5	13	63.5	55.5	8	10	40	CAD	RFQ
NP-10	25	M10	1.5	20	16	80	70	10	14	100	CAD	RFQ
NP-12	32	M12	1.75	18	20	102	89	13	17	180	CAD	RFQ

Part Number	D	M (Coarse) Nominal of Thread	Pitch	Lm	d₁	H	h	e	B	Mass (g)	CAD Download	Cart
NP-6	16	M6	1	13	10	50	43	7	8	30	CAD	RFQ
NP-8	20	M8	1.25	16.5	13	63.5	55.5	8	10	40	CAD	RFQ
NP-10	25	M10	1.5	20	16	80	70	10	14	100	CAD	RFQ
NP-12	32	M12	1.75	18	20	102	89	13	17	180	CAD	RFQ

Part Number	D	M (Coarse) Nominal of Thread	Pitch	Lm	d₁	H	h	e	B	Mass (g)	CAD Download	Cart
NP-6	16	M6	1	13	10	50	43	7	8	30	CAD	RFQ
NP-8	20	M8	1.25	16.5	13	63.5	55.5	8	10	40	CAD	RFQ
NP-10	25	M10	1.5	20	16	80	70	10	14	100	CAD	RFQ
NP-12	32	M12	1.75	18	20	102	89	13	17	180	CAD	RFQ

Part Number	D	M (Coarse) Nominal of Thread	Pitch	Lm	d₁	H	h	e	B	Mass (g)	CAD Download	Cart
NP-6	16	M6	1	13	10	50	43	7	8	30	CAD	RFQ
NP-8	20	M8	1.25	16.5	13	63.5	55.5	8	10	40	CAD	RFQ
NP-10	25	M10	1.5	20	16	80	70	10	14	100	CAD	RFQ
NP-12	32	M12	1.75	18	20	102	89	13	17	180	CAD	RFQ

Material/Finish

	NP
Grip Part	Nylon 6
Thread Part	SS400 Chrome Plating
