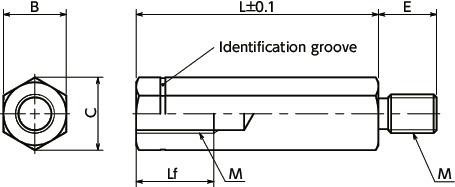

Dimension Drawing
To distinguish SHAL (SUS316L) from SHAS (SUS304), SHAL has a groove on its post.
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | B | C (Approx.) | E | Lf | L | Mass (g) |
CAD Download |
Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| SHAL-M5-20 | M5 | 0.8 | 8 | 9.2 | 7.5 | 10 | 20 | 8.2 | CAD | RFQ |
| SHAL-M5-25 | M5 | 0.8 | 8 | 9.2 | 7.5 | 10 | 25 | 10.3 | CAD | RFQ |
| SHAL-M5-30 | M5 | 0.8 | 8 | 9.2 | 7.5 | 10 | 30 | 12.4 | CAD | RFQ |
| SHAL-M5-35 | M5 | 0.8 | 8 | 9.2 | 7.5 | 10 | 35 | 14.5 | CAD | RFQ |
| SHAL-M5-40 | M5 | 0.8 | 8 | 9.2 | 7.5 | 10 | 40 | 16.7 | CAD | RFQ |
| SHAL-M5-45 | M5 | 0.8 | 8 | 9.2 | 7.5 | 10 | 45 | 18.8 | CAD | RFQ |
| SHAL-M5-50 | M5 | 0.8 | 8 | 9.2 | 7.5 | 10 | 50 | 20.9 | CAD | RFQ |
| SHAL-M5-60 | M5 | 0.8 | 8 | 9.2 | 7.5 | 10 | 60 | 25.1 | CAD | RFQ |
| SHAL-M5-70 | M5 | 0.8 | 8 | 9.2 | 7.5 | 10 | 70 | 29.3 | CAD | RFQ |
| SHAL-M5-80 | M5 | 0.8 | 8 | 9.2 | 7.5 | 10 | 80 | 33.6 | CAD | RFQ |
| SHAL-M5-90 | M5 | 0.8 | 8 | 9.2 | 7.5 | 10 | 90 | 37.8 | CAD | RFQ |
| SHAL-M5-100 | M5 | 0.8 | 8 | 9.2 | 7.5 | 10 | 100 | 42 | CAD | RFQ |
| SHAL-M6-25 | M6 | 1 | 10 | 11.5 | 9 | 12 | 25 | 16 | CAD | RFQ |
| SHAL-M6-30 | M6 | 1 | 10 | 11.5 | 9 | 12 | 30 | 19.4 | CAD | RFQ |
| SHAL-M6-35 | M6 | 1 | 10 | 11.5 | 9 | 12 | 35 | 22.7 | CAD | RFQ |
| SHAL-M6-40 | M6 | 1 | 10 | 11.5 | 9 | 12 | 40 | 26.1 | CAD | RFQ |
| SHAL-M6-45 | M6 | 1 | 10 | 11.5 | 9 | 12 | 45 | 29.4 | CAD | RFQ |
| SHAL-M6-50 | M6 | 1 | 10 | 11.5 | 9 | 12 | 50 | 32.8 | CAD | RFQ |
| SHAL-M6-60 | M6 | 1 | 10 | 11.5 | 9 | 12 | 60 | 39.5 | CAD | RFQ |
| SHAL-M6-70 | M6 | 1 | 10 | 11.5 | 9 | 12 | 70 | 46.2 | CAD | RFQ |
| SHAL-M6-80 | M6 | 1 | 10 | 11.5 | 9 | 12 | 80 | 53 | CAD | RFQ |
| SHAL-M6-90 | M6 | 1 | 10 | 11.5 | 9 | 12 | 90 | 60 | CAD | RFQ |
| SHAL-M6-100 | M6 | 1 | 10 | 11.5 | 9 | 12 | 100 | 66.4 | CAD | RFQ |
| SHAL-M6-120 | M6 | 1 | 10 | 11.5 | 9 | 12 | 120 | 80 | CAD | RFQ |
| SHAL-M6-150 | M6 | 1 | 10 | 11.5 | 9 | 12 | 150 | 100 | CAD | RFQ |
| SHAL-M8-35 | M8 | 1.25 | 13 | 15 | 12 | 16 | 35 | 38 | CAD | RFQ |
| SHAL-M8-40 | M8 | 1.25 | 13 | 15 | 12 | 16 | 40 | 43.7 | CAD | RFQ |
| SHAL-M8-45 | M8 | 1.25 | 13 | 15 | 12 | 16 | 45 | 49.5 | CAD | RFQ |
| SHAL-M8-50 | M8 | 1.25 | 13 | 15 | 12 | 16 | 50 | 55.2 | CAD | RFQ |
| SHAL-M8-60 | M8 | 1.25 | 13 | 15 | 12 | 16 | 60 | 66.7 | CAD | RFQ |
| SHAL-M8-70 | M8 | 1.25 | 13 | 15 | 12 | 16 | 70 | 78.2 | CAD | RFQ |
| SHAL-M8-80 | M8 | 1.25 | 13 | 15 | 12 | 16 | 80 | 90 | CAD | RFQ |
| SHAL-M8-90 | M8 | 1.25 | 13 | 15 | 12 | 16 | 90 | 101 | CAD | RFQ |
| SHAL-M8-100 | M8 | 1.25 | 13 | 15 | 12 | 16 | 100 | 112.6 | CAD | RFQ |
| SHAL-M8-120 | M8 | 1.25 | 13 | 15 | 12 | 16 | 120 | 135.6 | CAD | RFQ |
| SHAL-M8-150 | M8 | 1.25 | 13 | 15 | 12 | 16 | 150 | 170 | CAD | RFQ |
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereMaterial/Finish
| SHAL | |
|---|---|
| Main Body | SUS316L |
Characteristics

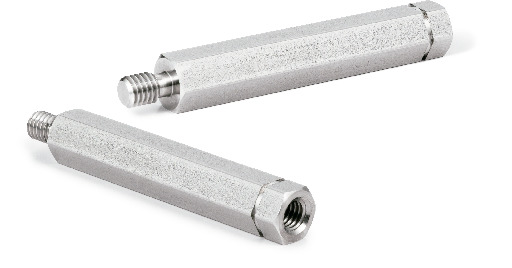

- Hexagon post with male screw on one end and female screw on the other.
- Two or more hexagon posts can also be used in combination.
- Made of SUS316L. It has excellent corrosion resistance.
