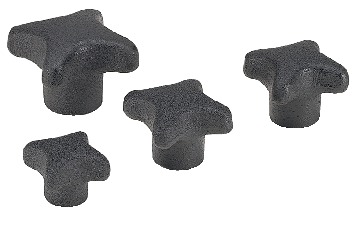

Star Knob

Name: CK
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

Safety Precautions

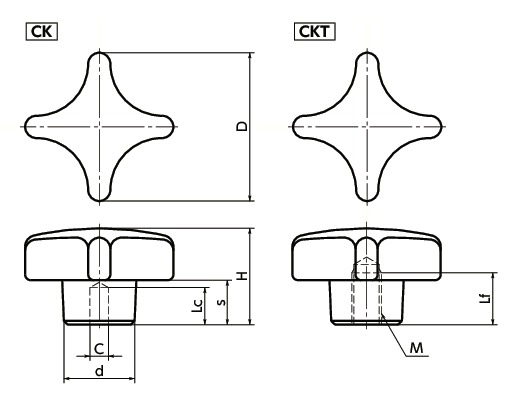

Dimension Drawing

Specs/CAD

Unit : mm

Part Number	D	C	Lc	H	s	d	Mass (g)	CAD Download	Cart
CK-40	40	5	10	25	13	18	75	CAD	RFQ
CK-50	50	5	10	32	18	22	135	CAD	RFQ
CK-63	63	5	10	40	23	26	270	CAD	RFQ

Part Number	D	C	Lc	H	s	d	Mass (g)	CAD Download	Cart
CK-40	40	5	10	25	13	18	75	CAD	RFQ
CK-50	50	5	10	32	18	22	135	CAD	RFQ
CK-63	63	5	10	40	23	26	270	CAD	RFQ

Part Number	D	C	Lc	H	s	d	Mass (g)	CAD Download	Cart
CK-40	40	5	10	25	13	18	75	CAD	RFQ
CK-50	50	5	10	32	18	22	135	CAD	RFQ
CK-63	63	5	10	40	23	26	270	CAD	RFQ

Part Number	D	C	Lc	H	s	d	Mass (g)	CAD Download	Cart
CK-40	40	5	10	25	13	18	75	CAD	RFQ
CK-50	50	5	10	32	18	22	135	CAD	RFQ
CK-63	63	5	10	40	23	26	270	CAD	RFQ

Material/Finish

	CK / CKT
Main body	FC200 Wrinkle Baking Paint (black)

Characteristics

Pilot hole / female screw can be selected by a product code.
CK---- Pilot Hole
CKT---- Female Screw
