KDC-10-RD

Name: KDC-10-RD
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

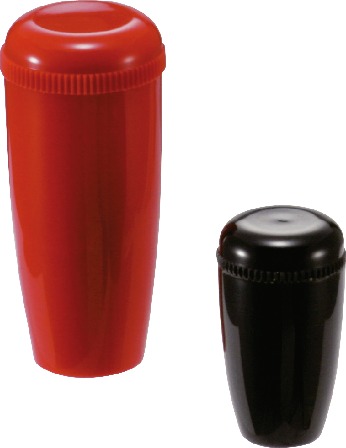

Pillar Grip

Safety Precautions

Dimension Drawing

Part Number	D	M (Coarse) Nominal of Thread	Pitch	Lf	d	H	Mass (g)	Color	CAD Download	Cart
KDC-10-RD	24	M10	1.5	18	16.5	55	26	RD	CAD	RFQ

Part Number	D	M (Coarse) Nominal of Thread	Pitch	Lf	d	H	Mass (g)	Color	CAD Download	Cart
KDC-10-RD	24	M10	1.5	18	16.5	55	26	RD	CAD	RFQ

Part Number	D	M (Coarse) Nominal of Thread	Pitch	Lf	d	H	Mass (g)	Color	CAD Download	Cart
KDC-10-RD	24	M10	1.5	18	16.5	55	26	RD	CAD	RFQ

Part Number	D	M (Coarse) Nominal of Thread	Pitch	Lf	d	H	Mass (g)	Color	CAD Download	Cart
KDC-10-RD	24	M10	1.5	18	16.5	55	26	RD	CAD	RFQ

Material/Finish

	KDC
Grip	Nylon 6 (Various Color)
Thread Part	Brass

Characteristics

There are two color variations. They can be selected by the end symbol of the part number.
End SymbolBK---- Black
End Symbol RD---- Red
