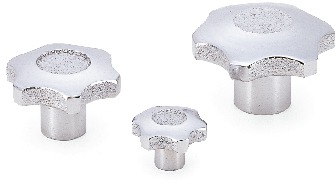

Hexagon Knob

Name: KK
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

Safety Precautions

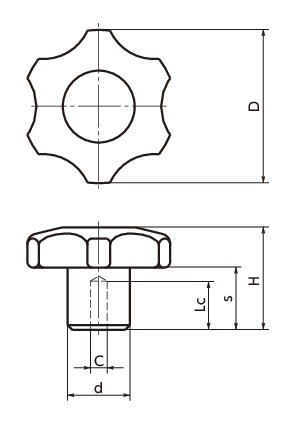

Dimension Drawing

Specs/CAD

Select

C: All; 5

Unit : mm

Part Number	D	Lc	H	s	C	d	Mass (g)	CAD Download	Cart
KK-32	32	10	22	13	5	13	60	CAD	RFQ
KK-40	40	10	25	16	5	16	100	CAD	RFQ
KK-50	50	10	32	20	5	20	200	CAD	RFQ
KK-63	63	10	40	25	5	25	350	CAD	RFQ
KK-80	80	10	50	32	5	32	700	CAD	RFQ

Part Number	D	Lc	H	s	C	d	Mass (g)	CAD Download	Cart
KK-32	32	10	22	13	5	13	60	CAD	RFQ
KK-40	40	10	25	16	5	16	100	CAD	RFQ
KK-50	50	10	32	20	5	20	200	CAD	RFQ
KK-63	63	10	40	25	5	25	350	CAD	RFQ
KK-80	80	10	50	32	5	32	700	CAD	RFQ

Part Number	D	Lc	H	s	C	d	Mass (g)	CAD Download	Cart
KK-32	32	10	22	13	5	13	60	CAD	RFQ
KK-40	40	10	25	16	5	16	100	CAD	RFQ
KK-50	50	10	32	20	5	20	200	CAD	RFQ
KK-63	63	10	40	25	5	25	350	CAD	RFQ
KK-80	80	10	50	32	5	32	700	CAD	RFQ

Part Number	D	Lc	H	s	C	d	Mass (g)	CAD Download	Cart
KK-32	32	10	22	13	5	13	60	CAD	RFQ
KK-40	40	10	25	16	5	16	100	CAD	RFQ
KK-50	50	10	32	20	5	20	200	CAD	RFQ
KK-63	63	10	40	25	5	25	350	CAD	RFQ
KK-80	80	10	50	32	5	32	700	CAD	RFQ

Material/Finish

	KK
Main unit	FC200 Chrome Plating

Characteristics

Types can be selected by a product code.
KK---- Pilot Hole
