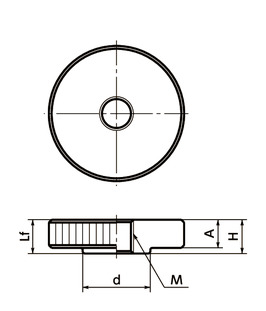

Dimension Drawing

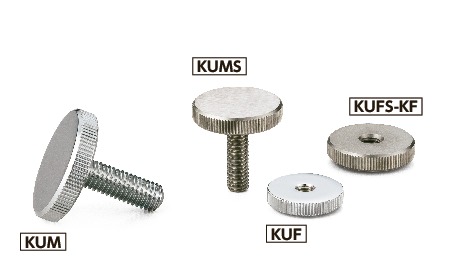

KUM has a round-shaped thread tip to be distinguished from KUMS.
Unit : mm
| Part Number | D | M (Coarse) Nominal of Thread |
Pitch | H | Lf | A | d | Mass (g) |
CAD Download |
Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| KUFS-16-M4 | 16 | M4 | 0.7 | 4 | 4 | 3.5 | 8 | 5 | CAD | RFQ |
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereMaterial/Finish
| KUFS | |
|---|---|
| Main body | SUS303＊1 Hairline Finish |
＊1： For KUMS-36-M10, it is SUS304.
Characteristics
- Flat type knurled knob.
- A rich variety of thread sizes from M3 to M10 are available.
