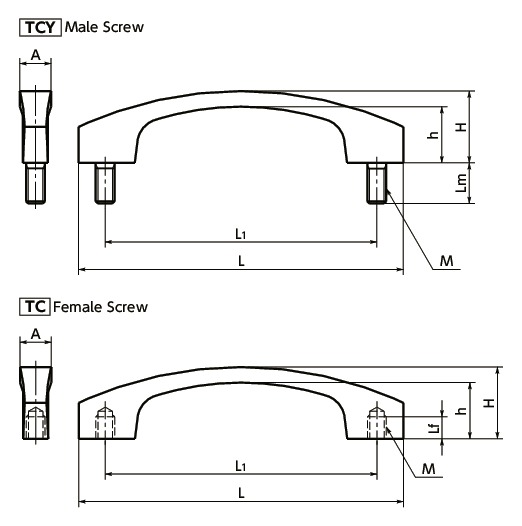

Dimension Drawing
Unit : mm
| Part Number | M | Lf | H | h | A | L | L1 | Mass (g) |
Allowable load＊1 (N) |
Screw supply service Screw size | CAD Download |
Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC-104 | M6 | 8 | 23 | 18 | 10 | 104 | 87 | 50 | 1000 | M6×10 | CAD | RFQ |
＊1： Allowed load for a person.
Material/Finish
| TC | |
|---|---|
| Main body | Zinc die cast Chrome Plating |
| Hex Socket Head Cap Screws (Screw supply service) |
SUSXM7 |
Characteristics

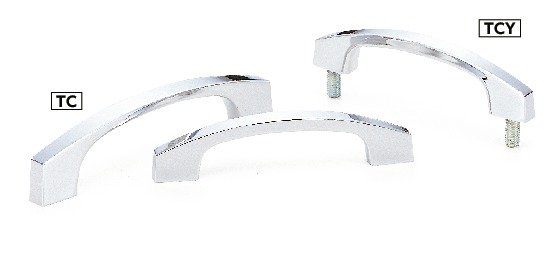

- Male screw / female screw can be selected according to the product code.
TCY---- Male screw
TC---- Female screw - Hex socket head cap screws for mounting (SUSXM7) are available as an option. Use the screw supply service (charged separately).
