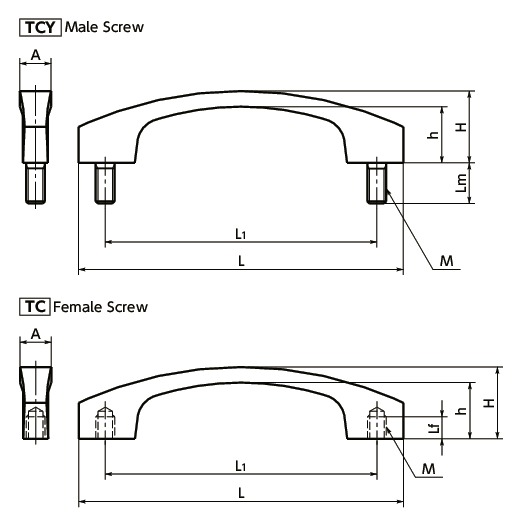

Dimension Drawing
Unit : mm
| Part Number | M | Lm | H | h | A | L | L1 | Mass (g) |
Allowable load＊1 (N) |
CAD Download |
Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TCY-122 | M6 | 13 | 28 | 24 | 11 | 122 | 102 | 85 | 1000 | CAD | RFQ |
＊1： Allowed load for a person.
Material/Finish
| TCY | |
|---|---|
| Main body | Zinc die cast Chrome Plating |
Characteristics

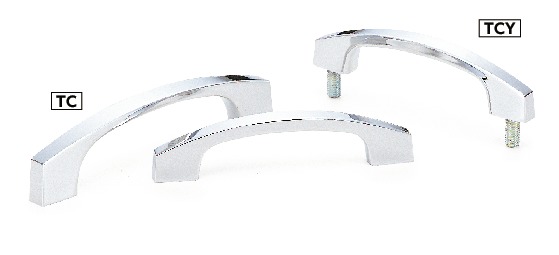

- Male screw / female screw can be selected according to the product code.
TCY---- Male screw
TC---- Female screw
