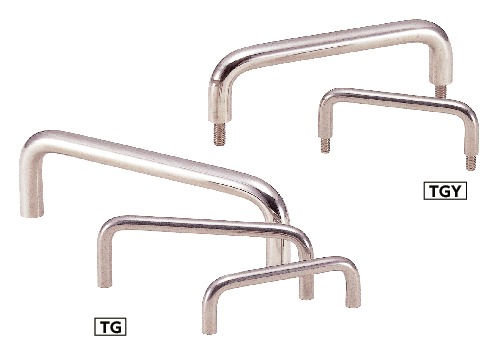

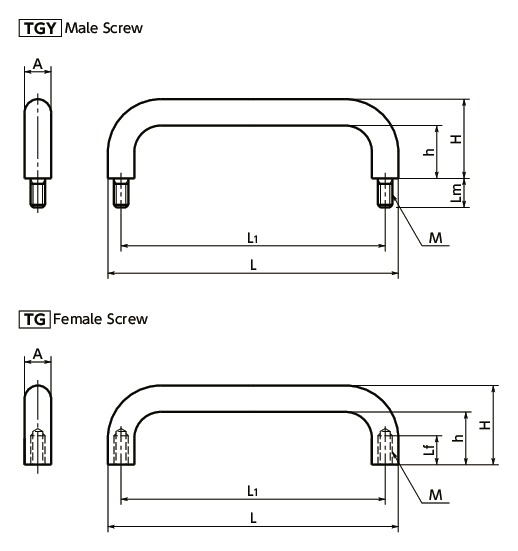

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M | Lm | H | h | A | L | L1 | Mass (g) |
Allowable load＊1 (N) |
Applicable Washer | CAD Download |
Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TGY-86 | M4 | 10 | 30 | 24 | 6 | 86 | 80 | 30 | 1000 | LY-10 | CAD | RFQ |
| TGY-108 | M5 | 10 | 35 | 27 | 8 | 108 | 100 | 62 | 1000 | LY-12 | CAD | RFQ |
| TGY-110 | M5 | 11 | 30 | 20 | 10 | 110 | 100 | 89 | 1000 | LY-16A | CAD | RFQ |
| TGY-128 | M5 | 10 | 40 | 32 | 8 | 128 | 120 | 74 | 1000 | LY-12 | CAD | RFQ |
| TGY-130 | M6 | 11 | 40 | 30 | 10 | 130 | 120 | 114 | 1000 | LY-16 | CAD | RFQ |
＊1： Allowed load for a person.
Material/Finish
| TGY | |
|---|---|
| Main body | SUS303 Buffing |
