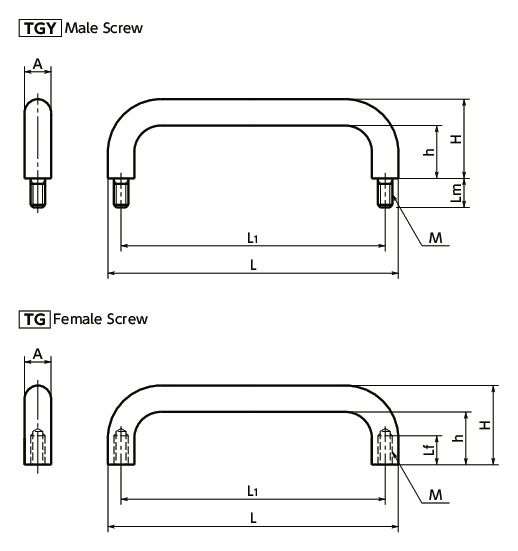

Dimension Drawing
Unit : mm
| Part Number | M | Lm | H | h | A | L | L1 | Mass (g) |
Allowable load＊1 (N) |
Applicable Washer | CAD Download |
Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TGY-128 | M5 | 10 | 40 | 32 | 8 | 128 | 120 | 74 | 1000 | LY-12 | CAD | RFQ |
＊1： Allowed load for a person.
Material/Finish
| TGY | |
|---|---|
| Main body | Stainless Steel Buffing |
Characteristics

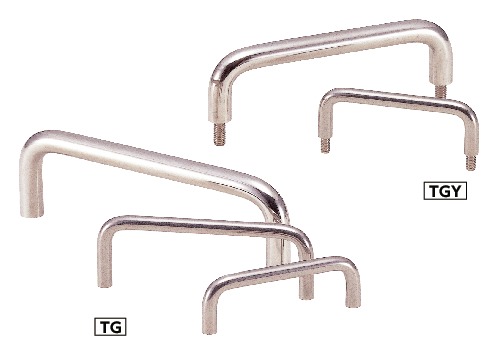

- Pull made of stainless steel.
-
Use it in combination with the washer LY-N
(LYLY-N).
＊Washers are not supplied. -
Male screw/female screw can be selected according to the product code.
TGY---- Male screw
TG---- Female screw
Specification Changes
Please be informed of the following changes to the specifications of our stainless steel pulls.See here for details
https://www.nbk1560.com/news/2025/20250625_TGY_TG/
