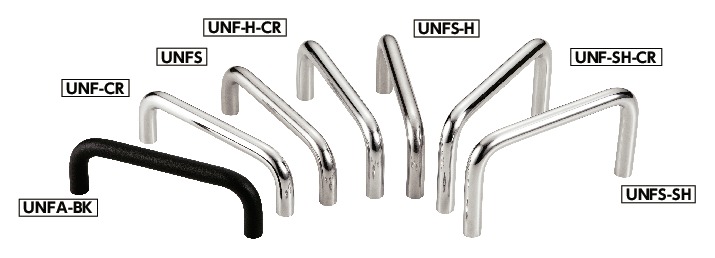

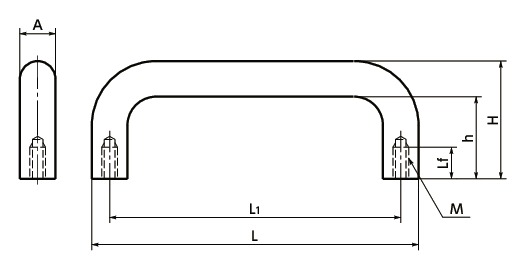

Dimension Drawing
Unit : mm
| Part Number | M | Lf | H | h | A | L | L1 | Mass (g) |
Allowable load＊1 (N) |
Applicable Washer | Body color | Screw supply service Screw size | CAD Download |
Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNF-250H-CR | M5 | 10 | 45 | 35 | 10 | 260 | 250 | 190 | 1000 | ※1 | CR | M5×12 | CAD | RFQ |
＊1： Allowed load for a person.
Material/Finish
| UNF-H-CR | |
|---|---|
| Main body | SS330 Chrome Plating |
| Hex Socket Head Cap Screws (Screw supply service) |
SUSXM7 |
Characteristics
- Hex socket head cap screws for mounting (SUSXM7) are available as an option. Use the screw supply service (charged separately).
