  • Pulls

UNF-125SH-W

Steel U - shaped Pull - with Washer

Steel Pull

Safety Precautions

RoHS Compliant

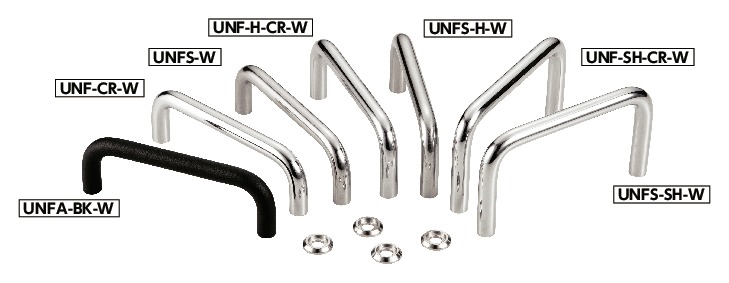

UNF-SH-WSteel U - shaped Pull - with Washer

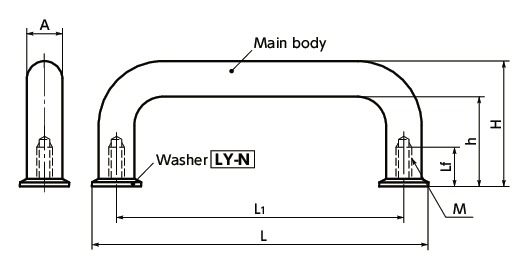

Dimension Drawing

UNF-SH-WSteel U - shaped Pull - with Washer寸法図

Specs/CAD

Select

A
All
10
L1
All
125
SEMI Standard Compliance
All
-

Unit : mm

Part Number H h A L1 L Lf M Mass
(g)		 Max. Allowable Load＊1
(N)		 SEMI Standard Compliance Screw Supply Service Screw Size CAD
Download		 Cart
UNF-125SH-CR-W 61.5 51.5 10 125 141 11.5 M5 138 1000 - M5×12 CAD RFQ
Part Number H h A L1 L Lf M Mass
(g)		 Max. Allowable Load＊1
(N)		 SEMI Standard Compliance Screw Supply Service Screw Size CAD
Download		 Cart
UNF-125SH-CR-W 61.5 51.5 10 125 141 11.5 M5 138 1000 - M5×12 CAD RFQ
Part Number H h A L1 L Lf M Mass
(g)		 Max. Allowable Load＊1
(N)		 SEMI Standard Compliance Screw Supply Service Screw Size CAD
Download		 Cart
UNF-125SH-CR-W 61.5 51.5 10 125 141 11.5 M5 138 1000 - M5×12 CAD RFQ
Part Number H h A L1 L Lf M Mass
(g)		 Max. Allowable Load＊1
(N)		 SEMI Standard Compliance Screw Supply Service Screw Size CAD
Download		 Cart
UNF-125SH-CR-W 61.5 51.5 10 125 141 11.5 M5 138 1000 - M5×12 CAD RFQ

＊1：　Allowed load for a person.

Material/Finish

UNF-SH-CR-W
Main body SS330
Chrome Plating
Washer SUS303
Barrel Polishing
Hex Socket Head Cap Screws
(Screw supply service)		 SUSXM7

Characteristics

  • The type with washer LY-N (LYLY-N). It is highly stable and decorates the mounting part beautifully.
  • Hex socket head cap screws for mounting (SUSXM7) are available as an option. Use the screw supply service (charged separately).
