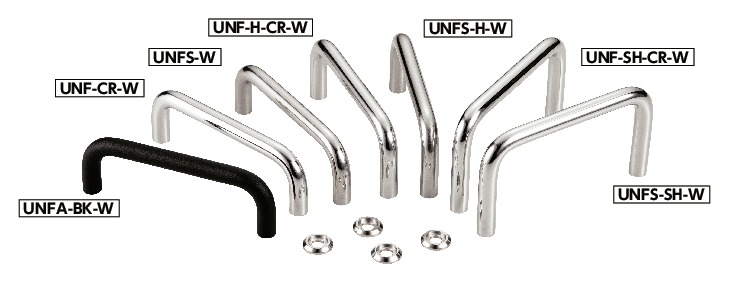

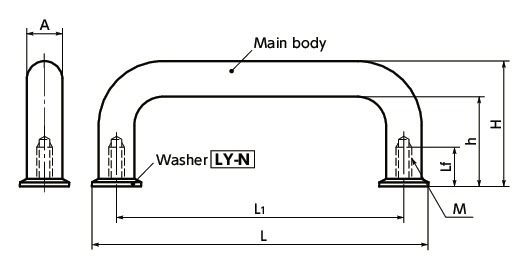

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M | Lf | H | h | A | L1 | L | Max. Allowable Load＊1 (N) |
Mass (g) |
Screw Supply Service Screw Size | CAD Download |
Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNF-80-CR-W | M5 | 11.5 | 38.5 | 28.5 | 10 | 80 | 96 | 1000 | 82 | M5×12 | CAD | RFQ |
＊1： Allowed load for a person.
Material/Finish
| UNF-CR-W | |
|---|---|
| Main body | SS330 Chrome Plating |
| Washer | SUS303 Barrel Polishing |
| Hex Socket Head Cap Screws (Screw supply service) |
SUSXM7 |
