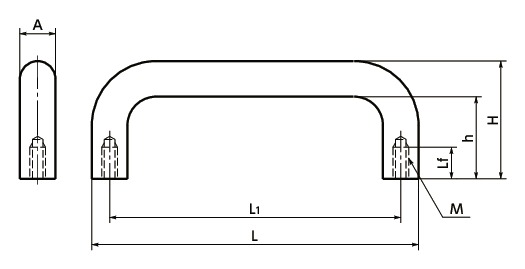

Dimension Drawing
Unit : mm
| Part Number | L1 | M | Lf | H | h | A | L | Mass (g) |
Allowable load＊1 (N) |
Screw supply service Screw size | CAD Download |
Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNFS-80H | 80 | M5 | 10 | 45 | 35 | 10 | 90 | 86 | 1000 | M5×12 | CAD | RFQ |
＊1： Allowed load for a person.
Material/Finish
| UNFS-H | |
|---|---|
| Main body | SUS304 Barrel Polishing |
| Hex Socket Head Cap Screws (Screw supply service) |
SUSXM7 |
Characteristics
- Hex socket head cap screws for mounting (SUSXM7) are available as an option. Use the screw supply service (charged separately).
