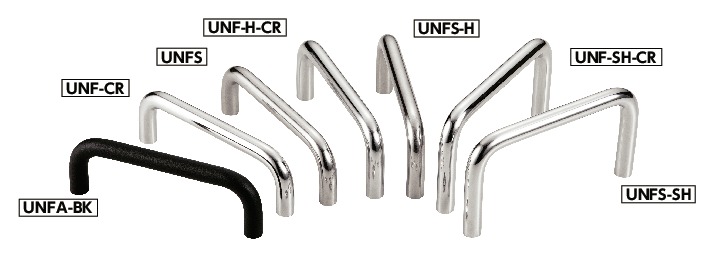

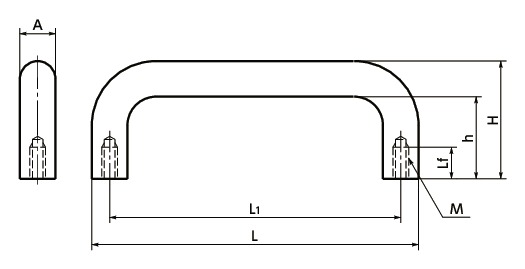

Dimension Drawing
Unit : mm
| Part Number | M | Lf | H | h | A | L | L1 | Mass (g) |
Max. Allowable Load＊1 (N) |
Body Color |
SEMI Standard Compliance | Screw Supply Service Screw Size | CAD Download |
Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNFS-160SH | M5 | 10 | 60 | 50 | 10 | 170 | 160 | 153 | 1000 | BL | ○ | M5×12 | CAD | RFQ |
＊1： Allowed load for a person.
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereMaterial/Finish
| UNFS-SH | |
|---|---|
| Main body | SUS304 Barrel Polishing |
| Hex Socket Head Cap Screws (Screw supply service) |
SUSXM7 |
Characteristics
- Hex socket head cap screws for mounting (SUSXM7) are available as an option. Use the screw supply service (charged separately).
