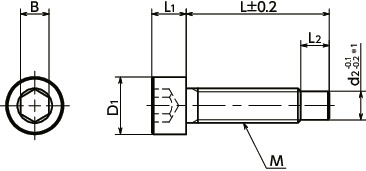

Dimension Drawing
＊1： SDBS-M8：d2-0.3～-0.1
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | L1 | L2 | d2 | D1 | B | Mass (g) |
CAD Download |
Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SDBS-M4-12 | M4 | 0.7 | 12 | 4 | 3 | 3 | 7 | 3 | 1.7 | CAD | RFQ |
| SDBS-M4-16 | M4 | 0.7 | 16 | 4 | 3 | 3 | 7 | 3 | 2.1 | CAD | RFQ |
| SDBS-M4-20 | M4 | 0.7 | 20 | 4 | 3 | 3 | 7 | 3 | 2.4 | CAD | RFQ |
| SDBS-M4-25 | M4 | 0.7 | 25 | 4 | 3 | 3 | 7 | 3 | 2.9 | CAD | RFQ |
| SDBS-M4-30 | M4 | 0.7 | 30 | 4 | 3 | 3 | 7 | 3 | 3.3 | CAD | RFQ |
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereMaterial/Finish
| SDBS | |
|---|---|
| Main Body | Equivalent to SUS304 |

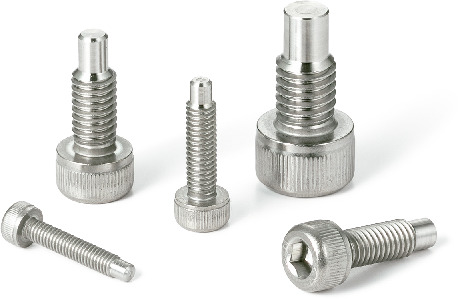

Characteristics
- The screw tip shape is a dog point.
- Use for positioning or as a rotation stopper by fitting the tip dog point shape into the counterpart groove or hole.
