Name: NSC-M
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

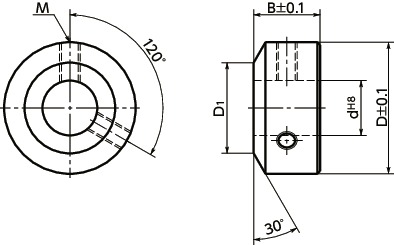

Dimension Drawing

Specs/CAD

Select

d: All; 3; 4; 5; 6; 8; 10; 12; 13; 14; 15; 16; 17; 18; 20; 22; 25; 28; 30; 32; 35; 38; 40; 45; 50

B: All; 5; 6; 8; 10; 12; 15; 7; 18; 14; 16; 20; 22; 25

D: All; 7; 8; 12; 11; 14; 15; 16; 18; 20; 22; 26; 24; 25; 28; 30; 32; 38; 42; 45; 49; 53; 50; 55; 59; 64; 60; 72; 75; 70; 79

Unit : mm

Part Number	d	B	D	D₁	M	Number of Set Screws	Mass (g)	CAD Download	Cart
NSC-3-5-M	3	5	7	－	M3	1	1	CAD	RFQ
NSC-3-6-M	3	6	7	－	M3	1	1	CAD	RFQ
NSC-3-8-M	3	8	7	－	M3	1	2	CAD	RFQ
NSC-4-5-M	4	5	8	－	M3	1	1	CAD	RFQ
NSC-4-6-M	4	6	12	－	M4	1	5	CAD	RFQ
NSC-4-8-M	4	8	12	－	M4	1	6	CAD	RFQ
NSC-5-5-M	5	5	11	－	M3	1	3	CAD	RFQ
NSC-5-6-M	5	6	14	－	M4	1	6	CAD	RFQ
NSC-5-8-M	5	8	14	－	M4	1	8	CAD	RFQ
NSC-5-10-M	5	10	14	－	M4	1	10	CAD	RFQ
NSC-6-5-M	6	5	12	－	M3	2	3	CAD	RFQ
NSC-6-6-M	6	6	15	－	M4	1	7	CAD	RFQ
NSC-6-8-M	6	8	15	－	M4	1	7	CAD	RFQ
NSC-6-10-M	6	10	16	－	M4	1	13	CAD	RFQ
NSC-8-5-M	8	5	14	－	M3	2	4	CAD	RFQ
NSC-8-6-M	8	6	16	13	M4	2	6	CAD	RFQ
NSC-8-8-M	8	8	16	13	M4	2	9	CAD	RFQ
NSC-8-10-M	8	10	18	13	M4	2	15	CAD	RFQ
NSC-10-5-M	10	5	16	－	M3	2	8	CAD	RFQ
NSC-10-6-M	10	6	18	16	M4	2	8	CAD	RFQ
NSC-10-8-M	10	8	18	16	M4	2	10	CAD	RFQ
NSC-10-10-M	10	10	20	16	M4	2	17	CAD	RFQ
NSC-12-6-M	12	6	20	－	M4	2	8	CAD	RFQ
NSC-12-8-M	12	8	22	20	M4	2	16	CAD	RFQ
NSC-12-10-M	12	10	26	20	M5	2	30	CAD	RFQ
NSC-12-12-M	12	12	26	20	M6	2	36	CAD	RFQ
NSC-13-6-M	13	6	20	－	M4	2	8	CAD	RFQ
NSC-13-8-M	13	8	22	20	M4	2	15	CAD	RFQ
NSC-13-10-M	13	10	26	20	M5	2	29	CAD	RFQ
NSC-14-12-M	14	12	26	20	M5	2	33	CAD	RFQ
NSC-15-6-M	15	6	24	－	M4	2	12	CAD	RFQ
NSC-15-8-M	15	8	25	24	M5	2	19	CAD	RFQ
NSC-15-10-M	15	10	25	24	M5	2	24	CAD	RFQ
NSC-15-12-M	15	12	28	24	M5	2	39	CAD	RFQ
NSC-16-6-M	16	6	24	－	M4	2	11	CAD	RFQ
NSC-16-8-M	16	8	28	24	M5	2	24	CAD	RFQ
NSC-16-10-M	16	10	28	24	M5	2	31	CAD	RFQ
NSC-16-12-M	16	12	28	24	M5	2	37	CAD	RFQ
NSC-17-10-M	17	10	30	26	M6	2	35	CAD	RFQ
NSC-17-12-M	17	12	32	26	M6	2	51	CAD	RFQ
NSC-18-15-M	18	15	32	29	M6	2	61	CAD	RFQ
NSC-20-7-M	20	7	30	－	M5	2	21	CAD	RFQ
NSC-20-10-M	20	10	32	29	M6	2	68	CAD	RFQ
NSC-20-12-M	20	12	32	29	M6	2	44	CAD	RFQ
NSC-20-15-M	20	15	32	29	M6	2	55	CAD	RFQ
NSC-22-18-M	22	18	38	34	M8	2	101	CAD	RFQ
NSC-25-12-M	25	12	38	37	M6	2	58	CAD	RFQ
NSC-25-15-M	25	15	38	37	M6	2	72	CAD	RFQ
NSC-25-18-M	25	18	42	38	M8	2	120	CAD	RFQ
NSC-28-18-M	28	18	45	40	M8	2	130	CAD	RFQ
NSC-30-14-M	30	14	45	42	M8	2	92	CAD	RFQ
NSC-30-16-M	30	16	45	42	M8	2	105	CAD	RFQ
NSC-30-18-M	30	18	49	42	M8	2	157	CAD	RFQ
NSC-30-20-M	30	20	49	42	M8	2	176	CAD	RFQ
NSC-32-20-M	32	20	53	44	M8	2	205	CAD	RFQ
NSC-35-15-M	35	15	50	47	M8	2	114	CAD	RFQ
NSC-35-18-M	35	18	55	47	M8	2	188	CAD	RFQ
NSC-35-20-M	35	20	59	47	M8	2	257	CAD	RFQ
NSC-38-22-M	38	22	64	50	M10	2	330	CAD	RFQ
NSC-40-18-M	40	18	60	55	M10	2	211	CAD	RFQ
NSC-40-22-M	40	22	72	55	M10	2	438	CAD	RFQ
NSC-45-22-M	45	22	75	60	M10	2	446	CAD	RFQ
NSC-50-20-M	50	20	70	65	M10	2	284	CAD	RFQ
NSC-50-25-M	50	25	79	65	M10	2	538	CAD	RFQ

●Hex socket set screw is provided.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Hints for Correctly Using NBK Products

The video is an example using NSC-CP2(NSC-CP2). You can perform the same operation using this product.

Material/Finish

	NSC-M
Main Body	S45C Electroless Nickel Plating
Hex Socket Set Screw	SUSXM7

Characteristics

Set screw type set collars.
Fastening to the shaft is done with set screws.
Chamfering on one end is larger (bore diameter 8mm or above).
When fixing the bearing, this avoids interference between the set collar and the outer ring.

Related Services

Laser engraving service

Product List

NSC-M

NSC-10-10-M
NSC-10-5-M
NSC-10-6-M
NSC-10-8-M
NSC-12-10-M
NSC-12-12-M
NSC-12-6-M
NSC-12-8-M
NSC-13-10-M
NSC-13-6-M
NSC-13-8-M
NSC-14-12-M
NSC-15-10-M
NSC-15-12-M
NSC-15-6-M
NSC-15-8-M
NSC-16-10-M
NSC-16-12-M
NSC-16-6-M
NSC-16-8-M
NSC-17-10-M
NSC-17-12-M
NSC-18-15-M
NSC-20-10-M
NSC-20-12-M
NSC-20-15-M
NSC-20-7-M
NSC-22-18-M
NSC-25-12-M
NSC-25-15-M
NSC-25-18-M
NSC-28-18-M
NSC-30-14-M
NSC-30-16-M
NSC-30-18-M
NSC-30-20-M
NSC-32-20-M
NSC-35-15-M
NSC-35-18-M
NSC-35-20-M
NSC-3-5-M
NSC-3-6-M
NSC-38-22-M
NSC-3-8-M
NSC-40-18-M
NSC-40-22-M
NSC-45-22-M
NSC-4-5-M
NSC-4-6-M
NSC-4-8-M
NSC-50-20-M
NSC-50-25-M
NSC-5-10-M
NSC-5-5-M
NSC-5-6-M
NSC-5-8-M
NSC-6-10-M
NSC-6-5-M
NSC-6-6-M
NSC-6-8-M
NSC-8-10-M
NSC-8-5-M
NSC-8-6-M
NSC-8-8-M

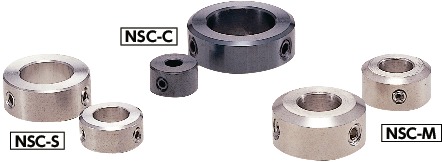

Click here to see Set Collars
