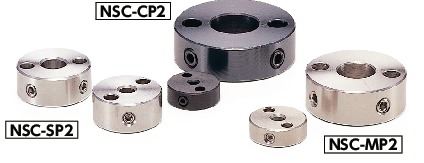

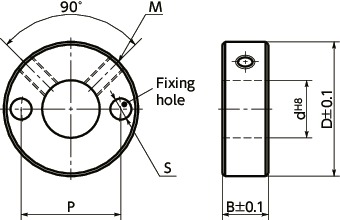

Dimension Drawing
Unit : mm
| Part Number | d | B | D | S | P | M＊1 | Mass (g) |
CAD Download |
Cart |
|---|---|---|---|---|---|---|---|---|---|
| NSC-4-6-MP2 | 4 | 6 | 18 | 3.4 | 12 | M3 | 10 | CAD | RFQ |
●Hex socket set screw is provided.
＊1： If d dimension is 5 or below, one point.
Hints for Correctly Using NBK Products
The video is an example using NSC-CP2(NSC-CP2). You can perform the same operation using this product.
Material/Finish
| NSC-MP2 | |
|---|---|
| Main body | S45C Electroless Nickel Plating |
| Hex Socket Set Screw |
SUSXM7 |
Characteristics
- Set collar with installation hole. It can be installed to any machine and device such as wheels, flanges and plates, by using the fixing hole.
- It is attached to the shaft by the set screws.

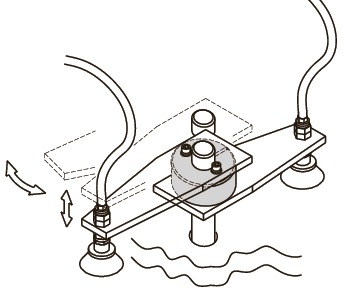

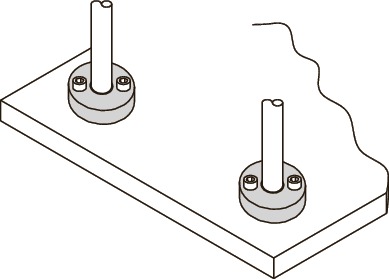

Usage Example
