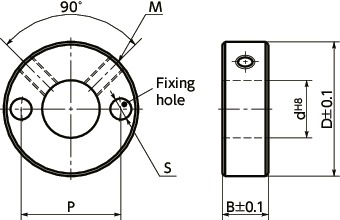

Dimension Drawing
Unit : mm
| Part Number | d | B | D | S | P | M＊1 | Mass (g) |
CAD Download |
Cart |
|---|---|---|---|---|---|---|---|---|---|
| NSC-3-6-SP2 | 3 | 6 | 17 | 3.4 | 11 | M3 | 9 | CAD | RFQ |
●Hex socket set screw is provided.
＊1： If d dimension is 5 or below, one point.
Hints for Correctly Using NBK Products

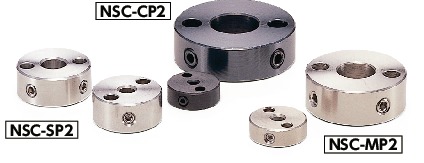

The video is an example using NSC-CP2(NSC-CP2). You can perform the same operation using this product.
Material/Finish
| NSC-SP2 | |
|---|---|
| Main body | SUS304 |
| Hex Socket Set Screw |
SUSXM7 |
Characteristics
- Set collar with installation hole. It can be installed to any machine and device such as wheels, flanges and plates, by using the fixing hole.
- It is attached to the shaft by the set screws.

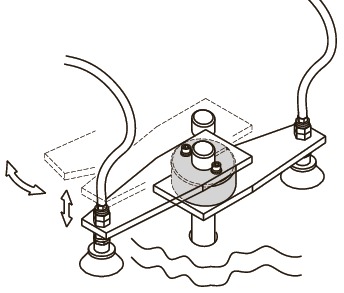

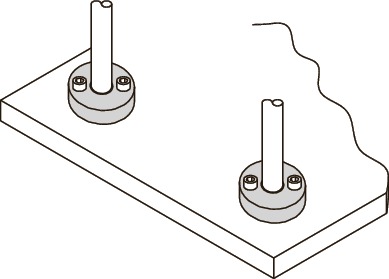

Usage Example
