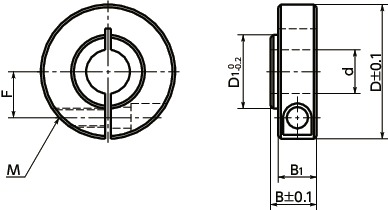

Dimension Drawing
Unit : mm
| Part Number | d | B | B1 | D | D1 | F | M | Mass (g) |
CAD Download |
Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| NSCS-10-11-CB1 | 10 | 11 | 9 | 30 | 14.7 | 9 | M4 | 41 | CAD | RFQ |
●Hex socket head cap screw is provided.
Hints for Correctly Using NBK Products
The video is an example using NSCS-CP2(NSCS-CP2). You can perform the same operation using this product.
Material/Finish
| NSCS-CB | |
|---|---|
| Main body | S45C Ferrosoferric Oxide Film (Black) |
| with Hexagon Socket Bolt |
SCM435 Ferrosoferric Oxide Film (Black) |
Characteristics

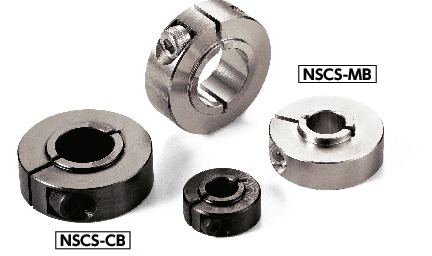

- Set collar for securing bearings.
- It can be fixed by pressing the bearing inner wheel only on the convex of the main body.
- Optimal for securing bearing when it is difficult to fix the snap ring, etc. to the shaft.
- Clamping Type. Mounting and removing are easy. Moreover this does not scratch the shaft.
