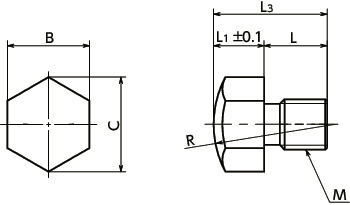

Dimension Drawing
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L3 | L1 | L | B | C (Approx.) | R | Mass (g) |
CAD Download |
Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SPM-M10-B | M10 | 1.5 | 20 | 6 | 14 | 17 | 19.6 | 22 | 16.8 | CAD | RFQ |
Nabeya Bi-tech Kaisha
Customer Service
Please enter questions about customization and other product-related inquiries here.
Find the inquiry form hereMaterial/Finish
| SPM-B | |
|---|---|
| Main Body | S45C Full Quenching (Hardness: 35 HRC or Above) Trivalent Chromate Treatment |
Characteristics
- For workpiece stopper applications.
- The bolt features a rounded hexagonal head.
- Fully quenched. It has excellent wear resistance.
Usage Example
For workpiece stopper applications.
