  • Stopper Bolts・Stopper Screws

SPML-M12

Stopper Bolts - Stainless Steel SUS316L

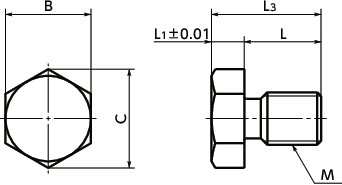

Dimension Drawing

SPMLStopper Bolts - Stainless Steel SUS316L寸法図

Unit : mm

Part Number M (Coarse)
Nominal of Thread
Pitch L3 L1 L B C (Approx.) Mass
(g)
CAD
Download
Cart
SPML-M12 M12 1.75 23 7 16 19 21.9 28.8 CAD RFQ
Part Number M (Coarse)
Nominal of Thread
Pitch L3 L1 L B C (Approx.) Mass
(g)
CAD
Download
Cart
SPML-M12 M12 1.75 23 7 16 19 21.9 28.8 CAD RFQ
Part Number M (Coarse)
Nominal of Thread
Pitch L3 L1 L B C (Approx.) Mass
(g)
CAD
Download
Cart
SPML-M12 M12 1.75 23 7 16 19 21.9 28.8 CAD RFQ
Part Number M (Coarse)
Nominal of Thread
Pitch L3 L1 L B C (Approx.) Mass
(g)
CAD
Download
Cart
SPML-M12 M12 1.75 23 7 16 19 21.9 28.8 CAD RFQ

Material/Finish

SPML
Main Body SUS316L/End Face Polishing

Characteristics

  • Use as a recipient of the stopper bolt SSBS-B and stopper screw SANS-B.SSBS-BSANS-B
  • Made of SUS316L. It has excellent corrosion resistance.

Usage Example

In combination with stopper screw SANS-B.
