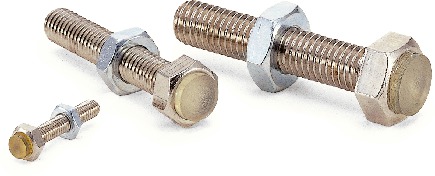

Stopper Bolt with Urethane Pad

SUB

Safety Precautions

RoHS Compliant

SUBStopper Bolt with Urethane Pad

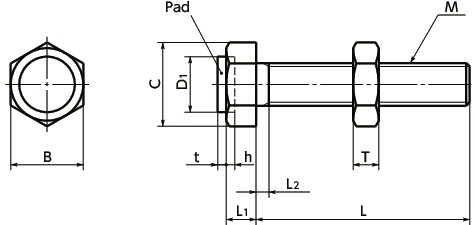

Dimension Drawing

SUBStopper Bolt with Urethane Pad寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M4
M5
M6
M8
M10

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch D1 L L2 t B C T L1 h Mass
(g)		 CAD
Download		 Cart
SUB-M4-15 M4 0.7 5 15 3 1.5 7 8.1 2.4 2.8 1.5 2.1 CAD RFQ
SUB-M4-20 M4 0.7 5 20 3 1.5 7 8.1 2.4 2.8 1.5 2.5 CAD RFQ
SUB-M4-25 M4 0.7 5 25 3 1.5 7 8.1 2.4 2.8 1.5 3 CAD RFQ
SUB-M4-30 M4 0.7 5 30 3 1.5 7 8.1 2.4 2.8 1.5 3.3 CAD RFQ
SUB-M4-35 M4 0.7 5 35 3 1.5 7 8.1 2.4 2.8 1.5 4 CAD RFQ
SUB-M4-40 M4 0.7 5 40 3 1.5 7 8.1 2.4 2.8 1.5 4.1 CAD RFQ
SUB-M5-15 M5 0.8 6 15 3 1.5 8 9.2 3.2 3.5 1.5 3.3 CAD RFQ
SUB-M5-20 M5 0.8 6 20 3 1.5 8 9.2 3.2 3.5 1.5 4 CAD RFQ
SUB-M5-25 M5 0.8 6 25 3 1.5 8 9.2 3.2 3.5 1.5 4.6 CAD RFQ
SUB-M5-30 M5 0.8 6 30 3 1.5 8 9.2 3.2 3.5 1.5 5.3 CAD RFQ
SUB-M5-35 M5 0.8 6 35 3 1.5 8 9.2 3.2 3.5 1.5 6 CAD RFQ
SUB-M5-40 M5 0.8 6 40 3 1.5 8 9.2 3.2 3.5 1.5 6.6 CAD RFQ
SUB-M6-20 M6 1 8 20 3 2 10 11.5 3.6 4 2 6.3 CAD RFQ
SUB-M6-25 M6 1 8 25 3 2 10 11.5 3.6 4 2 7.2 CAD RFQ
SUB-M6-30 M6 1 8 30 3 2 10 11.5 3.6 4 2 8 CAD RFQ
SUB-M6-35 M6 1 8 35 3 2 10 11.5 3.6 4 2 9 CAD RFQ
SUB-M6-40 M6 1 8 40 3 2 10 11.5 3.6 4 2 10 CAD RFQ
SUB-M6-45 M6 1 8 45 3 2 10 11.5 3.6 4 2 11 CAD RFQ
SUB-M6-50 M6 1 8 50 3 2 10 11.5 3.6 4 2 11.7 CAD RFQ
SUB-M8-20 M8 1.25 10 20 3 2 13 15 5 5.5 2 12.7 CAD RFQ
SUB-M8-25 M8 1.25 10 25 3 2 13 15 5 5.5 2 14.4 CAD RFQ
SUB-M8-30 M8 1.25 10 30 3 2 13 15 5 5.5 2 16 CAD RFQ
SUB-M8-35 M8 1.25 10 35 3 2 13 15 5 5.5 2 18 CAD RFQ
SUB-M8-40 M8 1.25 10 40 3 2 13 15 5 5.5 2 19.6 CAD RFQ
SUB-M8-45 M8 1.25 10 45 3 2 13 15 5 5.5 2 21.3 CAD RFQ
SUB-M8-50 M8 1.25 10 50 3 2 13 15 5 5.5 2 23 CAD RFQ
SUB-M10-20 M10 1.5 13 20 3 2 17 19.6 6 7 2 24 CAD RFQ
SUB-M10-25 M10 1.5 13 25 3 2 17 19.6 6 7 2 26.5 CAD RFQ
SUB-M10-30 M10 1.5 13 30 3 2 17 19.6 6 7 2 29 CAD RFQ
SUB-M10-35 M10 1.5 13 35 3 2 17 19.6 6 7 2 31.5 CAD RFQ
SUB-M10-40 M10 1.5 13 40 3 2 17 19.6 6 7 2 34 CAD RFQ
SUB-M10-45 M10 1.5 13 45 3 2 17 19.6 6 7 2 36.5 CAD RFQ
SUB-M10-50 M10 1.5 13 50 3 2 17 19.6 6 7 2 39 CAD RFQ
Part Number M (Coarse)
Nominal of Thread		 Pitch D1 L L2 t B C T L1 h Mass
(g)		 CAD
Download		 Cart
SUB-M4-15 M4 0.7 5 15 3 1.5 7 8.1 2.4 2.8 1.5 2.1 CAD RFQ
SUB-M4-20 M4 0.7 5 20 3 1.5 7 8.1 2.4 2.8 1.5 2.5 CAD RFQ
SUB-M4-25 M4 0.7 5 25 3 1.5 7 8.1 2.4 2.8 1.5 3 CAD RFQ
SUB-M4-30 M4 0.7 5 30 3 1.5 7 8.1 2.4 2.8 1.5 3.3 CAD RFQ
SUB-M4-35 M4 0.7 5 35 3 1.5 7 8.1 2.4 2.8 1.5 4 CAD RFQ
SUB-M4-40 M4 0.7 5 40 3 1.5 7 8.1 2.4 2.8 1.5 4.1 CAD RFQ
SUB-M5-15 M5 0.8 6 15 3 1.5 8 9.2 3.2 3.5 1.5 3.3 CAD RFQ
SUB-M5-20 M5 0.8 6 20 3 1.5 8 9.2 3.2 3.5 1.5 4 CAD RFQ
SUB-M5-25 M5 0.8 6 25 3 1.5 8 9.2 3.2 3.5 1.5 4.6 CAD RFQ
SUB-M5-30 M5 0.8 6 30 3 1.5 8 9.2 3.2 3.5 1.5 5.3 CAD RFQ
SUB-M5-35 M5 0.8 6 35 3 1.5 8 9.2 3.2 3.5 1.5 6 CAD RFQ
SUB-M5-40 M5 0.8 6 40 3 1.5 8 9.2 3.2 3.5 1.5 6.6 CAD RFQ
SUB-M6-20 M6 1 8 20 3 2 10 11.5 3.6 4 2 6.3 CAD RFQ
SUB-M6-25 M6 1 8 25 3 2 10 11.5 3.6 4 2 7.2 CAD RFQ
SUB-M6-30 M6 1 8 30 3 2 10 11.5 3.6 4 2 8 CAD RFQ
SUB-M6-35 M6 1 8 35 3 2 10 11.5 3.6 4 2 9 CAD RFQ
SUB-M6-40 M6 1 8 40 3 2 10 11.5 3.6 4 2 10 CAD RFQ
SUB-M6-45 M6 1 8 45 3 2 10 11.5 3.6 4 2 11 CAD RFQ
SUB-M6-50 M6 1 8 50 3 2 10 11.5 3.6 4 2 11.7 CAD RFQ
SUB-M8-20 M8 1.25 10 20 3 2 13 15 5 5.5 2 12.7 CAD RFQ
SUB-M8-25 M8 1.25 10 25 3 2 13 15 5 5.5 2 14.4 CAD RFQ
SUB-M8-30 M8 1.25 10 30 3 2 13 15 5 5.5 2 16 CAD RFQ
SUB-M8-35 M8 1.25 10 35 3 2 13 15 5 5.5 2 18 CAD RFQ
SUB-M8-40 M8 1.25 10 40 3 2 13 15 5 5.5 2 19.6 CAD RFQ
SUB-M8-45 M8 1.25 10 45 3 2 13 15 5 5.5 2 21.3 CAD RFQ
SUB-M8-50 M8 1.25 10 50 3 2 13 15 5 5.5 2 23 CAD RFQ
SUB-M10-20 M10 1.5 13 20 3 2 17 19.6 6 7 2 24 CAD RFQ
SUB-M10-25 M10 1.5 13 25 3 2 17 19.6 6 7 2 26.5 CAD RFQ
SUB-M10-30 M10 1.5 13 30 3 2 17 19.6 6 7 2 29 CAD RFQ
SUB-M10-35 M10 1.5 13 35 3 2 17 19.6 6 7 2 31.5 CAD RFQ
SUB-M10-40 M10 1.5 13 40 3 2 17 19.6 6 7 2 34 CAD RFQ
SUB-M10-45 M10 1.5 13 45 3 2 17 19.6 6 7 2 36.5 CAD RFQ
SUB-M10-50 M10 1.5 13 50 3 2 17 19.6 6 7 2 39 CAD RFQ
Part Number M (Coarse)
Nominal of Thread		 Pitch D1 L L2 t B C T L1 h Mass
(g)		 CAD
Download		 Cart
SUB-M4-15 M4 0.7 5 15 3 1.5 7 8.1 2.4 2.8 1.5 2.1 CAD RFQ
SUB-M4-20 M4 0.7 5 20 3 1.5 7 8.1 2.4 2.8 1.5 2.5 CAD RFQ
SUB-M4-25 M4 0.7 5 25 3 1.5 7 8.1 2.4 2.8 1.5 3 CAD RFQ
SUB-M4-30 M4 0.7 5 30 3 1.5 7 8.1 2.4 2.8 1.5 3.3 CAD RFQ
SUB-M4-35 M4 0.7 5 35 3 1.5 7 8.1 2.4 2.8 1.5 4 CAD RFQ
SUB-M4-40 M4 0.7 5 40 3 1.5 7 8.1 2.4 2.8 1.5 4.1 CAD RFQ
SUB-M5-15 M5 0.8 6 15 3 1.5 8 9.2 3.2 3.5 1.5 3.3 CAD RFQ
SUB-M5-20 M5 0.8 6 20 3 1.5 8 9.2 3.2 3.5 1.5 4 CAD RFQ
SUB-M5-25 M5 0.8 6 25 3 1.5 8 9.2 3.2 3.5 1.5 4.6 CAD RFQ
SUB-M5-30 M5 0.8 6 30 3 1.5 8 9.2 3.2 3.5 1.5 5.3 CAD RFQ
SUB-M5-35 M5 0.8 6 35 3 1.5 8 9.2 3.2 3.5 1.5 6 CAD RFQ
SUB-M5-40 M5 0.8 6 40 3 1.5 8 9.2 3.2 3.5 1.5 6.6 CAD RFQ
SUB-M6-20 M6 1 8 20 3 2 10 11.5 3.6 4 2 6.3 CAD RFQ
SUB-M6-25 M6 1 8 25 3 2 10 11.5 3.6 4 2 7.2 CAD RFQ
SUB-M6-30 M6 1 8 30 3 2 10 11.5 3.6 4 2 8 CAD RFQ
SUB-M6-35 M6 1 8 35 3 2 10 11.5 3.6 4 2 9 CAD RFQ
SUB-M6-40 M6 1 8 40 3 2 10 11.5 3.6 4 2 10 CAD RFQ
SUB-M6-45 M6 1 8 45 3 2 10 11.5 3.6 4 2 11 CAD RFQ
SUB-M6-50 M6 1 8 50 3 2 10 11.5 3.6 4 2 11.7 CAD RFQ
SUB-M8-20 M8 1.25 10 20 3 2 13 15 5 5.5 2 12.7 CAD RFQ
SUB-M8-25 M8 1.25 10 25 3 2 13 15 5 5.5 2 14.4 CAD RFQ
SUB-M8-30 M8 1.25 10 30 3 2 13 15 5 5.5 2 16 CAD RFQ
SUB-M8-35 M8 1.25 10 35 3 2 13 15 5 5.5 2 18 CAD RFQ
SUB-M8-40 M8 1.25 10 40 3 2 13 15 5 5.5 2 19.6 CAD RFQ
SUB-M8-45 M8 1.25 10 45 3 2 13 15 5 5.5 2 21.3 CAD RFQ
SUB-M8-50 M8 1.25 10 50 3 2 13 15 5 5.5 2 23 CAD RFQ
SUB-M10-20 M10 1.5 13 20 3 2 17 19.6 6 7 2 24 CAD RFQ
SUB-M10-25 M10 1.5 13 25 3 2 17 19.6 6 7 2 26.5 CAD RFQ
SUB-M10-30 M10 1.5 13 30 3 2 17 19.6 6 7 2 29 CAD RFQ
SUB-M10-35 M10 1.5 13 35 3 2 17 19.6 6 7 2 31.5 CAD RFQ
SUB-M10-40 M10 1.5 13 40 3 2 17 19.6 6 7 2 34 CAD RFQ
SUB-M10-45 M10 1.5 13 45 3 2 17 19.6 6 7 2 36.5 CAD RFQ
SUB-M10-50 M10 1.5 13 50 3 2 17 19.6 6 7 2 39 CAD RFQ
Part Number M (Coarse)
Nominal of Thread		 Pitch D1 L L2 t B C T L1 h Mass
(g)		 CAD
Download		 Cart
SUB-M4-15 M4 0.7 5 15 3 1.5 7 8.1 2.4 2.8 1.5 2.1 CAD RFQ
SUB-M4-20 M4 0.7 5 20 3 1.5 7 8.1 2.4 2.8 1.5 2.5 CAD RFQ
SUB-M4-25 M4 0.7 5 25 3 1.5 7 8.1 2.4 2.8 1.5 3 CAD RFQ
SUB-M4-30 M4 0.7 5 30 3 1.5 7 8.1 2.4 2.8 1.5 3.3 CAD RFQ
SUB-M4-35 M4 0.7 5 35 3 1.5 7 8.1 2.4 2.8 1.5 4 CAD RFQ
SUB-M4-40 M4 0.7 5 40 3 1.5 7 8.1 2.4 2.8 1.5 4.1 CAD RFQ
SUB-M5-15 M5 0.8 6 15 3 1.5 8 9.2 3.2 3.5 1.5 3.3 CAD RFQ
SUB-M5-20 M5 0.8 6 20 3 1.5 8 9.2 3.2 3.5 1.5 4 CAD RFQ
SUB-M5-25 M5 0.8 6 25 3 1.5 8 9.2 3.2 3.5 1.5 4.6 CAD RFQ
SUB-M5-30 M5 0.8 6 30 3 1.5 8 9.2 3.2 3.5 1.5 5.3 CAD RFQ
SUB-M5-35 M5 0.8 6 35 3 1.5 8 9.2 3.2 3.5 1.5 6 CAD RFQ
SUB-M5-40 M5 0.8 6 40 3 1.5 8 9.2 3.2 3.5 1.5 6.6 CAD RFQ
SUB-M6-20 M6 1 8 20 3 2 10 11.5 3.6 4 2 6.3 CAD RFQ
SUB-M6-25 M6 1 8 25 3 2 10 11.5 3.6 4 2 7.2 CAD RFQ
SUB-M6-30 M6 1 8 30 3 2 10 11.5 3.6 4 2 8 CAD RFQ
SUB-M6-35 M6 1 8 35 3 2 10 11.5 3.6 4 2 9 CAD RFQ
SUB-M6-40 M6 1 8 40 3 2 10 11.5 3.6 4 2 10 CAD RFQ
SUB-M6-45 M6 1 8 45 3 2 10 11.5 3.6 4 2 11 CAD RFQ
SUB-M6-50 M6 1 8 50 3 2 10 11.5 3.6 4 2 11.7 CAD RFQ
SUB-M8-20 M8 1.25 10 20 3 2 13 15 5 5.5 2 12.7 CAD RFQ
SUB-M8-25 M8 1.25 10 25 3 2 13 15 5 5.5 2 14.4 CAD RFQ
SUB-M8-30 M8 1.25 10 30 3 2 13 15 5 5.5 2 16 CAD RFQ
SUB-M8-35 M8 1.25 10 35 3 2 13 15 5 5.5 2 18 CAD RFQ
SUB-M8-40 M8 1.25 10 40 3 2 13 15 5 5.5 2 19.6 CAD RFQ
SUB-M8-45 M8 1.25 10 45 3 2 13 15 5 5.5 2 21.3 CAD RFQ
SUB-M8-50 M8 1.25 10 50 3 2 13 15 5 5.5 2 23 CAD RFQ
SUB-M10-20 M10 1.5 13 20 3 2 17 19.6 6 7 2 24 CAD RFQ
SUB-M10-25 M10 1.5 13 25 3 2 17 19.6 6 7 2 26.5 CAD RFQ
SUB-M10-30 M10 1.5 13 30 3 2 17 19.6 6 7 2 29 CAD RFQ
SUB-M10-35 M10 1.5 13 35 3 2 17 19.6 6 7 2 31.5 CAD RFQ
SUB-M10-40 M10 1.5 13 40 3 2 17 19.6 6 7 2 34 CAD RFQ
SUB-M10-45 M10 1.5 13 45 3 2 17 19.6 6 7 2 36.5 CAD RFQ
SUB-M10-50 M10 1.5 13 50 3 2 17 19.6 6 7 2 39 CAD RFQ

Material/Finish

SUB
Thread Part Steel
Nickel Plating
Pad Polyether Urethane (Hardness Shore A90) ＊1
Lock Nut Steel
Trivalent Chromate Treatment

＊1：　While polyether urethane may show yellow discoloration, the performance remains unaffected.


Characteristics

  • For workpiece positioning and stopper applications.
  • Pad is made of polyurethane. The material has excellent water resistance and has low risk of hydrolysis in humid environments.
  • Urethane absorbs impacts.
  • All products are provided with a lock nut.
