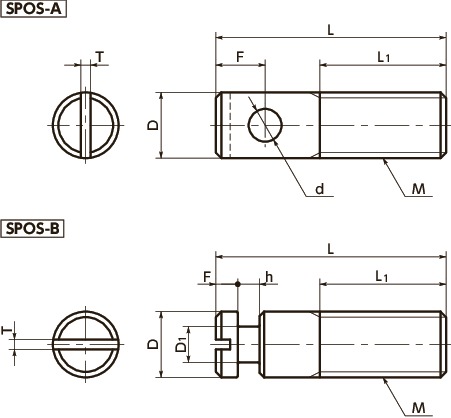

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | L1 | D | F | d | T | Mass (g) | CAD Download |
Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SPOS-M3-10-A | M3 | 0.5 | 10 | 5 | 3 | 3 | 1.5 | 1.2 | 0.6 | CAD | RFQ |
| SPOS-M3-15-A | M3 | 0.5 | 15 | 10 | 3 | 3 | 1.5 | 1.2 | 0.9 | CAD | RFQ |
Material/Finish
| SPOS | |
|---|---|
| Main Body | SUS303 |
Characteristics

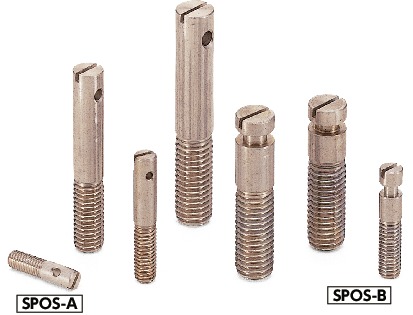

- Post for tensile coil spring.
-
There are bore type and groove type.
SPOS-A----Bore type
SPOS-B----Groove type
