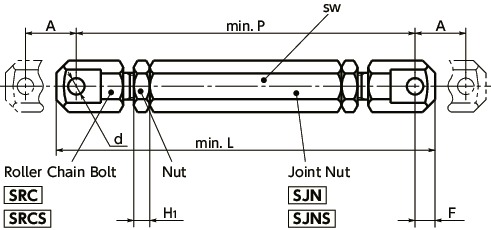

Dimension Drawing
Unit : mm
Material/Finish

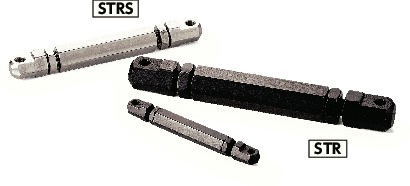

| STR Made of Steel | |
|---|---|
| Joint Nut SJNSJNS |
SUM22L Ferrosoferric Oxide Film (Black) |
| Roller Chain Bolt SRCSRCS |
S45C (hardness: 35-45 HRC) Ferrosoferric Oxide Film (Black) |
| Nut | SS400 Ferrosoferric Oxide Film (Black) |
Characteristics
- For chain tension adjustment.
- Use the same thread fitting length for both-side roller chain bolt SRCSRCS.

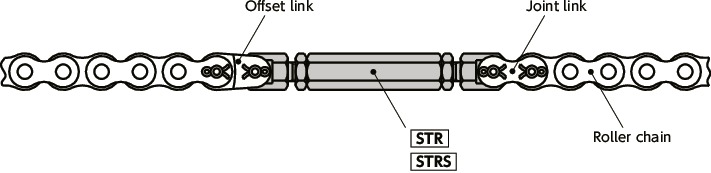

- For linkage with a roller chain, a roller chain joint link or offset link is required.
Precautions for Use
- If a turn buckle is used for a suspension device, implement safety measures to keep people from being beneath the device.
- Turn buckles are consumables. Regular inspection and replacement is necessary.
- Refer to SRC（SRC） for max. load.
Usage Example
