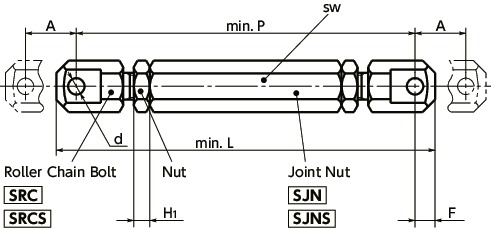

Dimension Drawing
Unit : mm
Material/Finish
| STRS Made of Stainless Steel | |
|---|---|
| Joint Nut SJNSJNS |
SUS303 |
| Roller Chain Bolt SRCSRCS |
SUS303 |
| Nut | SUS303 |
Characteristics
- For chain tension adjustment.
- Use the same thread fitting length for both-side roller chain bolt SRCSRCS.
- For linkage with a roller chain, a roller chain joint link or offset link is required.
Precautions for Use
- If a turn buckle is used for a suspension device, implement safety measures to keep people from being beneath the device.
- Turn buckles are consumables. Regular inspection and replacement is necessary.
- Refer to SRCS（SRCS） for max. load.

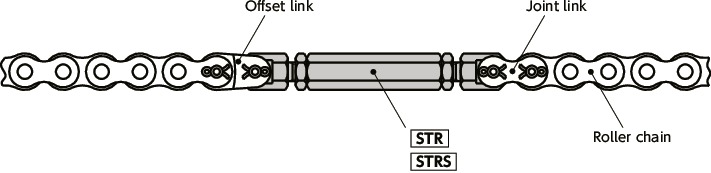

Usage Example
