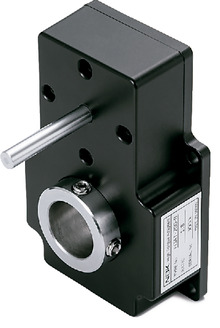

- Useful in locations requiring high torque, as it reduces the rotation speed of EPU-210 (EPU-210) and EPU-220 (EPU-220) to amplify the torque.
- For mounting to EPU-210 and EPU-220, a collar and hex socket set screws as well as four hex socket head cap screws for mounting to equipment (M4 × 12 mm) are provided.

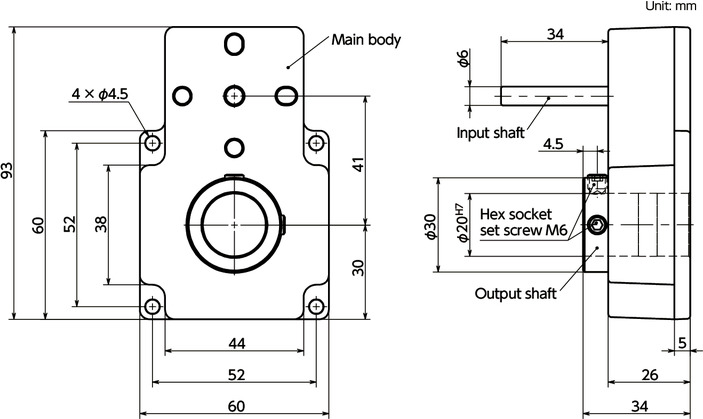

Dimension Drawing
| Part Number | Mass (g) |
Cart |
|---|---|---|
| EOAT-200-4 | 359 | RFQ |
| EOAT-200-8 | 361 | RFQ |
Material/Finish
| EOAT-200 | |
|---|---|
| Main Body | ADC12 Acrylic Coating (Matte Black) |
| Input Shaft | SUS304 |
| Output Shaft | SUS304 |
| Hex Socket Set Screw | SUSXM7 |
| Collar (Supplied Items) |
SUS304 |
| Hex Socket Head Cap Screw (Supplied Items) |
SUSXM7 |
Performance
| EOAT-200-4 | EOAT-200-8 | ||
|---|---|---|---|
| Deceleration Ratio | 4 | 8 | |
| Rated Torque | 2.7 N・m | 5.4 N・m | |
| Output Shaft Rotational Direction |
Same Direction as Input Shaft | ||
| Output Shaft Max. Allowable Load |
Radial Load | 190 N (10 mm Distance from Mounting Surface) | |
| Thrust Load | 155 N | ||
| Output Shaft Retention Torque | 2.5 N・m＊1 | 5 N・m＊1 | |
| Backlash | 1° or Less | ||
| Range of Allowable Operating Temperature |
-5°C to 55°C (no freezing) | ||
＊1： Values when mounted on EPU-210 and EPU-220 are for reference only. They are not guaranteed values.
