  • Auto-Positioning Units

Collars

EOCL-200

CAD

RoHS Compliant

EOCL-200Collars

Available Area

Japan, the US, Canada, Mexico, China, Taiwan, South Korea, and Europe

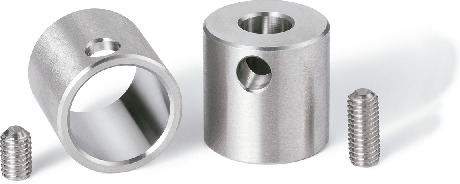

Characteristics

  • Collar for EPU-210 (EPU-210) EPU-220 (EPU-220).
  • EPU-210 and EPU-220 bore diameter can be changed to match the rotation axis.
  • Made of stainless steel superior in corrosion resistance.
  • All products are provided with hex socket set screws.

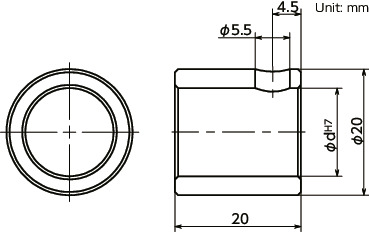

Dimension Drawing

EOCL-200Collars寸法図

Unit : mm

Part Number d Mass
(g)		 Cart
EOCL-200-6 6 46 RFQ
EOCL-200-8 8 43 RFQ
EOCL-200-10 10 38 RFQ
EOCL-200-12 12 32 RFQ
EOCL-200-14 14 26 RFQ
EOCL-200-15 15 23 RFQ
EOCL-200-16 16 19 RFQ

Material/Finish

EOCL-200
Main Body SUS304
Hex Socket Set Screw SUSXM7

Mounting

① Insert EOCL-200 onto the EPU-210EPU-220 output shaft.

EOCL-200Collars

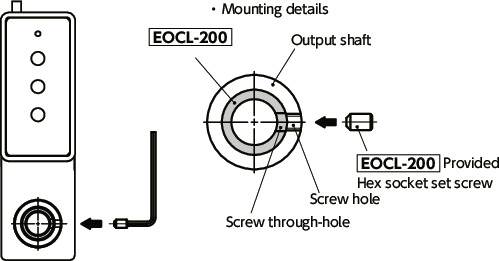

② Align the EPU-210EPU-220 output shaft screw hole with the EOCL-200 screw through-hole, then screw the hex socket set screw supplied with EOCL-200.

EOCL-200Collars

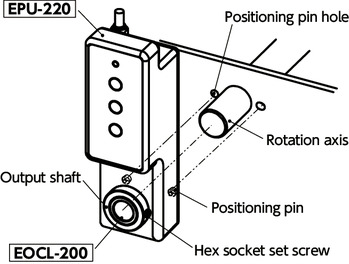

③ With EOCL-200 mounted, pass the rotation axis over the EPU-210EPU-220 output shaft and secure with a hex socket set screw. (Recommended tightening torque: 2.8 N･m)

EOCL-200Collars
