ASC

ASC Angle hole (dimensional allowance H11) + 1 set screw hole

  • Angle hole (H11) and 1 set screw hole will be processed.
  • Angle holes can be selected from standard angle diameters.
  • With / without a set screw hole and/or set screw can be selected.
    ASC-M-P ――― with a set screw hole and set screw
    ASC-M ―――― with a set screw hole
    ASC ――――― without set screw hole
  • ASC Target product
    PH HSN D F ―― Cast iron
    HDA AV AH ―― Aluminum
    PHS HSM ――― Stainless Steel

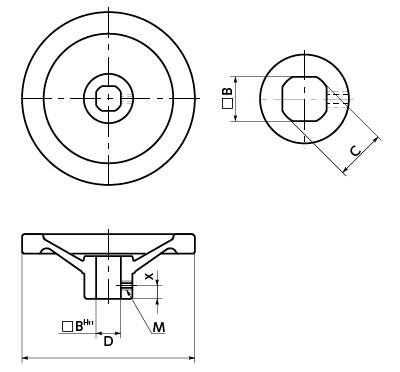

  • Standard angle hole diameter B is set based on nominal handwheel sizes.
  • Corners of an angle hole are arcuately chamfered.
  • Diameter and position of a set screw hole will be determined by standard angle hole diameter.
    • Unit:mm
    Nominal size D Standard angle hole diameter BH11
    80 6・8・10・11・12
    100 6・8・10・11・12
    125 12・13・14
    140 12・13・14
    150 12・13・14
    160 14・15・17
    200 17・19
    250 19・22
    300 19・22
    315 19・22

    Unit:mm
    Standard angle hole diameter BH11 C M X*
    6 8.25 M4 6
    8 11.05 M4 6
    10 13.70 M4 6
    11 15.45 M5 7.5
    12 16.85 M5 7.5
    13 17.90 M5 7.5
    14 19.20 M5 7.5
    15 20.70 M5 7.5
    17 23.10 M6 9
    19 26.10 M6 9
    22 29.60 M6 9

    ＊Dimensions may vary depending on handwheel types.

Price・Delivery

  • Please feel free to contact us.

    • Part number specification

    Please specify handwheel product part number, processing type, angle hole diameter, set screw hole, and with / without a set screw.
