Captive Screws, Full Thread Screws

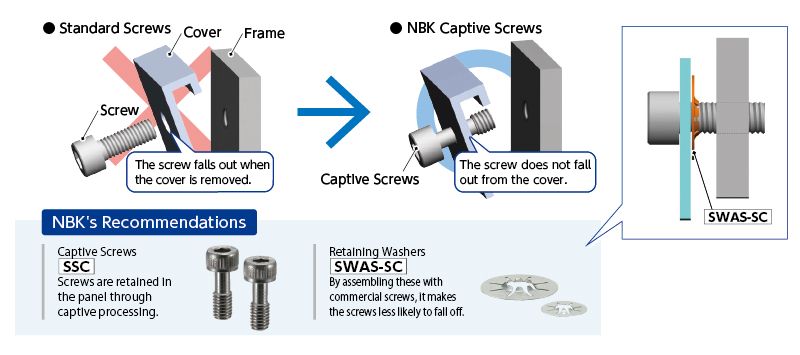

They reduce the risk of parts falling off and getting lost.
Ideal for bolts used to secure inspection covers that require frequent attachment and removal.
| Image |  |
/12941_1.jpg?awscf_publishdate=2025-06-24 18:35) |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|
| Part Name | Socket Head Cap Captive Screws - Low Temperature Black Chrome Treatment | Socket Head Cap Captive Screws (Inch Screws) | Socket Head Cap Captive Screws - SUS316L | Socket Head Cap Captive Screws - High Intensity Stainless Steel | Socket Head Cap Captive Screws with Low Profile - 316L Stainless Steel | Socket Head Cap Captive Screws - Titanium | Socket Head Cap Captive Screws - High Intensity Titanium | Hexagon Head Captive Screws | Hexagon Head Captive Screws - SUS316L |
| Part Number | SSC-RY | SSC(INCH) | SSC-SNSL | SSC-SNSLG | SSC-SLHL | SSC-SNST | SSC-SNSTG | SSC-SNHS | SSC-SNHL |
| Feature | Chemical Resistance Anti-reflection Seizing Prevention Captive/Loss Prevention |
Inch Thread Captive/Loss Prevention |
Non-magnetic Chemical Resistance Heat Resistance Captive/Loss Prevention |
High Strength (Strength Class 10.8 Equivalent) Heat Resistance Corrosion Resistance Non-magnetic Captive/Loss Prevention |
Low Profile Small Space Captive/Loss Prevention |
Lightweight Non-magnetic Chemical Resistance Captive/Loss Prevention |
High Strength Lightweight Non-magnetic Corrosion Resistance Captive/Loss Prevention |
Hex head screws Captive/Loss Prevention |
Hex Head Captive Screws Captive/Loss Prevention |
| Material | SUSXM7 (Equivalent to SUS304) | SUSXM7 (Equivalent to SUS304) | SUS316L | SUS316L | SUS316L | Grade 2 Titanium | Grade 5 Titanium | SUSXM7 (Equivalent to SUS304) | SUS316L |
| Surface Treatment | Low temperature black chrome treatment | - | - | - | - | Special Chemical Polishing | - | - | - |
| Thread Size | M3 ～ M8 | No.4-40UNC ～ 1/4-20UNC | M3 ～ M8 | M3 ～ M6 | M3 ～ M6 | M3 ～ M6 | M3 ～ M8 | M3 ～ M8 | M3 ～ M8 |
| Operating Temperature (℃) | - | - | - | - | - | - | - | - | - |
| CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD |
| Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications |
| List | SSC-M3-RY SSC-M4-RY SSC-M5-RY SSC-M6-RY SSC-M8-RY | SSC-#10-32 SSC-#4-40 SSC-#6-32 SSC-#8-32 SSC-1/4-20 | SSC-SNSL-M3 SSC-SNSL-M4 SSC-SNSL-M5 SSC-SNSL-M6 SSC-SNSL-M8 | SSC-SNSLG-M3 SSC-SNSLG-M4 SSC-SNSLG-M5 SSC-SNSLG-M6 | SSC-SLHL-M3 SSC-SLHL-M4 SSC-SLHL-M5 SSC-SLHL-M6 | SSC-SNST-M3 SSC-SNST-M4 SSC-SNST-M5 SSC-SNST-M6 | SSC-SNSTG-M3 SSC-SNSTG-M4 SSC-SNSTG-M5 SSC-SNSTG-M6 SSC-SNSTG-M8 | SSC-SNHS-M3 SSC-SNHS-M4 SSC-SNHS-M5 SSC-SNHS-M6 SSC-SNHS-M8 | SSC-SNHL-M3 SSC-SNHL-M4 SSC-SNHL-M5 SSC-SNHL-M6 SSC-SNHL-M8 |
| Image |  |
 |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Name | Socket Head Cap Screws with Ultra Low Profile (Full Thread) | Plastic Screw - Socket Head Cap Screws - Full Thread - PEEK | |||||||
| Part Number | SSHS-FT | SPE-FT | |||||||
| Feature | Full Thread Special Low Profile Small Space |
Chemical Resistance Heat Resistance Full Thread |
|||||||
| Material | SUS304 | PEEK | |||||||
| Surface Treatment | - | - | |||||||
| Thread Size | M3 ～ M10 | M3 ～ M6 | |||||||
| Operating Temperature (℃) | - | - | |||||||
| CAD | CAD | CAD | |||||||
| Specifications | Specifications | Specifications | |||||||
| List | SSHS-M10-FT SSHS-M3-FT SSHS-M4-FT SSHS-M5-FT SSHS-M6-FT SSHS-M8-FT | SPE-M3-C-FT SPE-M4-C-FT SPE-M5-C-FT SPE-M6-C-FT |
