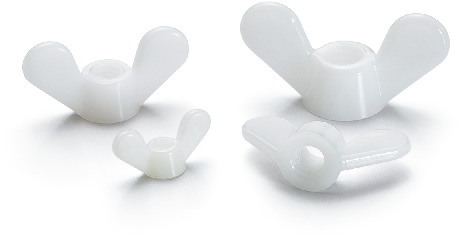

Plastic Screws - Wing Nuts - POM

SPO-YN

Chemical-proof

Dimension Drawing

Specs/CAD

Select

M (Coarse) Nominal of Thread: All; M4; M5; M6; M8

Unit : mm

Part Number	M (Coarse) Nominal of Thread	Pitch	D₁	H	A	Qty per Pack	Mass (g)	CAD Download	RFQ
SPO-M4-YN	M4	0.7	20	10	8	10	0.39	CAD	RFQ
SPO-M5-YN	M5	0.8	25	12	10	10	0.68	CAD	RFQ
SPO-M6-YN	M6	1	32	16	12	10	1.4	CAD	RFQ
SPO-M8-YN	M8	1.25	40	20	16	10	2.9	CAD	RFQ

Part Number	M (Coarse) Nominal of Thread	Pitch	D₁	H	A	Qty per Pack	Mass (g)	CAD Download	RFQ
SPO-M4-YN	M4	0.7	20	10	8	10	0.39	CAD	RFQ
SPO-M5-YN	M5	0.8	25	12	10	10	0.68	CAD	RFQ
SPO-M6-YN	M6	1	32	16	12	10	1.4	CAD	RFQ
SPO-M8-YN	M8	1.25	40	20	16	10	2.9	CAD	RFQ

Part Number	M (Coarse) Nominal of Thread	Pitch	D₁	H	A	Qty per Pack	Mass (g)	CAD Download	RFQ
SPO-M4-YN	M4	0.7	20	10	8	10	0.39	CAD	RFQ
SPO-M5-YN	M5	0.8	25	12	10	10	0.68	CAD	RFQ
SPO-M6-YN	M6	1	32	16	12	10	1.4	CAD	RFQ
SPO-M8-YN	M8	1.25	40	20	16	10	2.9	CAD	RFQ

Part Number	M (Coarse) Nominal of Thread	Pitch	D₁	H	A	Qty per Pack	Mass (g)	CAD Download	RFQ
SPO-M4-YN	M4	0.7	20	10	8	10	0.39	CAD	RFQ
SPO-M5-YN	M5	0.8	25	12	10	10	0.68	CAD	RFQ
SPO-M6-YN	M6	1	32	16	12	10	1.4	CAD	RFQ
SPO-M8-YN	M8	1.25	40	20	16	10	2.9	CAD	RFQ

● When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.

Related Services

Material/Finish

	SPO-YN
Main Body	POM (Polyacetal)
Heat Resistance Temperature＊1	95℃

＊1：　This is the value for the resin material. The operating temperature of the product changes with performance conditions such as tightening torque.

Application

General industrial machines / Food industry machines / Medical equipment / Audio equipment

Characteristics

It has excellent chemical resistance compared to metal screws.
It can be installed/removed without the use of tools.
The properties and precautions of plastic screws⇒Plastic Screws
