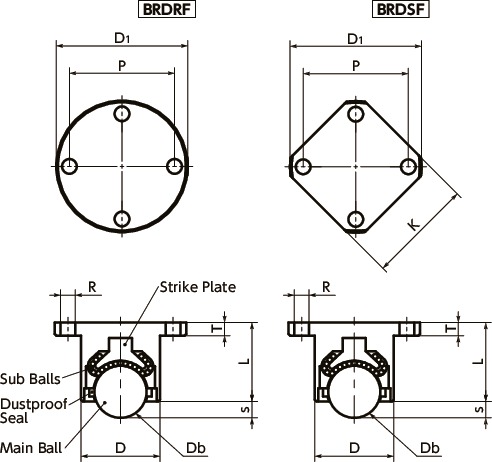

Dimension Drawing
Specs/CAD
Unit : mm
Material/Finish
| BRDSF | |
|---|---|
| Main Body | S45C Electroless Nickel Plating |
| Main Ball | SUJ2 （Hardness 55HRC or Higher） |
| Sub Ball | SUJ2 （Hardness 55HRC or Higher） |
| Strike Plate | SCM415 （Hardness 50 HRC or Higher） |
| Dustproof Seal | Felt |
Application
FPD production equipment, semiconductor devices, food production lines, and packaging linesCharacteristics

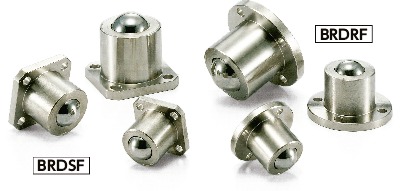

- These ball rollers can be used in downward and sideward applications such as with casters of push carts for transport.
- The dustproof seal prevents the ingress of dirt and dust.
- The body, main ball, and sub-balls are made of steel. These rollers have excellent durability.
