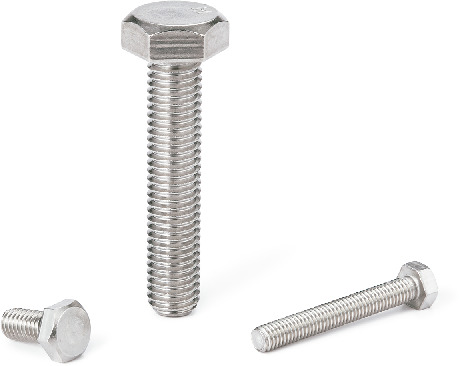

SNHSHexagon Head Screws

Dimension Drawing

SNHSHexagon Head Screws寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M3
M4
M5
M6
M8
M10
L
All
6
8
10
12
16
20
25
30
35
40
45
50

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch L B L1 Qty per Pack Mass
(g)		 CAD
Download		 RFQ
SNHS-M3-6 M3 0.5 6 5.5 2 20 0.65 CAD RFQ
SNHS-M3-8 M3 0.5 8 5.5 2 20 0.73 CAD RFQ
SNHS-M3-10 M3 0.5 10 5.5 2 20 0.81 CAD RFQ
SNHS-M3-12 M3 0.5 12 5.5 2 20 0.89 CAD RFQ
SNHS-M3-16 M3 0.5 16 5.5 2 20 1.1 CAD RFQ
SNHS-M3-20 M3 0.5 20 5.5 2 20 1.3 CAD RFQ
SNHS-M4-6 M4 0.7 6 7 2.8 20 1.3 CAD RFQ
SNHS-M4-8 M4 0.7 8 7 2.8 20 1.5 CAD RFQ
SNHS-M4-10 M4 0.7 10 7 2.8 20 1.7 CAD RFQ
SNHS-M4-12 M4 0.7 12 7 2.8 20 1.8 CAD RFQ
SNHS-M4-16 M4 0.7 16 7 2.8 20 2.1 CAD RFQ
SNHS-M4-20 M4 0.7 20 7 2.8 20 2.4 CAD RFQ
SNHS-M4-25 M4 0.7 25 7 2.8 20 2.7 CAD RFQ
SNHS-M4-30 M4 0.7 30 7 2.8 20 3.2 CAD RFQ
SNHS-M5-8 M5 0.8 8 8 3.5 20 2.5 CAD RFQ
SNHS-M5-10 M5 0.8 10 8 3.5 20 2.7 CAD RFQ
SNHS-M5-12 M5 0.8 12 8 3.5 20 3 CAD RFQ
SNHS-M5-16 M5 0.8 16 8 3.5 20 3.5 CAD RFQ
SNHS-M5-20 M5 0.8 20 8 3.5 20 3.9 CAD RFQ
SNHS-M5-25 M5 0.8 25 8 3.5 20 4.4 CAD RFQ
SNHS-M5-30 M5 0.8 30 8 3.5 20 5.2 CAD RFQ
SNHS-M5-35 M5 0.8 35 8 3.5 20 5.8 CAD RFQ
SNHS-M6-10 M6 1 10 10 4 20 4.4 CAD RFQ
SNHS-M6-12 M6 1 12 10 4 20 4.8 CAD RFQ
SNHS-M6-16 M6 1 16 10 4 20 5.5 CAD RFQ
SNHS-M6-20 M6 1 20 10 4 20 6.2 CAD RFQ
SNHS-M6-25 M6 1 25 10 4 20 6.9 CAD RFQ
SNHS-M6-30 M6 1 30 10 4 20 7.9 CAD RFQ
SNHS-M6-35 M6 1 35 10 4 20 8.8 CAD RFQ
SNHS-M6-40 M6 1 40 10 4 20 9.6 CAD RFQ
SNHS-M8-12 M8 1.25 12 13 5.5 10 10 CAD RFQ
SNHS-M8-16 M8 1.25 16 13 5.5 10 11 CAD RFQ
SNHS-M8-20 M8 1.25 20 13 5.5 10 13 CAD RFQ
SNHS-M8-25 M8 1.25 25 13 5.5 10 14 CAD RFQ
SNHS-M8-30 M8 1.25 30 13 5.5 10 16 CAD RFQ
SNHS-M8-35 M8 1.25 35 13 5.5 10 17 CAD RFQ
SNHS-M8-40 M8 1.25 40 13 5.5 10 19 CAD RFQ
SNHS-M8-45 M8 1.25 45 13 5.5 10 20 CAD RFQ
SNHS-M8-50 M8 1.25 50 13 5.5 10 22 CAD RFQ
SNHS-M10-16 M10 1.5 16 17 7 10 22 CAD RFQ
SNHS-M10-20 M10 1.5 20 17 7 10 24 CAD RFQ
SNHS-M10-25 M10 1.5 25 17 7 10 26 CAD RFQ
SNHS-M10-30 M10 1.5 30 17 7 10 29 CAD RFQ
SNHS-M10-35 M10 1.5 35 17 7 10 31 CAD RFQ
SNHS-M10-40 M10 1.5 40 17 7 10 34 CAD RFQ
SNHS-M10-45 M10 1.5 45 17 7 10 36 CAD RFQ
SNHS-M10-50 M10 1.5 50 17 7 10 38 CAD RFQ

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

● When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.


Related Services

Material/Finish

SNHS
Main Body SUSXM7 (Equivalent to SUS304)
Strength Class Equivalent to A2-50

Characteristics

  • Stainless steel hexagon head screws compliant with JIS B 1180.

Product List

Click here to see Hex Head Screws
