SNCXHexalobular Socket Head Cap Screws

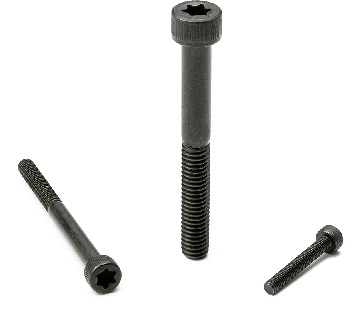

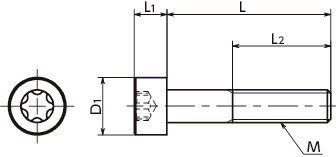

Dimension Drawing

SNCXHexalobular Socket Head Cap Screws寸法図

Specs/CAD

Select

M (Coarse)
Nominal of Thread
All
M3
M4
M5
M6
M8
M10
M12
L
All
5
6
8
10
12
15
16
20
25
30
35
40
45
50

Unit : mm

Part Number M (Coarse)
Nominal of Thread		 Pitch L D1 L1 L2 Hexalobular
Socket
No.		 Qty per Pack Mass
(g)		 RFQ
SNCX-M3-5 M3 0.5 5 5.5 3 Full Thread 10 50 0.67 RFQ
SNCX-M3-6 M3 0.5 6 5.5 3 Full Thread 10 50 0.71 RFQ
SNCX-M3-8 M3 0.5 8 5.5 3 Full Thread 10 50 0.8 RFQ
SNCX-M3-10 M3 0.5 10 5.5 3 Full Thread 10 50 0.88 RFQ
SNCX-M3-12 M3 0.5 12 5.5 3 Full Thread 10 50 0.96 RFQ
SNCX-M3-15 M3 0.5 15 5.5 3 Full Thread 10 50 1.101 RFQ
SNCX-M3-16 M3 0.5 16 5.5 3 Full Thread 10 50 1.16 RFQ
SNCX-M3-20 M3 0.5 20 5.5 3 Full Thread 10 50 1.36 RFQ
SNCX-M4-6 M4 0.7 6 7 4 Full Thread 25 50 1.5 RFQ
SNCX-M4-8 M4 0.7 8 7 4 Full Thread 25 50 1.65 RFQ
SNCX-M4-10 M4 0.7 10 7 4 Full Thread 25 50 1.8 RFQ
SNCX-M4-12 M4 0.7 12 7 4 Full Thread 25 50 1.95 RFQ
SNCX-M4-15 M4 0.7 15 7 4 Full Thread 25 50 2.007 RFQ
SNCX-M4-16 M4 0.7 16 7 4 Full Thread 25 50 2.25 RFQ
SNCX-M4-20 M4 0.7 20 7 4 Full Thread 25 50 2.65 RFQ
SNCX-M4-25 M4 0.7 25 7 4 Full Thread 25 50 3.15 RFQ
SNCX-M4-30 M4 0.7 30 7 4 20 25 50 3.333 RFQ
SNCX-M4-35 M4 0.7 35 7 4 20 25 50 3.814 RFQ
SNCX-M4-40 M4 0.7 40 7 4 20 25 50 4.293 RFQ
SNCX-M4-45 M4 0.7 45 7 4 20 25 50 4.756 RFQ
SNCX-M4-50 M4 0.7 50 7 4 20 25 50 5.244 RFQ
SNCX-M5-8 M5 0.8 8 8.5 5 Full Thread 27 50 2.45 RFQ
SNCX-M5-10 M5 0.8 10 8.5 5 Full Thread 27 50 2.7 RFQ
SNCX-M5-12 M5 0.8 12 8.5 5 Full Thread 27 50 2.95 RFQ
SNCX-M5-15 M5 0.8 15 8.5 5 Full Thread 27 50 3.55 RFQ
SNCX-M5-16 M5 0.8 16 8.5 5 Full Thread 27 50 3.45 RFQ
SNCX-M5-20 M5 0.8 20 8.5 5 Full Thread 27 50 4.01 RFQ
SNCX-M5-25 M5 0.8 25 8.5 5 Full Thread 27 50 4.78 RFQ
SNCX-M5-30 M5 0.8 30 8.5 5 22 27 50 5.55 RFQ
SNCX-M5-35 M5 0.8 35 8.5 5 22 27 50 6.32 RFQ
SNCX-M5-40 M5 0.8 40 8.5 5 22 27 50 7.08 RFQ
SNCX-M5-45 M5 0.8 45 8.5 5 22 27 50 7.8 RFQ
SNCX-M5-50 M5 0.8 50 8.5 5 22 27 50 8.6 RFQ
SNCX-M6-10 M6 1 10 10 6 Full Thread 30 50 4.7 RFQ
SNCX-M6-12 M6 1 12 10 6 Full Thread 30 50 5.07 RFQ
SNCX-M6-15 M6 1 15 10 6 Full Thread 30 50 5.5 RFQ
SNCX-M6-16 M6 1 16 10 6 Full Thread 30 50 5.75 RFQ
SNCX-M6-20 M6 1 20 10 6 Full Thread 30 50 6.53 RFQ
SNCX-M6-25 M6 1 25 10 6 Full Thread 30 50 7.59 RFQ
SNCX-M6-30 M6 1 30 10 6 Full Thread 30 50 8.3 RFQ
SNCX-M6-35 M6 1 35 10 6 24 30 50 9.1 RFQ
SNCX-M6-40 M6 1 40 10 6 24 30 50 10.2 RFQ
SNCX-M6-45 M6 1 45 10 6 24 30 50 11.25 RFQ
SNCX-M6-50 M6 1 50 10 6 24 30 50 12.51 RFQ
SNCX-M8-12 M8 1.25 12 13 8 Full Thread 45 20 10.519 RFQ
SNCX-M8-15 M8 1.25 15 13 8 Full Thread 45 20 11.222 RFQ
SNCX-M8-16 M8 1.25 16 13 8 Full Thread 45 20 11.524 RFQ
SNCX-M8-20 M8 1.25 20 13 8 Full Thread 45 20 12.868 RFQ
SNCX-M8-25 M8 1.25 25 13 8 Full Thread 45 20 14.295 RFQ
SNCX-M8-30 M8 1.25 30 13 8 Full Thread 45 20 15.99 RFQ
SNCX-M8-35 M8 1.25 35 13 8 Full Thread 45 20 18.08 RFQ
SNCX-M10-15 M10 1.5 15 16 10 Full Thread 50 10 19.208 RFQ
SNCX-M10-16 M10 1.5 16 16 10 Full Thread 50 10 19.92 RFQ
SNCX-M10-20 M10 1.5 20 16 10 Full Thread 50 10 22.992 RFQ
SNCX-M10-25 M10 1.5 25 16 10 Full Thread 50 10 24.51 RFQ
SNCX-M10-30 M10 1.5 30 16 10 Full Thread 50 10 27.046 RFQ
SNCX-M10-35 M10 1.5 35 16 10 Full Thread 50 10 29.56 RFQ
SNCX-M10-40 M10 1.5 40 16 10 Full Thread 50 10 32.604 RFQ
SNCX-M12-20 M12 1.75 20 18 12 Full Thread 55 5 32 RFQ
SNCX-M12-25 M12 1.75 25 18 12 Full Thread 55 5 35.5 RFQ
SNCX-M12-30 M12 1.75 30 18 12 Full Thread 55 5 39 RFQ
SNCX-M12-35 M12 1.75 35 18 12 Full Thread 55 5 44.493 RFQ
SNCX-M12-40 M12 1.75 40 18 12 Full Thread 55 5 47 RFQ
SNCX-M12-45 M12 1.75 45 18 12 Full Thread 55 5 49.5 RFQ
SNCX-M12-50 M12 1.75 50 18 12 Full Thread 55 5 55.15 RFQ

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

● When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.


Related Services

Material/Finish

SNCX
Main Body SCM435
Ferrosoferric Oxide Film (Black)
Strength Class 12.9

Application

Prevention of damage to screw heads
Reliable tightening

Characteristics

  • Hexalobular socket shapes＊1 are designed to withstand high tightening torque compared to cross-recesses. ⇒Features of the Hexalobular Socket
  • Recesses are unlikely to be damaged due to tightening, allowing safe and secure tightening to be performed.
  • Strength class is 12.9. High strength.
  • M3 - M12. Selection from abundant size variations is available to suit the device or equipment.

＊1：　The hexalobular shape is prescribed by JIS B 1015: 2008(ISO 10664: 2005)"Hexalobular internal driving feature for bolts and screws".
