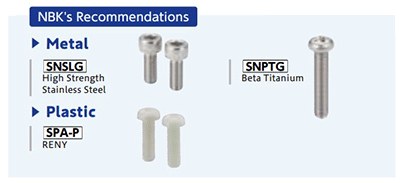

High Strength
These screws have high strength. They include screws made of particularly strong titanium, stainless steel, and plastic.
Using high-strength screws allows for smaller screw sizes while maintaining fastening force, contributing to more compact and lightweight equipment.
| Image |  |
 |
 |
 |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|---|---|---|
| Part Name | Socket Head Cap Captive Screws - High Intensity Stainless Steel | Socket Head Cap Screws - SUH660 | Hex Socket Head Cap Screws - High Intensity Titanium Alloy | Socket Head Cap Captive Screws - High Intensity Titanium | Cross Recessed Pan Head Machine Screws - High Intensity Titanium Alloy | Cross Recessed Flat Head Machine Screws - High Intensity Titanium Alloy | Hex Socket Head Cap Screws - Electroless Nickel Plating | Socket Head Cap Screws | Socket Head Cap Screws / Fine Thread |
| Part Number | SSC-SNSLG | SNSU-AT | SNSTG | SSC-SNSTG | SNPTG | SNFTG | SNS-EL | SNS-J | SNS-M-P |
| Feature | High Strength (Strength Class 10.8 Equivalent) Heat Resistance Corrosion Resistance Non-magnetic Captive/Loss Prevention |
Heat Resistance High Strength High Specific Strength |
High Strength Lightweight Nonmagnetic Corrosion Resistance |
High Strength Lightweight Non-magnetic Corrosion Resistance Captive/Loss Prevention |
High Strength Lightweight Nonmagnetic Corrosion Resistance |
High Strength Lightweight Nonmagnetic Corrosion Resistance |
High Strength | Hex Socket Head Cap Screws Conforming to JIS B 1176 |
Positioning Loosening Countermeasures Conforming to JIS B 1176 |
| Material | SUS316L | SUH660 | Grade 5 Titanium | Grade 5 Titanium | β Titanium | β Titanium | Steel | Steel | Steel |
| Surface Treatment | - | - | Special Chemical Polishing | - | Special Chemical Polishing | Special Chemical Polishing | Electroless nickel plating | Ferrosoferric Oxide Film (Black) | Ferrosoferric Oxide Film (Black) |
| Thread Size | M3 ～ M6 | M3 ～ M6 | M2 ～ M10 | M3 ～ M8 | M3 ～ M5 | M3 ～ M5 | M3 ～ M10 | M3 ～ M16 | M6 ～ M16 |
| Operating Temperature (℃) | - | - | - | - | - | - | - | - | - |
| CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD | CAD |
| Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications | Specifications |
| List | SSC-SNSLG-M3 SSC-SNSLG-M4 SSC-SNSLG-M5 SSC-SNSLG-M6 | SNSU-M3-AT SNSU-M4-AT SNSU-M5-AT SNSU-M6-AT | SNSTG-M10 SNSTG-M2 SNSTG-M2.5 SNSTG-M3 SNSTG-M4 SNSTG-M5 SNSTG-M6 SNSTG-M8 | SSC-SNSTG-M3 SSC-SNSTG-M4 SSC-SNSTG-M5 SSC-SNSTG-M6 SSC-SNSTG-M8 | SNPTG-M3 SNPTG-M4 SNPTG-M5 | SNFTG-M3 SNFTG-M4 SNFTG-M5 | SNS-M10-EL SNS-M3-EL SNS-M4-EL SNS-M5-EL SNS-M6-EL SNS-M8-EL | SNS-M10 SNS-M12 SNS-M16 SNS-M3 SNS-M4 SNS-M5 SNS-M6 SNS-M8 | SNS-M10-P1.25 SNS-M12-P1.25 SNS-M16-P1.5 SNS-M6-P0.75 SNS-M8-P1 |
