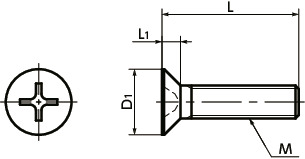

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | D1 | L1 | Cross-recessed Socket Number |
Tension Rupture Load (N)＊1 |
Torsional Torque (N・m)＊1 |
Qty per Pack | Mass (g) |
CAD Download |
RFQ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPC-M3-4-F | M3 | 0.5 | 4 | 6 | 1.75 | 2 | 266 | 0.18 | 50 | 0.048 | CAD | RFQ |
| SPC-M3-5-F | M3 | 0.5 | 5 | 6 | 1.75 | 2 | 266 | 0.18 | 50 | 0.052 | CAD | RFQ |
| SPC-M3-6-F | M3 | 0.5 | 6 | 6 | 1.75 | 2 | 266 | 0.18 | 50 | 0.058 | CAD | RFQ |
| SPC-M3-8-F | M3 | 0.5 | 8 | 6 | 1.75 | 2 | 266 | 0.18 | 50 | 0.072 | CAD | RFQ |
| SPC-M3-10-F | M3 | 0.5 | 10 | 6 | 1.75 | 2 | 266 | 0.18 | 50 | 0.085 | CAD | RFQ |
| SPC-M3-12-F | M3 | 0.5 | 12 | 6 | 1.75 | 2 | 266 | 0.18 | 50 | 0.1 | CAD | RFQ |
| SPC-M3-15-F | M3 | 0.5 | 15 | 6 | 1.75 | 2 | 266 | 0.18 | 50 | 0.12 | CAD | RFQ |
| SPC-M3-20-F | M3 | 0.5 | 20 | 6 | 1.75 | 2 | 266 | 0.18 | 50 | 0.15 | CAD | RFQ |
| SPC-M3-25-F | M3 | 0.5 | 25 | 6 | 1.75 | 2 | 266 | 0.18 | 50 | 0.19 | CAD | RFQ |
＊1： Values in chart are for reference only. They are not guaranteed values. The recommended tightening torque is 50% of the torsional torque.
Related Services
Material/Finish
| SPC-F | |
|---|---|

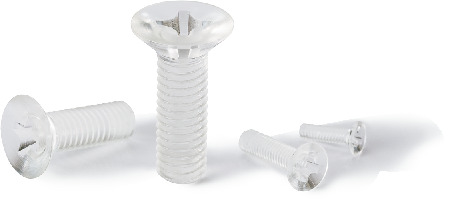

| Main Body | PC (Polycarbonate) (Transparent) |
| Heat Resistance Temperature＊1 | 115℃ |
＊1： This is the value for the resin material. The operating temperature of the product changes with performance conditions such as tightening torque.
Application
Electrical and electronic equipment and automobilesCharacteristics
- PC (polycarbonate) has the highest shock resistance of engineering plastics.
- Max. Operating Temperature＊1(min./max.): -40/115°C
- PC has low water absorbency and excellent weather resistance.
- The properties and precautions of plastic screws⇒Plastic Screws
