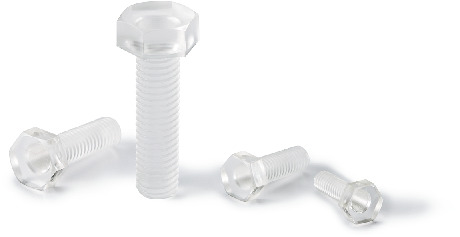

Dimension Drawing
Specs/CAD
Unit : mm
| Part Number | M (Coarse) Nominal of Thread |
Pitch | L | L1 | Tension Rupture Load (N)＊1 |
Torsional Torque (N・m)＊1 |
Qty per Pack | Mass (g) |
CAD Download |
RFQ |
|---|---|---|---|---|---|---|---|---|---|---|
| SPC-M6-10-H | M6 | 1 | 10 | 4 | 1136 | 1.2 | 20 | 0.69 | CAD | RFQ |
| SPC-M6-12-H | M6 | 1 | 12 | 4 | 1136 | 1.2 | 20 | 0.75 | CAD | RFQ |
| SPC-M6-15-H | M6 | 1 | 15 | 4 | 1136 | 1.2 | 20 | 0.72 | CAD | RFQ |
| SPC-M6-20-H | M6 | 1 | 20 | 4 | 1136 | 1.2 | 20 | 0.98 | CAD | RFQ |
| SPC-M6-25-H | M6 | 1 | 25 | 4 | 1136 | 1.2 | 20 | 1.2 | CAD | RFQ |
| SPC-M6-30-H | M6 | 1 | 30 | 4 | 1136 | 1.2 | 20 | 1.4 | CAD | RFQ |
| SPC-M6-35-H | M6 | 1 | 35 | 4 | 1136 | 1.2 | 20 | 1.5 | CAD | RFQ |
| SPC-M6-40-H | M6 | 1 | 40 | 4 | 1136 | 1.2 | 20 | 1.7 | CAD | RFQ |
＊1： Values in chart are for reference only. They are not guaranteed values. The recommended tightening torque is 50% of the torsional torque.
● When purchasing less volume than one full bag, a separate handling fee is charged. For details, see the Sold Separately Service.
Related Services
Material/Finish
| SPC-H | |
|---|---|
| Main Body | PC (Polycarbonate) (Transparent) |
| Heat Resistance Temperature＊1 | 115℃ |
＊1： This is the value for the resin material. The operating temperature of the product changes with performance conditions such as tightening torque.
Application
Electrical and electronic equipment and automobilesCharacteristics
- PC (polycarbonate) has the highest shock resistance of engineering plastics.
- Max. Operating Temperature＊1(min./max.): -40/115°C
- PC has low water absorbency and excellent weather resistance.
- The properties and precautions of plastic screws⇒Plastic Screws
