Low Profile Screws / Small Head Screws

These screws have a low head height or small head diameter, making them compact.

They are ideal for space-saving in equipment and devices, or when space for installing bolts is limited.
Click for the comparison table of screw head dimensions here ▶

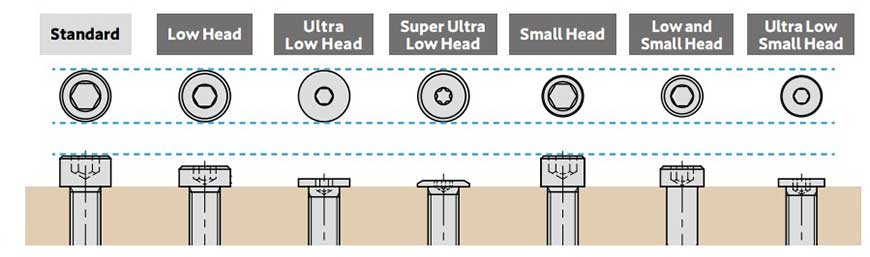

Campact-and-Space-Saving_1en

Part Name	Socket Head Cap Screws with Low Profile	Low Profile Socket Head Cap Screws with Nylon Patch	Socket Head Cap Screws with Low Profile	Low Profile Socket Head Cap Screws with Nylon Patch	Socket Head Cap Screws with Low Profile - SUSXM7	Socket Head Cap Screws with Low Profile - SUSXM7 - Cleanroom Washed & Packaged	Low Profile Socket Head Cap Screws with Nylon Patch – Stainless Steel	Socket Head Cap Screws with Low Profile - 316L Stainless Steel	Low Profile Socket Head Cap Screws with Nylon Patch – 316L Stainless Steel
Part Number	SLH	SLH-ALK	SLH-TZB	SLH-TZB-ALK	SLHS	SLHS-UCL	SLHS-ALK	SLHL	SLHL-ALK
Feature	Space-Saving Low Profile Conforms to DIN 7984.	Low Profile Space-Saving Nylon Patch	Space-Saving Low Profile Conforms to DIN 7984.	Low Profile Space-Saving Nylon Patch	Space-Saving Low Profile	Space-Saving Low Profile Cleanroom Washed & Packaged	Low Profile Space-Saving Nylon Patch	Space-Saving Low Profile	Low Profile Space-Saving Nylon Patch
Material	Steel	Steel	Steel	Steel	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUS316L	SUS316L
Surface Treatment	Ferrosoferric Oxide Film (Black)	Ferrosoferric Oxide Film (Black)	Trivalent chromate treatment	Trivalent chromate treatment	-	-	-	-	-
Thread Size	M2 ～ M10	M2 ～ M10	M2 ～ M10	M2 ～ M10	M2 ～ M10	M2 ～ M6	M2 ～ M10	M3 ～ M6	M3 ～ M6
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SLH-M10 SLH-M2 SLH-M2.5 SLH-M3 SLH-M4 SLH-M5 SLH-M6 SLH-M8	SLH-M10-ALK SLH-M2.5-ALK SLH-M2-ALK SLH-M3-ALK SLH-M4-ALK SLH-M5-ALK SLH-M6-ALK SLH-M8-ALK	SLH-M10-TZB SLH-M2.5-TZB SLH-M2-TZB SLH-M3-TZB SLH-M4-TZB SLH-M5-TZB SLH-M6-TZB SLH-M8-TZB	SLH-M10-TZB-ALK SLH-M2.5-TZB-ALK SLH-M2-TZB-ALK SLH-M3-TZB-ALK SLH-M4-TZB-ALK SLH-M5-TZB-ALK SLH-M6-TZB-ALK SLH-M8-TZB-ALK	SLHS-M10 SLHS-M2 SLHS-M2.5 SLHS-M3 SLHS-M4 SLHS-M5 SLHS-M6 SLHS-M8	SLHS-M2.5-UCL SLHS-M2-UCL SLHS-M3-UCL SLHS-M4-UCL SLHS-M5-UCL SLHS-M6-UCL	SLHS-M10-ALK SLHS-M2.5-ALK SLHS-M2-ALK SLHS-M3-ALK SLHS-M4-ALK SLHS-M5-ALK SLHS-M6-ALK SLHS-M8-ALK	SLHL-M3 SLHL-M4 SLHL-M5 SLHL-M6	SLHL-M3-ALK SLHL-M4-ALK SLHL-M5-ALK SLHL-M6-ALK

Part Name	Socket Head Cap Screws with Ultra Low Profile	Ultra Low Profile Socket Head Cap Screws with Nylon Patch	Socket Head Cap Screws with Ultra Low Profile	Socket Head Cap Screws with Ultra Low Profile and Nylon Patch	Socket Head Cap Screws with Ultra Low Profile - SUSXM7	Socket Head Cap Screws with Ultra Low Profile - SUSXM7 - Cleanroom Washed & Packaged	Socket Head Cap Screws with Ultra Low Profile - SUSXM7 - with Nylon Patch	Socket Head Cap Screws with Ultra Low Profile for Sheet Metal	Ultra Low Profile Socket Head Cap Screws with Nylon Patch – for Sheet Metal
Part Number	SSH	SSH-ALK	SSH-EL	SSH-EL-ALK	SSHS	SSHS-UCL	SSHS-ALK	SSHS-UC	SSHS-UC-ALK
Feature	Space-Saving Ultra Low Profile	Special Low Profile Space-Saving Nylon Patch	Space-Saving Ultra Low Profile	Space-Saving Ultra Low Profile Nylon Patch	Space-Saving Ultra Low Profile	Space-Saving Ultra Low Profile Cleanroom Washed & Packaged	Space-Saving Ultra Low Profile Nylon Patch	For Sheet Metal (Plate Thickness 0.1mm or More) Space-Saving Ultra Low Profile	Special Low Profile Space-Saving For Sheet Metal (Plate Thickness 0.1mm or More) Nylon Patch
Material	Steel	Steel	Steel	Steel	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)
Surface Treatment	Ferrosoferric Oxide Film (Black)	Ferrosoferric Oxide Film (Black)	Electroless nickel plating	Electroless nickel plating	-	-	-	-	-
Thread Size	M2 ～ M10	M2 ～ M10	M2 ～ M10	M2 ～ M8	M2 ～ M10	M2 ～ M6	M2 ～ M8	M3 ～ M6	M3 ～ M6
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SSH-M10 SSH-M2 SSH-M2.5 SSH-M3 SSH-M4 SSH-M5 SSH-M6 SSH-M8	SSH-M10-ALK SSH-M2.5-ALK SSH-M2-ALK SSH-M3-ALK SSH-M4-ALK SSH-M5-ALK SSH-M6-ALK SSH-M8-ALK	SSH-M10-EL SSH-M2.5-EL SSH-M2-EL SSH-M3-EL SSH-M4-EL SSH-M5-EL SSH-M6-EL SSH-M8-EL	SSH-M2.5-EL-ALK SSH-M2-EL-ALK SSH-M3-EL-ALK SSH-M4-EL-ALK SSH-M5-EL-ALK SSH-M6-EL-ALK SSH-M8-EL-ALK	SSHS-M10 SSHS-M2 SSHS-M2.5 SSHS-M3 SSHS-M4 SSHS-M5 SSHS-M6 SSHS-M8	SSHS-M2.5-UCL SSHS-M2-UCL SSHS-M3-UCL SSHS-M4-UCL SSHS-M5-UCL SSHS-M6-UCL	SSHS-M2.5-ALK SSHS-M2-ALK SSHS-M3-ALK SSHS-M4-ALK SSHS-M5-ALK SSHS-M6-ALK SSHS-M8-ALK	SSHS-M3-UC SSHS-M4-UC SSHS-M5-UC SSHS-M6-UC	SSHS-M3-UC-ALK SSHS-M4-UC-ALK SSHS-M5-UC-ALK SSHS-M6-UC-ALK

Part Name	Socket Head Cap Screws with Ultra Low Profile (Full Thread)	Socket Head Cap Screws with Ultra Low Profile - 316L Stainless Steel	Socket Head Cap Screws with Ultra Low Profile - 316L Stainless Steel - Cleanroom Washed & Packaged	Vented Socket Head Cap Screws with Ultra Low Profile - 316L Stainless Steel	Socket Head Cap Screws with Ultra Low Profile - Titanium	Vented Socket Head Cap Screws with Ultra Low Profile - Titanium	Socket Head Cap Screws with Ultra Low Profile - Hastelloy C-22 equiv.	Hex Head Cap Screws with Ultra Low Profile	Socket Head Cap Captive Screws with Low Profile - 316L Stainless Steel
Part Number	SSHS-FT	SSHL	SSHL-UCL	SVSHL	SSHT	SVSHT	SSHH-C22	SNHS-LH	SSC-SLHL
Feature	Full Thread Space-Saving Ultra Low Profile	Space-Saving Ultra Low Profile	Space-Saving Ultra Low Profile Cleanroom Washed & Packaged	Space-Saving Ultra Low Profile	Space-Saving Ultra Low Profile Lightweight NonMagnetic Chemical Resistance	Lightweight Sapce-Saving Ultra Low Profile Nonmagnetic Chemical Resistance	Chemical Resistance Special Low Profile Space-saving	Low Profile space-saving	Captive / Loss Prevention Space-Saving Low Profile
Material	SUS304	SUS316L	SUS316L	SUS316L	Grade 2 Titanium	Grade 2 Titanium	Hastelloy equiv.	SUSXM7 (Equivalent to SUS304)	SUS316L
Surface Treatment	-	-	-	-	Special Chemical Polishing	Special Chemical Polishing	-	-	-
Thread Size	M3 ～ M10	M3 ～ M5	M3 ～ M5	M3 ～ M5	M3 ～ M6	M3 ～ M6	M2 ～ M5	M4 ～ M8	M3 ～ M6
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SSHS-M10-FT SSHS-M3-FT SSHS-M4-FT SSHS-M5-FT SSHS-M6-FT SSHS-M8-FT	SSHL-M3 SSHL-M4 SSHL-M5	SSHL-M3-UCL SSHL-M4-UCL SSHL-M5-UCL	SVSHL-M3 SVSHL-M4 SVSHL-M5	SSHT-M3 SSHT-M4 SSHT-M5 SSHT-M6	SVSHT-M3 SVSHT-M4 SVSHT-M5 SVSHT-M6	SSHH-M2.5-C22 SSHH-M2-C22 SSHH-M3-C22 SSHH-M4-C22 SSHH-M5-C22	SNHS-M4-LH SNHS-M5-LH SNHS-M6-LH SNHS-M8-LH	SSC-SLHL-M3 SSC-SLHL-M4 SSC-SLHL-M5 SSC-SLHL-M6

Part Name	Hexalobular Socket Head Cap Screws with Low Profile	Hexalobular Socket Head Cap Screws with Low Profile	Hexalobular Socket Head Cap Screws with Ultra Low Profile	Hexalobular Socket Head Cap Screws with Super Ultra Low Profile	Hexalobular Socket Head Cap Screws with Super Ultra Low Profile and Nylon Patch	Hexalobular Socket Head Cap Screws with Super Ultra Low Profile	Hexalobular Socket Head Cap Screws with Super Ultra Low Profile (Inch Thread)	Hexalobular Socket Head Cap Screws with Super Ultra Low Profile	Hexalobular Socket Head Cap Screws with Super Ultra Low Profile and Nylon Patch
Part Number	SLT-TZB	SLTS	SSTS	SET-NI	SET-NI-ALK	SET-BNI	SET-TZB(INCH)	SETS	SETS-ALK
Feature	Hexalobular Socket Low Profile Small Space	Hexalobular Socket Low Profile Small Space	Hexalobular Socket Special Low Profile Small Space	Hexalobular Socket Extra Low Profile Small Space	Hexalobular Socket Extra Low Profile Space-Saving Nylon Patch	Hexalobular Socket Extra Low Profile Small Space	Hexalobular Socket Extra Low Profile Small Space Inch Screws	Hexalobular Socket Extra Low Profile Small Space	Hexalobular Socket Extra Low Profile Space-Saving Nylon Patch
Material	Steel	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	Steel	Steel	Steel	Steel	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)
Surface Treatment	Trivalent chromate treatment	-	-	Nickel plating	Nickel plating	Black Nickel Plating	Trivalent chromate treatment	-	-
Thread Size	M3 ～ M6	M2 ～ M6	M2 ～ M8	M3 ～ M5	M3 ～ M5	M3 ～ M5	No.6-32UNC ～ No.10-32UNF	M2 ～ M6	M2 ～ M6
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SLT-M3-TZB SLT-M4-TZB SLT-M5-TZB SLT-M6-TZB	SLTS-M2 SLTS-M2.5 SLTS-M3 SLTS-M4 SLTS-M5 SLTS-M6	SSTS-M2 SSTS-M2.5 SSTS-M3 SSTS-M4 SSTS-M5 SSTS-M6 SSTS-M8	SET-M3-NI SET-M4-NI SET-M5-NI	SET-M3-NI-ALK SET-M4-NI-ALK SET-M5-NI-ALK	SET-M3-BNI SET-M4-BNI SET-M5-BNI	SET-#10-24-TZB SET-#10-32-TZB SET-#6-32-TZB SET-#8-32-TZB	SETS-M2 SETS-M2.6 SETS-M3 SETS-M4 SETS-M5 SETS-M6	SETS-M2.6-ALK SETS-M2-ALK SETS-M3-ALK SETS-M4-ALK SETS-M5-ALK SETS-M6-ALK

Part Name	Hexalobular Socket Head Cap Screws with Super Ultra Low Profile - Stainless Steel (Inch Thread)	Hexalobular Socket Head Cap Screws with Super Ultra Low Profile - Aluminum	Hexalobular Keys	Socket Head Cap Screws with Small Head	Socket Head Cap Screws with Small Head	Socket Head Cap Screws with Small Head and Nylon Patch	Socket Head Cap Screws with Small Head	Socket Head Cap Screws with Small Head - Fluorine Coating	Socket Head Cap Screws with Small Head - MoS₂ Coating
Part Number	SETS(INCH)	SETA	SKX	SNS-SD	SNS-SD-EL	SNS-SD-EL-ALK	SNSS-SD	SNSS-SD-FC	SNSS-SD-MO
Feature	Hexalobular Socket Extra Low Profile Small Space Inch Screws	Super Special Low Profile With Hexalobular Socket Space-saving	For HexalobularSocket Head Screws	Small Head Small Space	Small Head Small Space	Small Head Space-Saving Nylon Patch	Small Head Small Space	Small Head Space-saving Seizing Prevention	Small Head Space-saving Seizing Prevention
Material	SUSXM7 (Equivalent to SUS304)	A5056	Steel	Steel	Steel	Steel	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)
Surface Treatment	-	-	Ferrosoferric Oxide Film (Black)	Ferrosoferric Oxide Film (Black)	Electroless nickel plating	Electroless nickel plating	-	Fluorine coating	Molybdenum disulfide coating
Thread Size	No.4-40UNC ～ No.10-32UNF	M3 ～ M6	-	M3 ～ M10	M3 ～ M10	M3 ～ M8	M2 ～ M10	M3 ～ M10	M3 ～ M10
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SETS-#10-24 SETS-#10-32 SETS-#4-40 SETS-#6-32 SETS-#8-32	SETA-M3 SETA-M4 SETA-M5 SETA-M6	SKX-10 SKX-15 SKX-20 SKX-25 SKX-30 SKX-4 SKX-40 SKX-45 SKX-5 SKX-6 SKX-8	SNS-M10-SD SNS-M3-SD SNS-M4-SD SNS-M5-SD SNS-M6-SD SNS-M8-SD	SNS-M10-SD-EL SNS-M3-SD-EL SNS-M4-SD-EL SNS-M5-SD-EL SNS-M6-SD-EL SNS-M8-SD-EL	SNS-M3-SD-EL-ALK SNS-M4-SD-EL-ALK SNS-M5-SD-EL-ALK SNS-M6-SD-EL-ALK SNS-M8-SD-EL-ALK	SNSS-M10-SD SNSS-M2.5-SD SNSS-M2-SD SNSS-M3-SD SNSS-M4-SD SNSS-M5-SD SNSS-M6-SD SNSS-M8-SD	SNSS-M10-SD-FC SNSS-M3-SD-FC SNSS-M4-SD-FC SNSS-M5-SD-FC SNSS-M6-SD-FC SNSS-M8-SD-FC	SNSS-M10-SD-MO SNSS-M3-SD-MO SNSS-M4-SD-MO SNSS-M5-SD-MO SNSS-M6-SD-MO SNSS-M8-SD-MO

Part Name	Vented Socket Head Cap Screws with Small Head	Socket Head Cap Screws with Small Head and Nylon Patch	Socket Head Cap Screws with Small Head (Inch Thread)	Socket Head Cap Screws with Small Head - 316L Stainless Steel	Vented Socket Head Cap Screws with Small Head - 316L Stainless Steel	Socket Head Cap Screws with Small Head - Titanium	Socket Head Cap Screws with Small Head - Titanium	Vented Socket Head Cap Screws with Small Head - Titanium	Socket Head Cap Captive Screws with Small Head
Part Number	SVSS-SD	SNSS-SD-ALK	SNSS-SD(INCH)	SNSL-SD	SVSL-SD	SNST-SD	SNST-SD-UT	SVST-SD	SSC-SD
Feature	Standard Small Head	Small Head Space-Saving Nylon Patch	Small Head Small Space	Small Head Heat Resistance Corrosion Resistance Non-magnetic	Small Head Corrosion Resistance Non-magnetic	Small Head Lightweight Non-magnetic Chemical Resistance	Small Head Lightweight Non-magnetic Chemical Resistance	Small Head Lightweight Non-magnetic Chemical Resistance Lightweight	Small Head Space-saving Captive / Loss Prevention
Material	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUS316L	SUS316L	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium	SUSXM7 (Equivalent to SUS304)
Surface Treatment	-	-	-	-	-	Special Chemical Polishing	-	Special Chemical Polishing	-
Thread Size	M2 ～ M10	M2 ～ M8	No.4-40UNC ～ 5/16-18UNC	M2 ～ M8	M2 ～ M8	M3 ～ M6	M3 ～ M6	M3 ～ M5	M3 ～ M8
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SVSS-M10-SD SVSS-M2.5-SD SVSS-M2-SD SVSS-M3-SD SVSS-M4-SD SVSS-M5-SD SVSS-M6-SD SVSS-M8-SD	SNSS-M2.5-SD-ALK SNSS-M2-SD-ALK SNSS-M3-SD-ALK SNSS-M4-SD-ALK SNSS-M5-SD-ALK SNSS-M6-SD-ALK SNSS-M8-SD-ALK	SNSS-#10-24-SD SNSS-#10-32-SD SNSS-#4-40-SD SNSS-#6-32-SD SNSS-#8-32-SD SNSS-1/4-20-SD SNSS-5/16-18-SD	SNSL-M2.5-SD SNSL-M2-SD SNSL-M3-SD SNSL-M4-SD SNSL-M5-SD SNSL-M6-SD SNSL-M8-SD	SVSL-M2-SD SVSL-M3-SD SVSL-M4-SD SVSL-M5-SD SVSL-M6-SD SVSL-M8-SD	SNST-M3-SD SNST-M4-SD SNST-M5-SD SNST-M6-SD	SNST-M3-SD-UT SNST-M4-SD-UT SNST-M5-SD-UT SNST-M6-SD-UT	SVST-M3-SD SVST-M4-SD SVST-M5-SD	SSC-M3-SD SSC-M4-SD SSC-M5-SD SSC-M6-SD SSC-M8-SD

Part Name	Socket Head Cap Screws with Low Profile & Small Head	Socket Head Cap Screws with Low Profile & Small Head	Socket Head Cap Screws with Low Profile & Small Head	Socket Head Cap Screws with Ultra Low Profile & Small Head	Socket Head Cap Screws with Ultra Low Profile & Small Head	Socket Head Cap Screws with Ultra Low Profile & Small Head and Nylon Patch	Socket Head Cap Screws with Ultra Low Profile & Small Head	Socket Head Cap Screws with Ultra Low Profile & Small Head - Fluorine Coating	Socket Head Cap Screws with Ultra Low Profile & Small Head - MoS₂ Coating
Part Number	SLH-SD	SLH-SD-EL	SLHS-SD	SSH-SD	SSH-SD-EL	SSH-SD-EL-ALK	SSHS-SD	SSHS-SD-FC	SSHS-SD-MO
Feature	Low ProfileSmall Head Small Space	Low ProfileSmall Head Small Space	Low ProfileSmall Head Small Space	Special Low ProfileSmall Head Small Space	Special Low ProfileSmall Head Small Space	Special Low Profile Small Head Space-Saving Nylon Patch	Special Low ProfileSmall Head Small Space	Special Low Profile Small Head Space-saving Seizing Prevention	Special Low Profile Small Head Space-saving Seizing Prevention
Material	Steel	Steel	SUSXM7 (Equivalent to SUS304)	Steel	Steel	Steel	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)
Surface Treatment	Ferrosoferric Oxide Film (Black)	Electroless nickel plating	-	Ferrosoferric Oxide Film (Black)	Electroless nickel plating	Electroless nickel plating	-	Fluorine coating	Molybdenum disulfide coating
Thread Size	M3 ～ M10	M3 ～ M10	M3 ～ M10	M3 ～ M10	M3 ～ M10	M3 ～ M8	M2 ～ M10	M3 ～ M10	M3 ～ M10
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SLH-M10-SD SLH-M3-SD SLH-M4-SD SLH-M5-SD SLH-M6-SD SLH-M8-SD	SLH-M10-SD-EL SLH-M3-SD-EL SLH-M4-SD-EL SLH-M5-SD-EL SLH-M6-SD-EL SLH-M8-SD-EL	SLHS-M10-SD SLHS-M3-SD SLHS-M4-SD SLHS-M5-SD SLHS-M6-SD SLHS-M8-SD	SSH-M10-SD SSH-M3-SD SSH-M4-SD SSH-M5-SD SSH-M6-SD SSH-M8-SD	SSH-M10-SD-EL SSH-M3-SD-EL SSH-M4-SD-EL SSH-M5-SD-EL SSH-M6-SD-EL SSH-M8-SD-EL	SSH-M3-SD-EL-ALK SSH-M4-SD-EL-ALK SSH-M5-SD-EL-ALK SSH-M6-SD-EL-ALK SSH-M8-SD-EL-ALK	SSHS-M10-SD SSHS-M2.5-SD SSHS-M2-SD SSHS-M3-SD SSHS-M4-SD SSHS-M5-SD SSHS-M6-SD SSHS-M8-SD	SSHS-M10-SD-FC SSHS-M3-SD-FC SSHS-M4-SD-FC SSHS-M5-SD-FC SSHS-M6-SD-FC SSHS-M8-SD-FC	SSHS-M10-SD-MO SSHS-M3-SD-MO SSHS-M4-SD-MO SSHS-M5-SD-MO SSHS-M6-SD-MO SSHS-M8-SD-MO

Part Name	Vented Socket Head Cap Screws with Ultra Low Profile & Small Head	Socket Head Cap Screws with Ultra Low Profile & Small Head and Nylon Patch	Socket Head Cap Captive Screws with Ultra Low Small Head	Socket Head Cap Screws with Ultra Low Profile & Small Head - 316L Stainless Steel	Vented Socket Head Cap Screws with Ultra Low Profile & Small Head - 316L Stainless Steel	Socket Head Cap Screws with Ultra Low Small Head - Titanium	Socket Head Cap Screws with Ultra Low Small Head - Titanium	Vented Socket Head Cap Screws with Ultra Low Profile & Small Head - Titanium	Phillips Flat Head Screws for Sheet Metal
Part Number	SVSHS-SD	SSHS-SD-ALK	SSCHS-SD	SSHL-SD	SVSHL-SD	SSHT-SD	SSHT-SD-UT	SVSHT-SD	SNF-TBZ-SUC
Feature	Special Low Profile Small Head Space-saving	Special Low Profile Small Head Space-Saving Nylon Patch	Ultra Low Small Head Space-saving Captive / Loss Prevention	Special Low Profile Small Head Space-saving Non-magnetic	Special Low Profile Small Head Space-saving Non-magnetic	Special Low Profile Space-saving Lightweight Non-magnetic Chemical Resistance Small Head	Special Low Profile Space-saving Lightweight Non-magnetic Chemical Resistance Small Head	Special Low Profile Small Head Space-saving Lightweight Non-magnetic Chemical Resistance Lightweight	Low Profile Space-Saving For Sheet Metal
Material	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUS316L	SUS316L	Grade 2 Titanium	Grade 2 Titanium	Grade 2 Titanium	Steel
Surface Treatment	-	-	-	-	-	Special Chemical Polishing	-	Special Chemical Polishing	Black Trivalent Chromate Treatment
Thread Size	M3 ～ M6	M2 ～ M8	M3 ～ M8	M3 ～ M5	M3 ～ M5	M3 ～ M6	M3 ～ M6	M3 ～ M6	M3 ～ M6
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SVSHS-M3-SD SVSHS-M4-SD SVSHS-M5-SD SVSHS-M6-SD	SSHS-M2.5-SD-ALK SSHS-M2-SD-ALK SSHS-M3-SD-ALK SSHS-M4-SD-ALK SSHS-M5-SD-ALK SSHS-M6-SD-ALK SSHS-M8-SD-ALK	SSCHS-M3-SD SSCHS-M4-SD SSCHS-M5-SD SSCHS-M6-SD SSCHS-M8-SD	SSHL-M3-SD SSHL-M4-SD SSHL-M5-SD	SVSHL-M3-SD SVSHL-M4-SD SVSHL-M5-SD	SSHT-M3-SD SSHT-M4-SD SSHT-M5-SD SSHT-M6-SD	SSHT-M3-SD-UT SSHT-M4-SD-UT SSHT-M5-SD-UT SSHT-M6-SD-UT	SVSHT-M3-SD SVSHT-M4-SD SVSHT-M5-SD SVSHT-M6-SD	SNF-M3-TBZ-SUC SNF-M4-TBZ-SUC SNF-M5-TBZ-SUC SNF-M6-TBZ-SUC

Part Name	Phillips Flat Head Screws for Sheet Metal	Cross Recessed Flat Head Machine Screws with Small Head	Cross Recessed Flat Head Machine Screws with Small Head	Cross Recessed Head Cap Screws with Extra Low Profile	Cross Recessed Head Cap Screws with Super Ultra Low Profile	Cross Recessed Head Cap Screws with Super Ultra Low Profile - Stainless Steel	Bits for Cross Recessed Head Cap Screws with Extra Low Profile	Truss Head Phillips Screws for Sheet Metal	Socket Button Head Cap Screws with Flange
Part Number	SNFS-SUC	SNF-SD-TZB	SNFS-SD	SEQ-TBZ	SEQ-TZB	SEQS	SKQB	SNMS-UC	SFB
Feature	Low Profile Space-Saving For Sheet Metal	Low ProfileSmall Head Small Space	Low ProfileSmall Head Small Space	Extreme Low Profile Small Space	Extreme Low Profile Small Space	Extra Low Profile Space-saving	Dedicated Screwdrivers for SEQ	Truss Head Screws Space-Saving For Sheet Metal (Plate Thickness 0.1mm or More)	With Flange Small Space
Material	SUSXM7 (Equivalent to SUS304)	Steel	SUSXM7 (Equivalent to SUS304)	Steel	Steel	SUSXM7 (Equivalent to SUS304)	-	SUSXM7 (Equivalent to SUS304)	Steel
Surface Treatment	-	Trivalent chromate treatment	-	Black Trivalent Chromate Treatment	Trivalent chromate treatment	-	-	-	Ferrosoferric Oxide Film (Black)
Thread Size	M3 ～ M6	M3 ～ M5	M4 ～ M6	M3 ～ M4	M3 ～ M4	M3 ～ M4	-	M3 ～ M6	M3 ～ M8
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SNFS-M3-SUC SNFS-M4-SUC SNFS-M5-SUC SNFS-M6-SUC	SNF-M3-SD-TZB SNF-M4-SD-TZB SNF-M5-SD-TZB	SNFS-M4-SD SNFS-M5-SD SNFS-M6-SD	SEQ-M3-TBZ SEQ-M4-TBZ	SEQ-M3-TZB SEQ-M4-TZB	SEQS-M3 SEQS-M4	SKQB-1 SKQB-2	SNMS-M3-UC SNMS-M4-UC SNMS-M5-UC SNMS-M6-UC	SFB-M3 SFB-M4 SFB-M5 SFB-M6 SFB-M8

Part Name	Socket Button Head Cap Screws with Flange - Electroless Nickel Plating	Socket Button Head Cap Screws with Flange	Socket Button Head Cap Screws with Flange for Sheet Metal	Tamper Resistant Cap Screws with Ultra Low Profile	Socket Head Cap Screws with Low Profile with Pilot Recess	Plastic screw - Hex Socket Low Head Bolt - RENY	Plastic screw - Hex Socket Low Head Bolt - PEEK	Plastic Screws - Socket Head Cap Screws with Low Profile - PPS	Plastic Screws - Hexalobular Socket Head Cap Screw with Low Head - PEEK
Part Number	SFB-EL	SFBS	SFBS-UC	SRSHS	SLP	SPA-LC	SPE-LC	SPS-LC	SPE-LH
Feature	With Flange Small Space	With Flange Small Space	Flanged Space-Saving For Sheet Metal (Plate Thickness 0.1mm or More)	Tamper-resistant screw with special low Profile height	Pilot Recess Low Profile Small Space	High Strength High Specific Strength Low Profile Space Saving	Heat Resistance Chemical Resistance Low Profile　Small Head	High Specific Strength Heat Resistance Chemical Resistance Low Profile　Small Head	Heat Resistance Chemical Resistance Low Profile Space Saving
Material	Steel	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	SUSXM7 (Equivalent to SUS304)	Steel	RENY	PEEK	PPS	PEEK
Surface Treatment	Electroless nickel plating	-	-	-	Ferrosoferric Oxide Film (Black)	-	-	-	-
Thread Size	M3 ～ M8	M3 ～ M6	M3 ～ M6	M2 ～ M4	M4 ～ M8	M3 ～ M6	M3 ～ M6	M3 ～ M6	M3 ～ M6
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SFB-M3-EL SFB-M4-EL SFB-M5-EL SFB-M6-EL SFB-M8-EL	SFBS-M3 SFBS-M4 SFBS-M5 SFBS-M6	SFBS-M3-UC SFBS-M4-UC SFBS-M5-UC SFBS-M6-UC	SRSHS-M2 SRSHS-M2.5 SRSHS-M3 SRSHS-M4	SLP-M4 SLP-M5 SLP-M6 SLP-M8	SPA-M3-LC SPA-M4-LC SPA-M5-LC SPA-M6-LC	SPE-M3-LC SPE-M4-LC SPE-M5-LC SPE-M6-LC	SPS-M3-LC SPS-M4-LC SPS-M5-LC SPS-M6-LC	SPE-M3-LH SPE-M4-LH SPE-M5-LH SPE-M6-LH

Part Name	Plastic Screws - Hexalobular Socket Head Cap Screw with Ultra Low Head - PEEK	Plastic Screws - Hexalobular Socket Head Cap Screws with Low Profile - PPS	Plastic Screws - Hexalobular Socket Head Cap Screws with Ultra Low Profile - PPS	Plastic Screws - Hexalobular Socket Head Cap Screw with Low Profile - RENY	Plastic Screws - Hexalobular Socket Head Cap Screw with Ultra Low Head - RENY	SLP Specialty Keys	Hexalobular wrenches for extremely limited access spaces	Low profile screwdrivers for extremely limited access spaces	Low profile screwdrivers for extremely limited access spaces
Part Number	SPE-SH	SPS-LH	SPS-SH	SPA-LH	SPA-SH	SKP	SKX-N	SKND	SKND-PH
Feature	Heat Resistance Chemical Resistance Low Profile Space Saving	High Specific Strength Heat Resistance Chemical Resistance Low Profile Space Saving	High Specific Strength Heat Resistance Chemical Resistance Low Profile Space Saving	High Strength High Specific Strength Low Profile Space Saving	High Strength High Specific Strength Low Profile Space Saving	Special keys for SLP	Tools for Extremely Limited Access Spaces For Hexalobular Head Socket Screws	Tools for Extremely Limited Access Spaces For Hex Sockets	Tools for Extremely Limited Access Spaces For Cross-Recessed Sockets
Material	PEEK	PPS	PPS	RENY	RENY	-	-	-	-
Surface Treatment	-	-	-	-	-	Ferrosoferric Oxide Film (Black)	Electroless nickel plating	Electroless nickel plating	Electroless nickel plating
Thread Size	M3 ～ M6	M3 ～ M6	M3 ～ M6	M3 ～ M6	M3 ～ M6	-	-	-	-
Operating Temperature (℃)	-	-	-	-	-	-	-	-	-
CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD	CAD
Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications	Specifications
List	SPE-M3-SH SPE-M4-SH SPE-M5-SH SPE-M6-SH	SPS-M3-LH SPS-M4-LH SPS-M5-LH SPS-M6-LH	SPS-M3-SH SPS-M4-SH SPS-M5-SH SPS-M6-SH	SPA-M3-LH SPA-M4-LH SPA-M5-LH SPA-M6-LH	SPA-M3-SH SPA-M4-SH SPA-M5-SH SPA-M6-SH	SKP-3 SKP-4 SKP-5 SKP-6	SKX-10N SKX-15N SKX-20N SKX-25N SKX-4N SKX-5N SKX-6N SKX-8N	SKND-2.5 SKND-3 SKND-4 SKND-5	SKND-PH0 SKND-PH1 SKND-PH2

Part Name	Low profile screwdrivers for extremely limited access spaces
Part Number	SKND-SLOT
Feature	Tools for Extremely Limited Access Spaces For Slotted Grooves
Material	-
Surface Treatment	Electroless nickel plating
Thread Size	-
Operating Temperature (℃)	-
CAD	CAD
Specifications	Specifications
List	SKND-SLOT6
